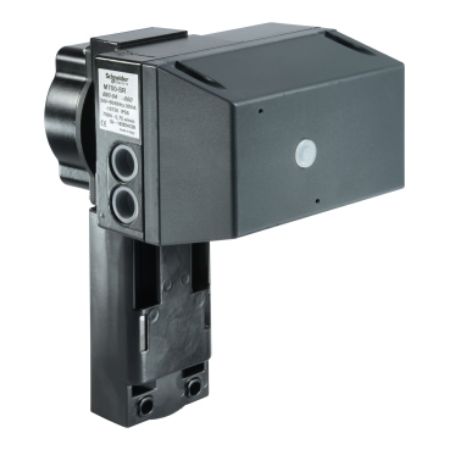

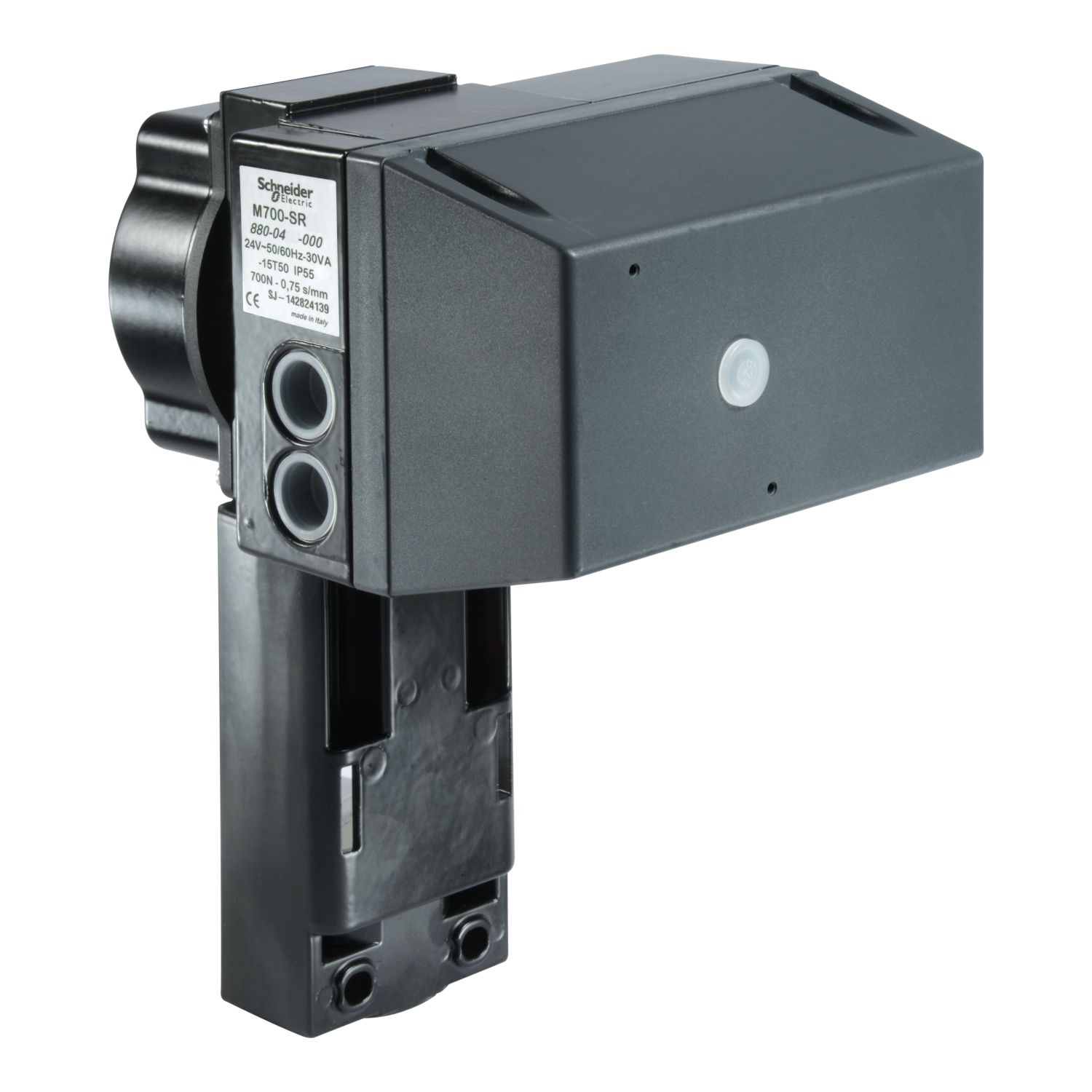

Picture of SpaceLogic M700-S2-SRSD Actuator for Globe Valves, Multi-Signal Control, Spring Return, 24Vac/dc, Terminal Block, 700N, 2 SPDT Aux Relay, IP54
SKU:

8800441000

SpaceLogic M700-S2-SRSD Actuator for Globe Valves, Multi-Signal Control, Spring Return, 24Vac/dc, Terminal Block, 700N, 2 SPDT Aux Relay, IP54

Please Contact Sales to buy this Product. click here
SpaceLogic M700-S2-SRSD Actuator for Globe Valves, Multi-Signal Control, Spring Return, 24Vac/dc, Terminal Block, 700N, 2 SPDT Aux Relay, IP54
  • Field selectable configuration
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) fitted as standard
  • Spring Return Stem Down Function
  • Zero point check upon power interruption
  • Replaceable circuit board
  • High resolution / positional accuracy
  • one touch stroke calibration
  • Selectable input signals: ..1 Vdc, 2..1 Vdc, ..5 Vdc, 2-6 Vdc, 5-1 Vdc, 6-1 Vdc
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 12-Oct-2024
Declaration of conformity
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
The SpaceLogic M7 is a spring return eectromechanical actuator for the control of two-way and three-way globe valves in. The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question. The actuators is easy to mount and connect. Modulating control signal or increase/decrease signal, Stem Down spring action (the stem is pulled up when power off) and end point switches. Supply voltage: 24 Vax +25% / -3%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 7 N, IP 54 Protection class. Stroke: 9-52 mm When an end position adjustment is made, Forta closes the valve and opens it fully.

Products specifications

Attribute nameAttribute value
Main
Force N700 N
Switch function2 SPDT
IP degree of protectionIP54
Relative humidity0-90 %
Ambient air temperature for storage-10-50 °C
[Us] rated supply voltage24 V AC/DC
Electrical insulation classclass II
Product destinationglobe valve
Stroke running time noload retract95 s
Control typeautomatic reset
Transformer rated power in VA50 VA
Stroke length9-52 mm
Analogue input range0...10 V DC
Ambient air temperature for operation-10-50 °C
Hold-in power consumption in VA30-30 VA AC
Stroke running time15 s
Motor typebrushless DC motor
Duty cycle20 %
Product or component typeactuator
Power consumption in VA30 VA AC
Targeted regionAustralia., Asia Pacific., Europe
Force lbf157 lbf
Actuatorlinear
Actuator modelM700
Control signalproportional/modulating, floating
Conduit connection2 x 20 mm conduit hole
Leads and connectionsterminal block
Actuator typeelectric
Actuator product rangeSpaceLogic
Actuator product seriesM700
Power loss returnspring return
Feedback signal2...10 V DC
Stroke auto calibrationTrue
Position indicatorStroke indicator on yoke
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height21.0 cm
Package 1 Width21.0 cm
Package 1 Length29.0 cm
Package 1 Weight4.83 kg
