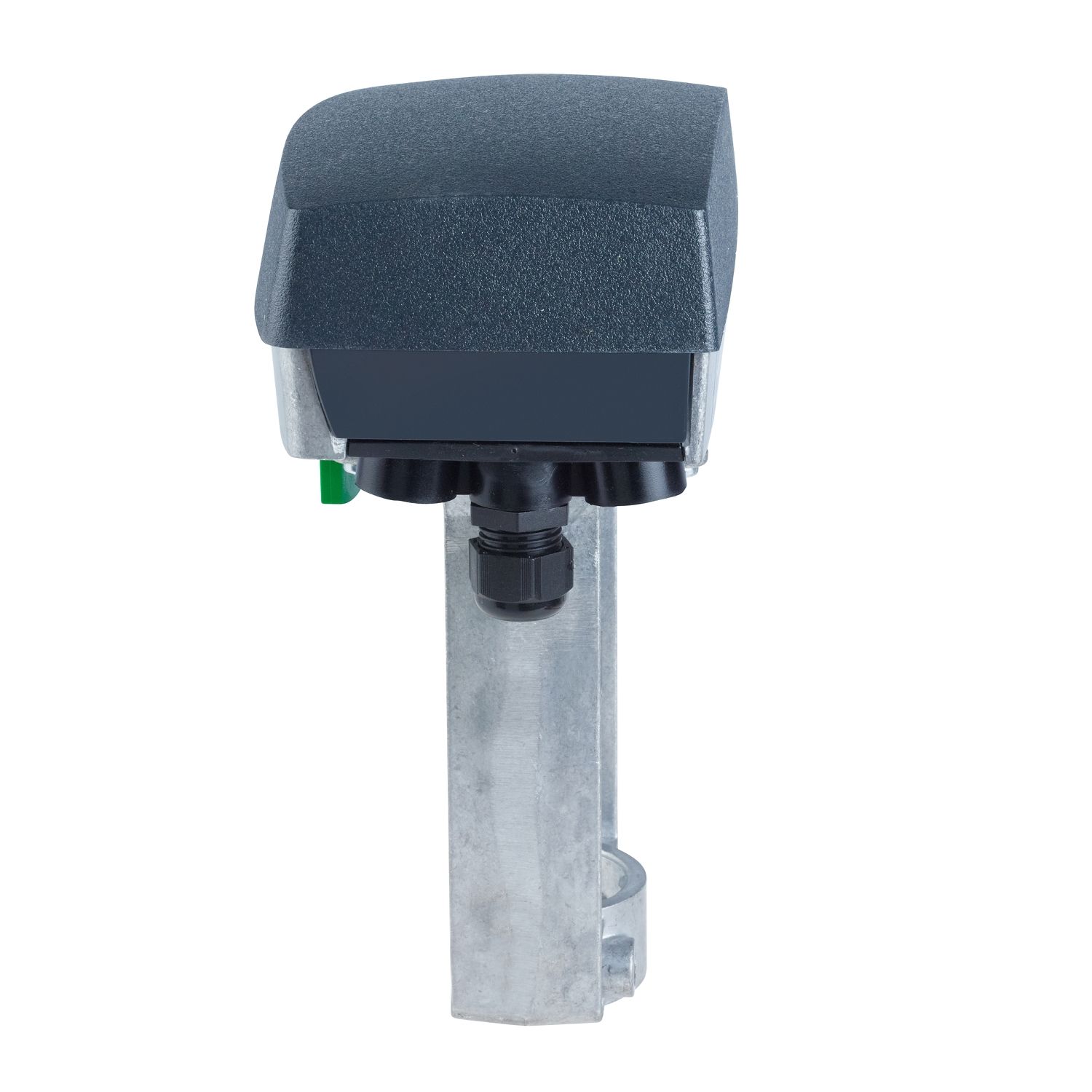

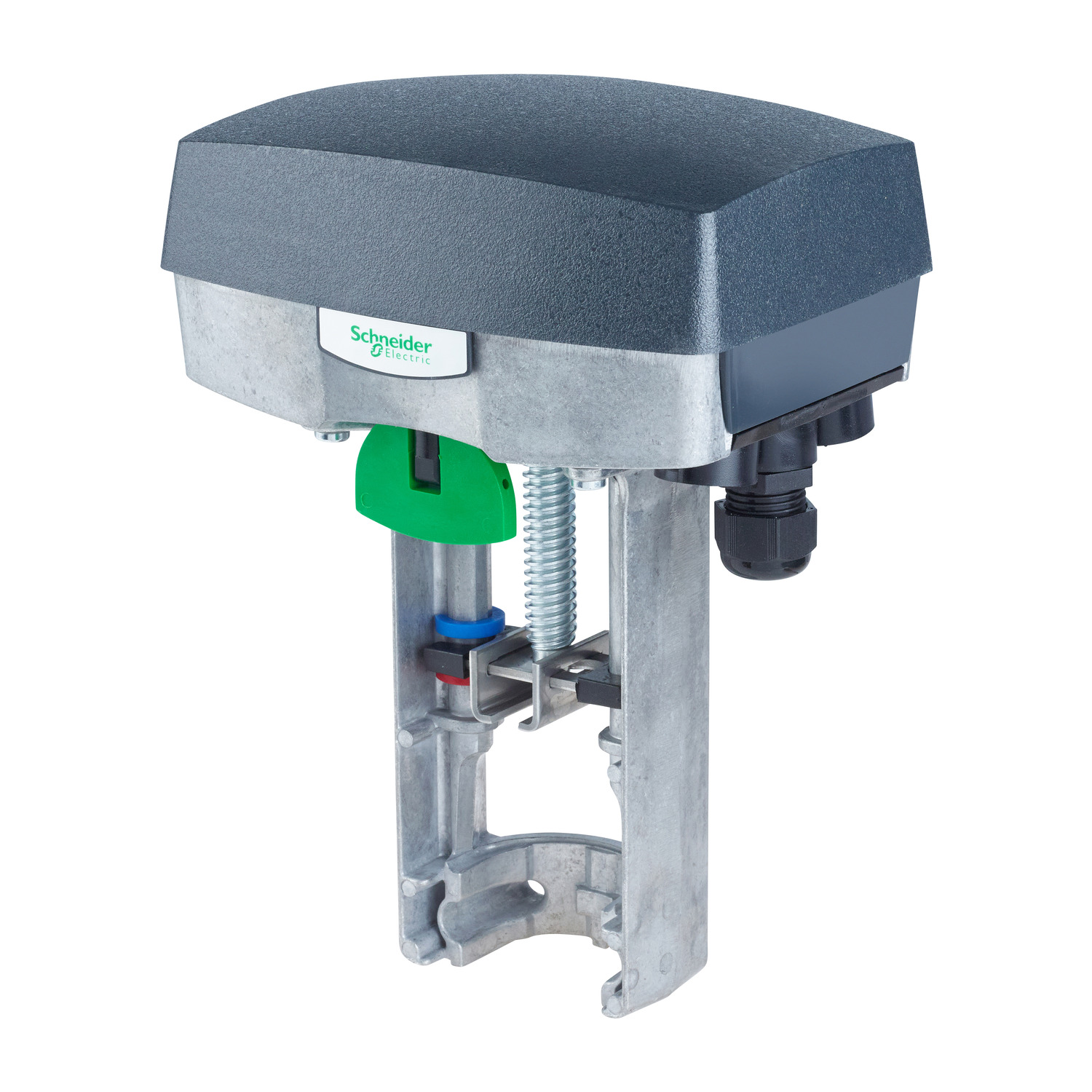

SpaceLogic M1500-S2 Actuator for Globe Valves, Multi-Signal Control, 24Vac/dc, Terminal Block Electrical Connection, 1500N, IP54, 2 SPDT Aux Relay

Please contact our sales team to buy on 1300 724 622 or click here
Available for Shipping : 28-Nov-2024

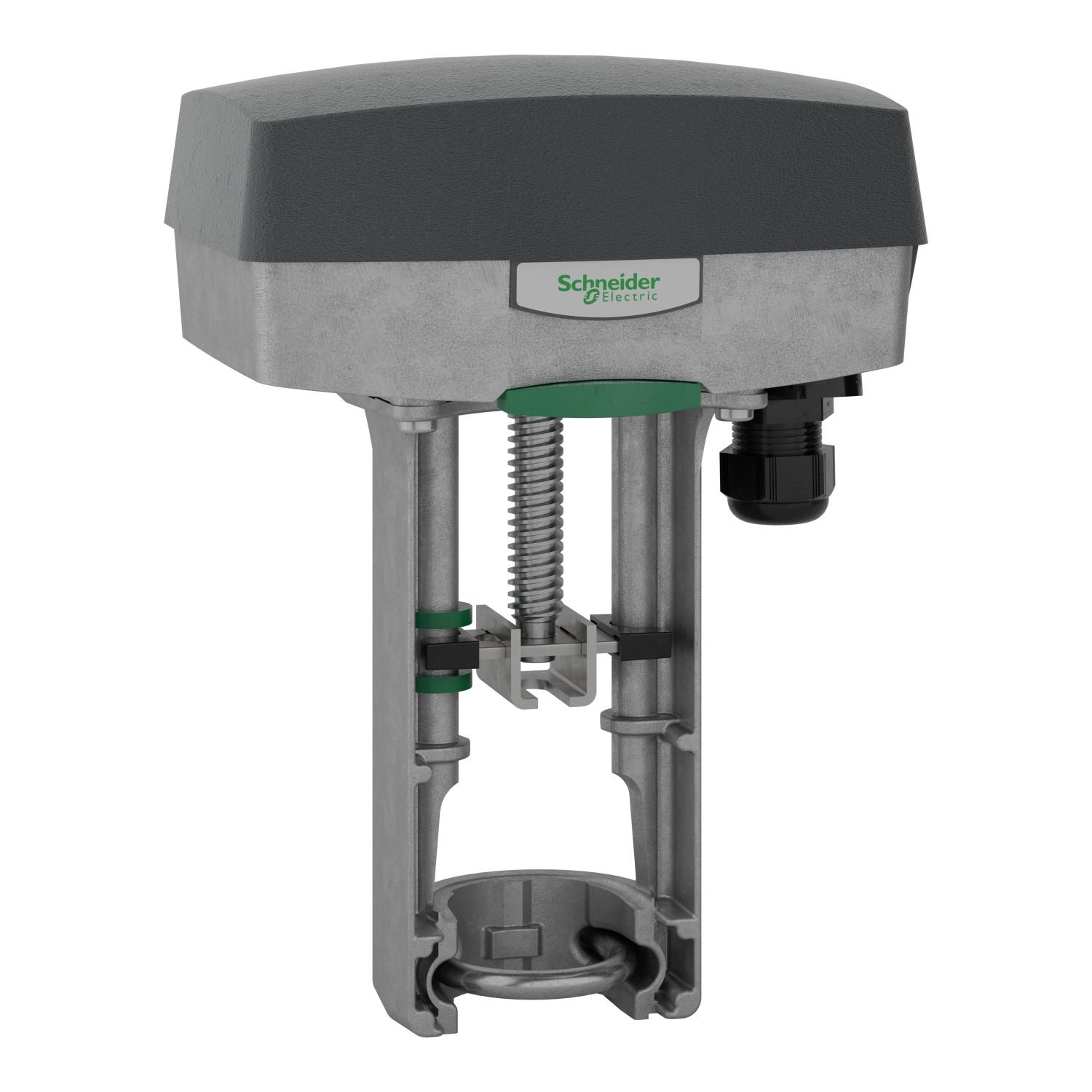

SpaceLogic M1500-S2 Actuator for Globe Valves, Multi-Signal Control, 24Vac/dc, Terminal Block Electrical Connection, 1500N, IP54, 2 SPDT Aux Relay
  • Field selectable configuration
  • 2-10V position feedback as standard
  • Aux end switch relays (2 x SPDT) fitted as standard
  • Manual override operation automatically cuts power to the PCBA
  • Zero point check upon power interruption
  • Replaceable circuit board
  • High resolution / positional accuracy
  • one touch stroke calibration
  • Selectable input signals: ..1 Vdc, 2..1 Vdc, ..5 Vdc, 2-6 Vdc, 5-1 Vdc, 6-1 Vdc
  • Flow curve adaptation from EQ to Linear
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
The SpaceLogic M1500 is a precise electro-mechanical actuator for the control of large 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25% / -35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 15 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 214/3/EU, LVD 214/35/EU. Conduit connection 3 x M2 screwed.

Products specifications

Attribute name Attribute value
Main
Force N 1500 N
Switch function 2 SPDT
IP degree of protection IP54
Relative humidity 0-90 %
Ambient air temperature for storage -10-50 °C
[Us] rated supply voltage 24 V AC/DC
Electrical insulation class class II
Product destination globe valve
Control type automatic reset
Transformer rated power in VA 50 VA
Stroke length 9-52 mm
Analogue input range 0...10 V DC
Ambient air temperature for operation -10-50 °C
Hold-in power consumption in VA 15-15 VA AC
Stroke running time 80 s
Motor type brushless DC motor
Duty cycle 20 %
Product or component type actuator
Power consumption in VA 15 VA AC
Targeted region Australia., Asia Pacific., Europe
Force lbf 337 lbf
Actuator linear
Actuator model M1500
Control signal proportional/modulating, floating
Conduit connection gland for 6-9 mm O/D cable, 3 x M20
Leads and connections terminal block
Actuator type electric
Actuator product range SpaceLogic
Actuator product series M1500
Power loss return non-spring return
Feedback signal 2...10 V DC
Stroke auto calibration True
Position indicator Stroke indicator on yoke
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.8 cm
Package 1 Width 13.4 cm
Package 1 Length 25.5 cm
Package 1 Weight 1.923 kg
