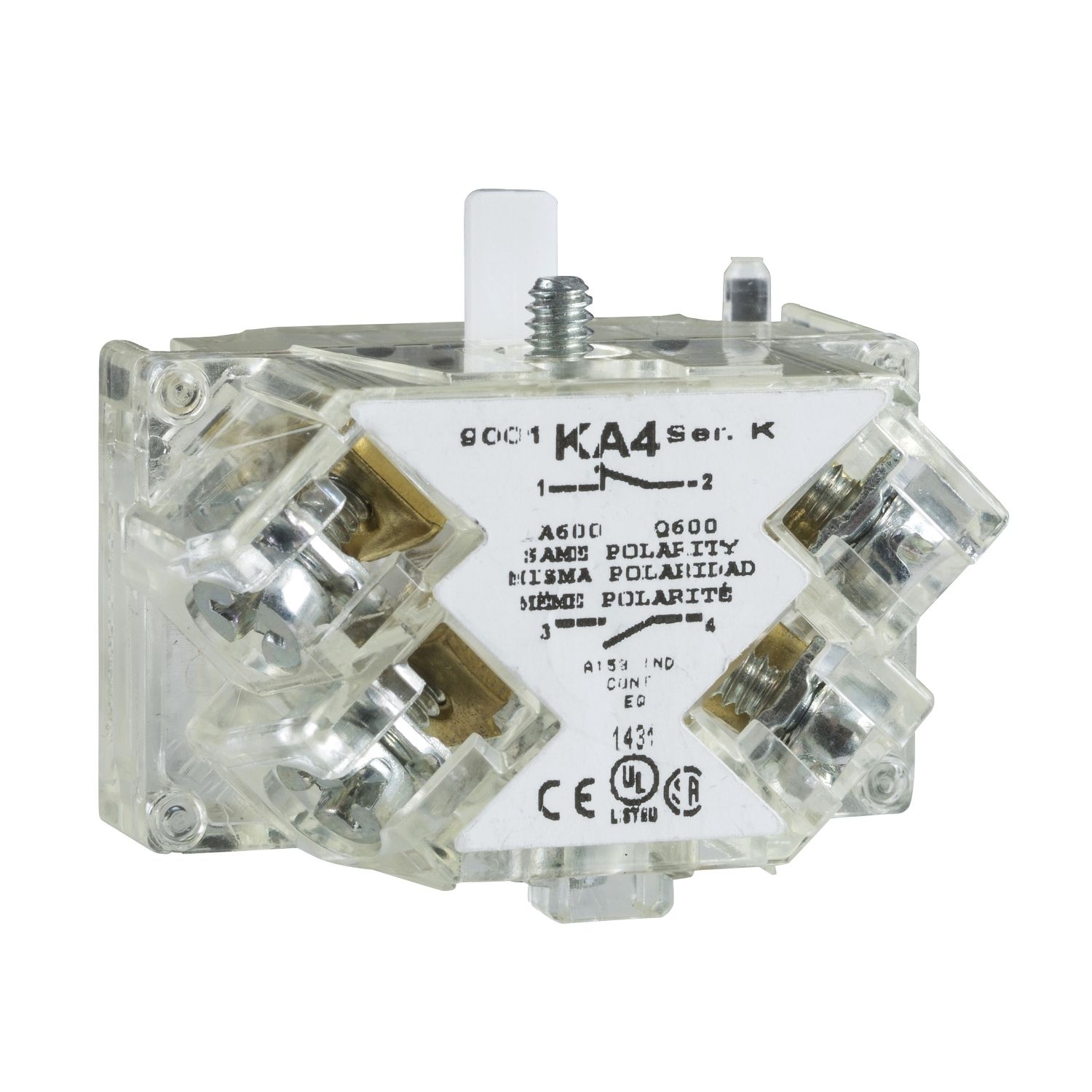

Picture of Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO
SKU:

9001KA4

Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

$58.91
Available for Shipping : 06-Jan-2025
Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO
Be the first to review this product
Manufacturer: Square D
Catalogue
Product environmental
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x C/O contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features late-break contact operation. Its protection index is IP20, protecting operators from unexpected contact with live circuits. It weighs 27g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Range of product Harmony 9001SK, Harmony 9001K
Product or component type contact block
Complementary
Shape of screw head cross slotted
Tightening torque 0.8-0.8 N.m conforming to IEC 60947-1
Compatibility code 9001K
Contact operation early make
[Ie] rated operational current 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
Rated breaking capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
Contacts material silver alloy contacts
[Us] rated supply voltage 0...600 V
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 NO
[Icm] rated short-circuit making capacity 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 0.55 kA at 125 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Net weight 0.027 kg
[Ith] conventional free air thermal current 10 A
Positive opening without
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
Terminals description ISO n°1 (1-2-3-4)OC_OFF
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards UL 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C 852, JIS C 4520
Product certifications NEMA, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.54 cm
Package 1 Width 2.54 cm
Package 1 Length 4.064 cm
Package 1 Weight 27.216 g
