9001KA41

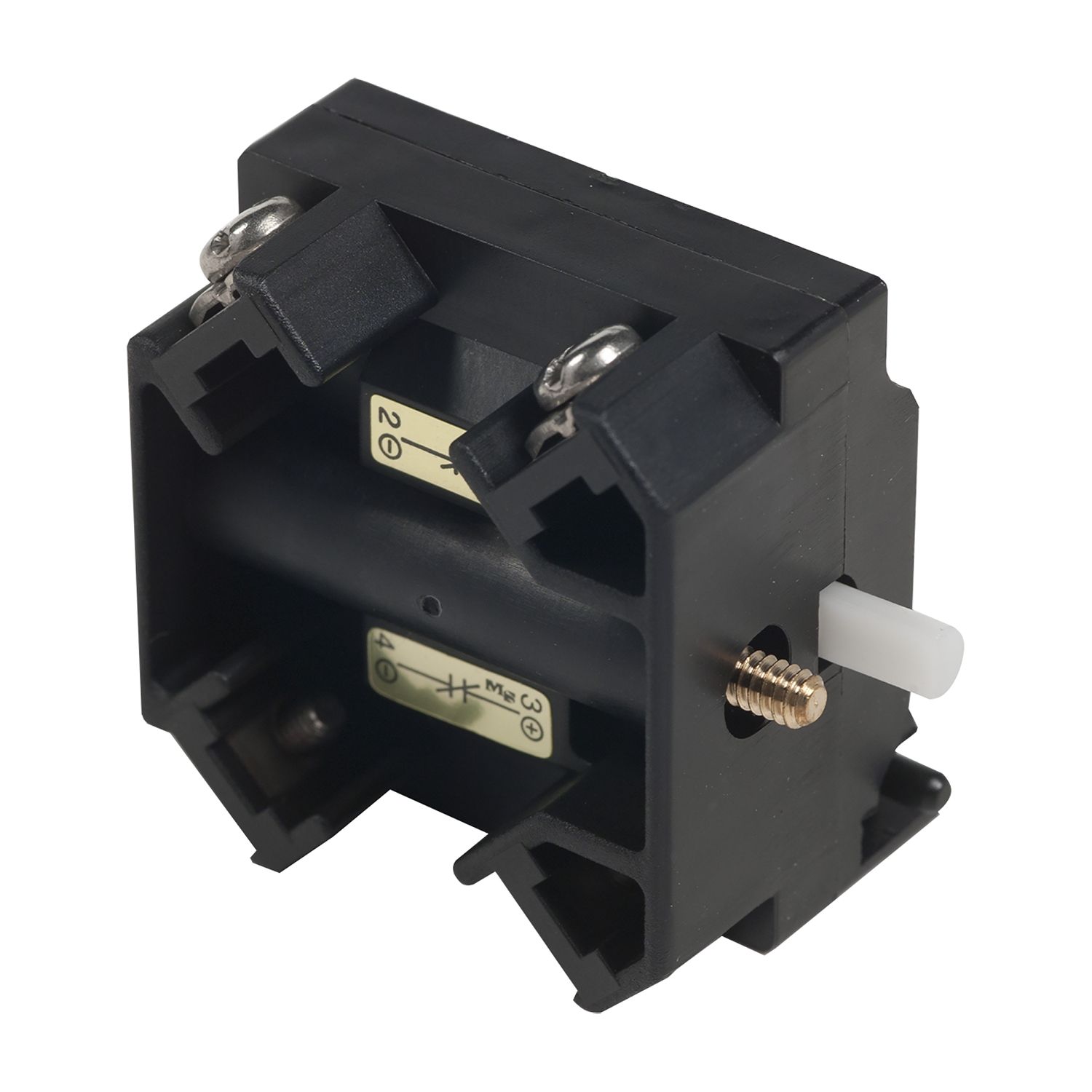

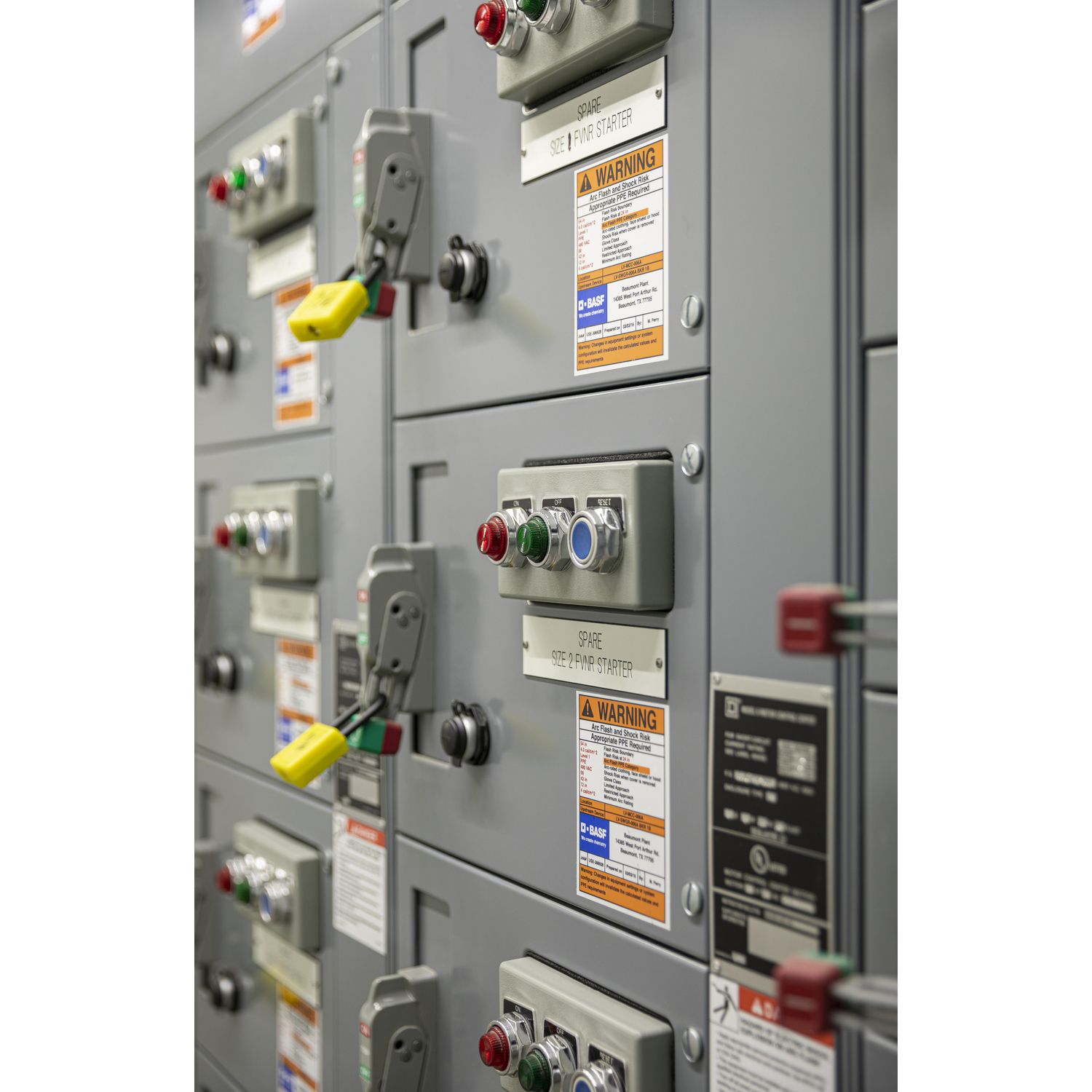

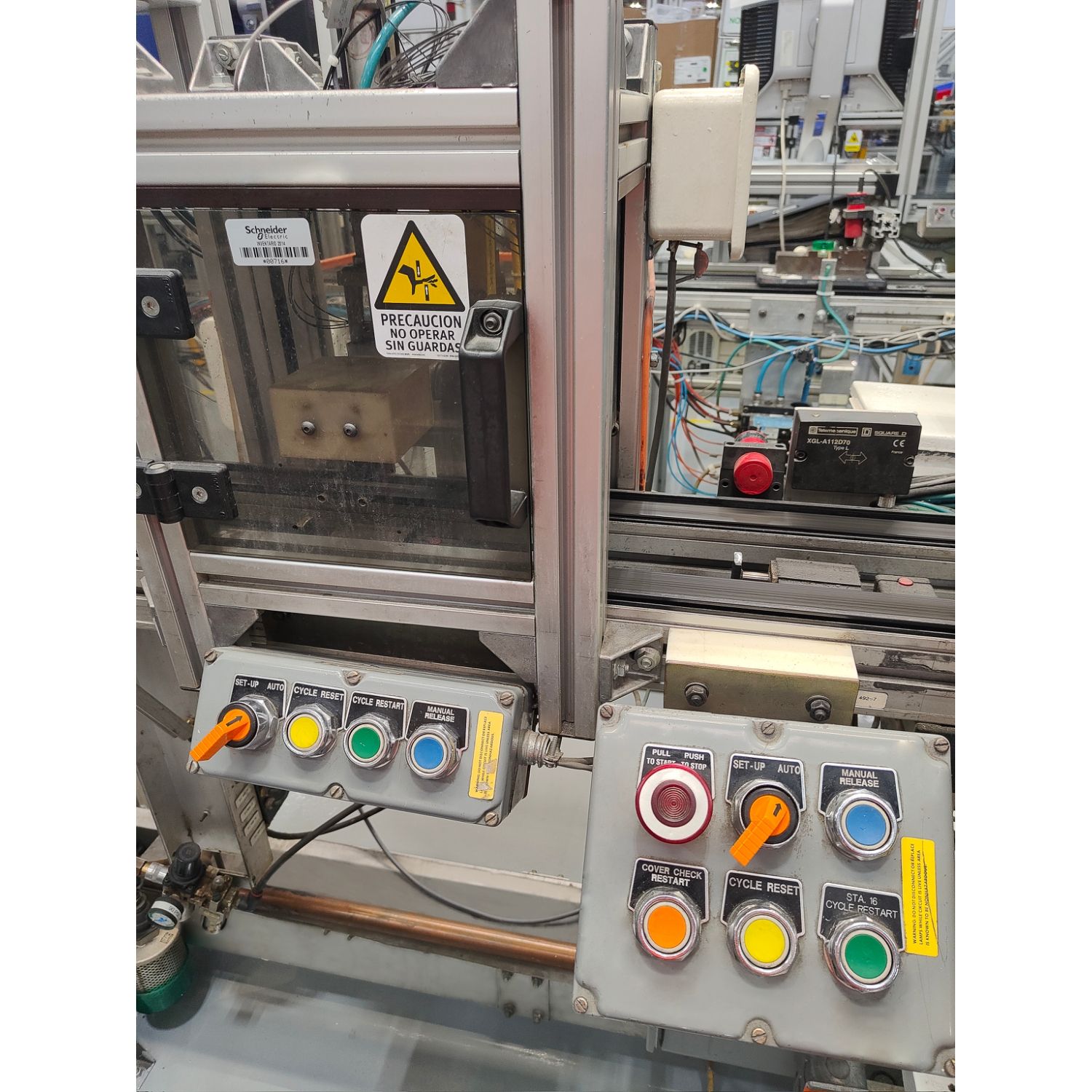

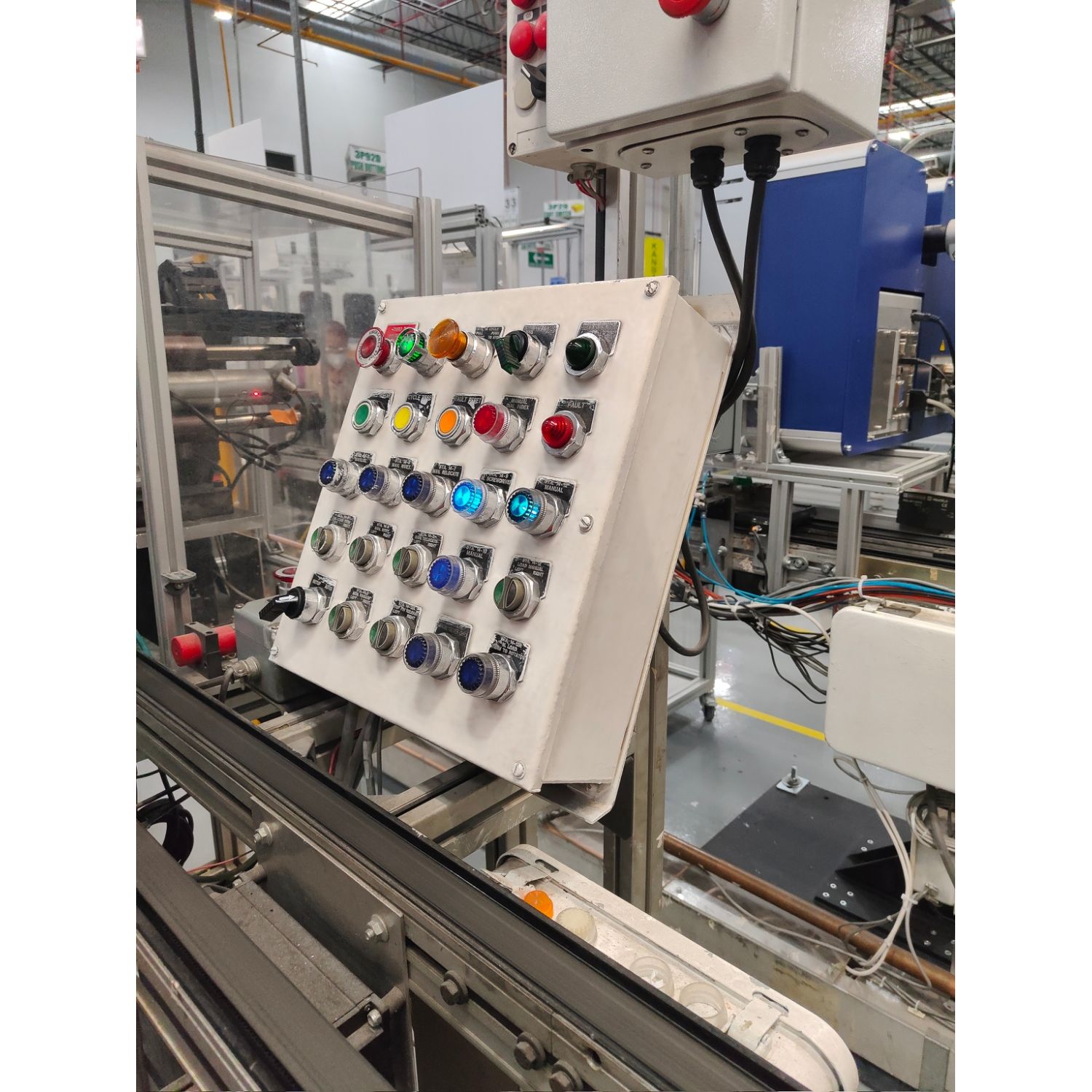

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

$83.15
Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO
Be the first to review this product
Manufacturer: Square D
Availability: Please contact our sales team on 1300 724 622.
CAD
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001K, hermetically sealed contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute nameAttribute value
Main
Device short name9001K
Product or component typecontact block
Range of productHarmony 9001SK, Harmony 9001K
Complementary
Shape of screw headcross slotted
Tightening torque0.8-0.8 N.m conforming to IEC 60947-1
Compatibility code9001K
Contact operationhermetically sealed, logic reed
[Ie] rated operational current0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
[Ui] rated insulation voltage250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition1 C/O
[Icm] rated short-circuit making capacity0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 0.55 kA at 125 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Connections - terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals
[Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
Net weight0.045 kg
Rated breaking capacity0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current10 A
Positive openingwithout
Short-circuit protection10 A cartridge fuse conforming to IEC 60947-5-1
Contacts usagehermetically sealed contacts
[Us] rated supply voltage120 V
Environment
Protective treatmentTC
Electrical shock protection classclass II conforming to IEC 61140
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP20 conforming to IEC 60529
Vibration resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn conforming to IEC 60068-2-27
StandardsUL 60947-5-1, IEC 60947-1, IEC 60947-5-1, JIS C 852, JIS C 4520, UL 508, IEC 60947-5-4, CSA C22.2 No 14
Ambient air temperature for operation-25-70 °C
Product certificationsNEMA, UL 508
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.8 cm
Package 1 Width4.3 cm
Package 1 Length4.8 cm
Package 1 Weight45.4 g
Unit Type of Package 22
Number of Units in Package 211
Package 2 Height15.0 cm
Package 2 Width15.0 cm
Package 2 Length40.0 cm
Package 2 Weight742.0 g
