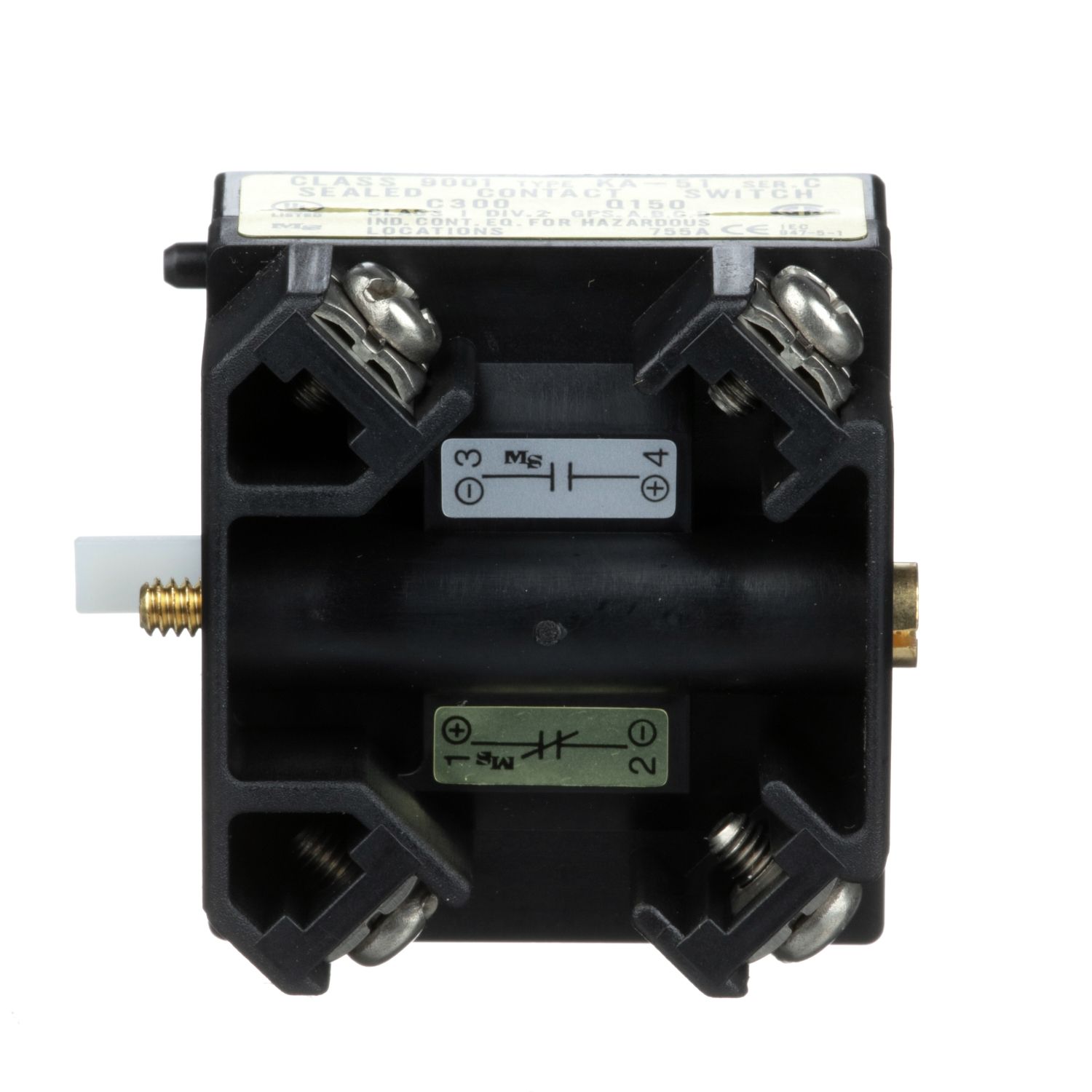

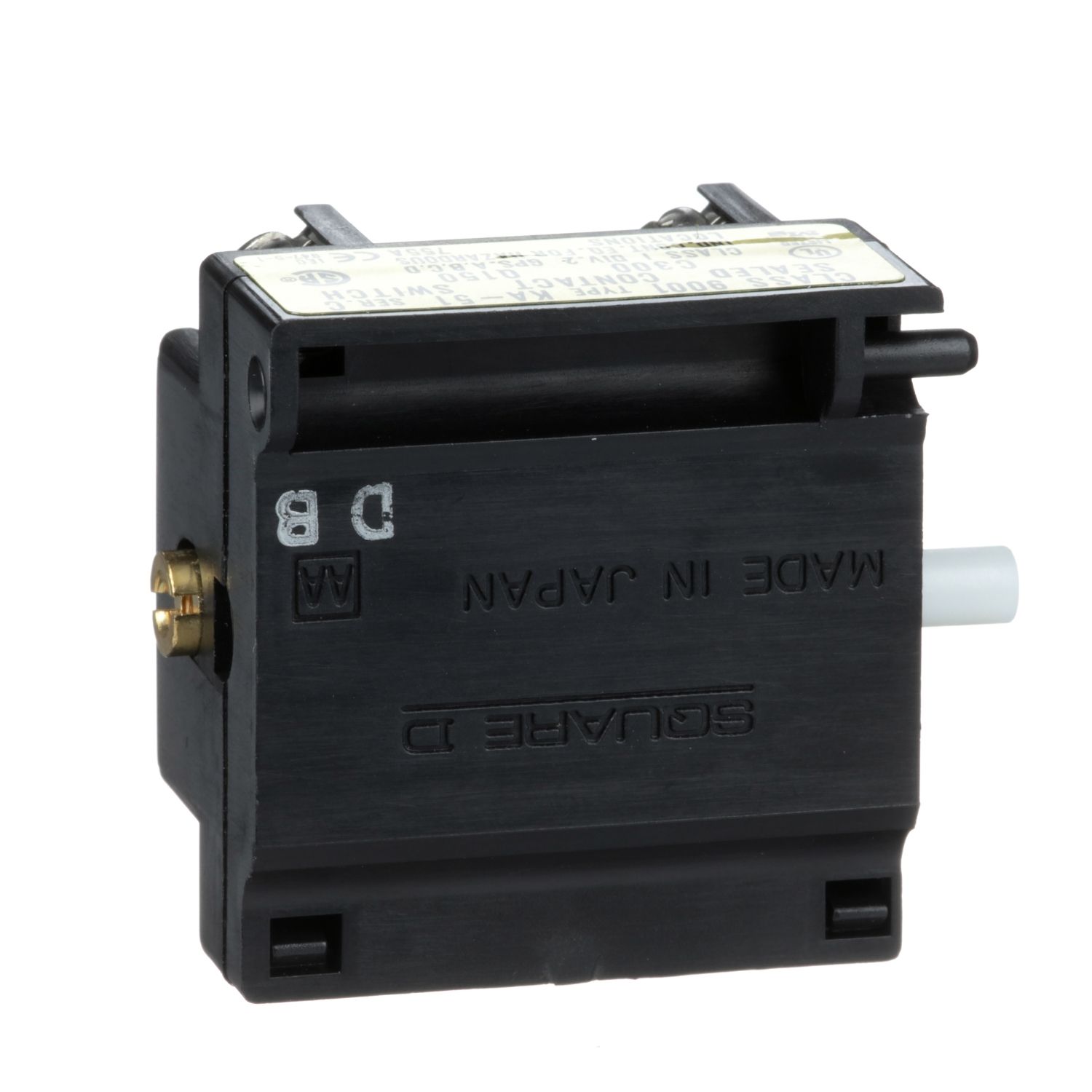

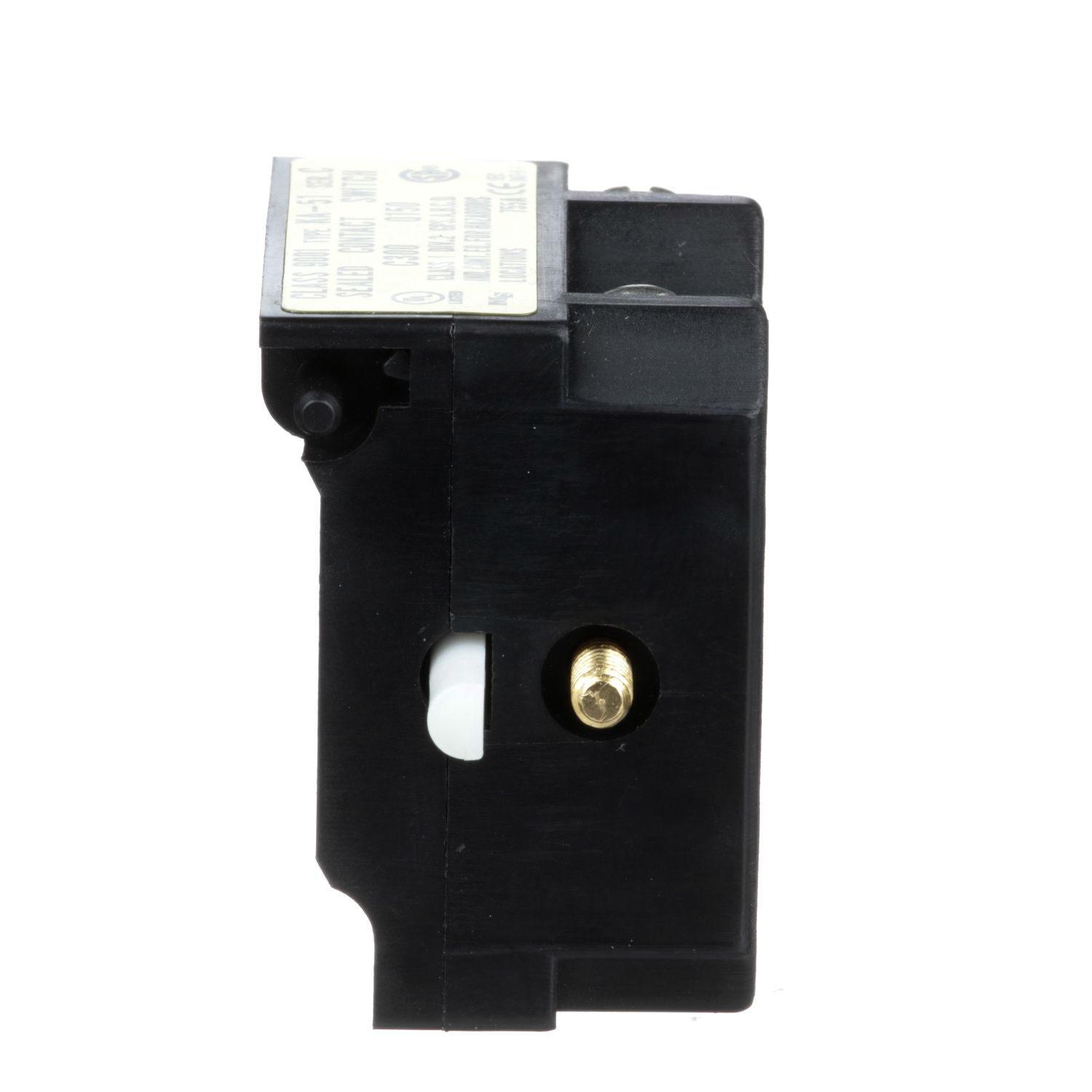

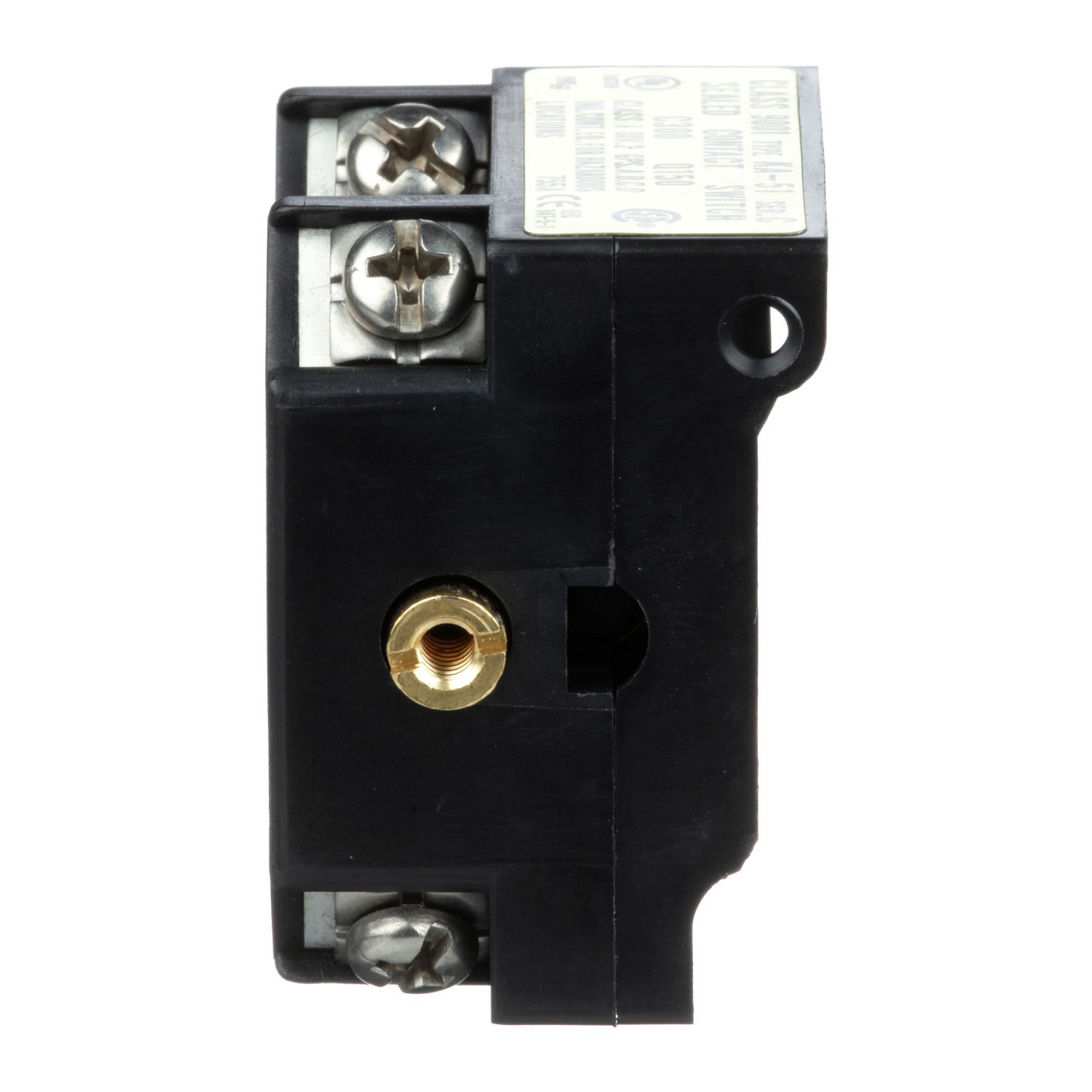

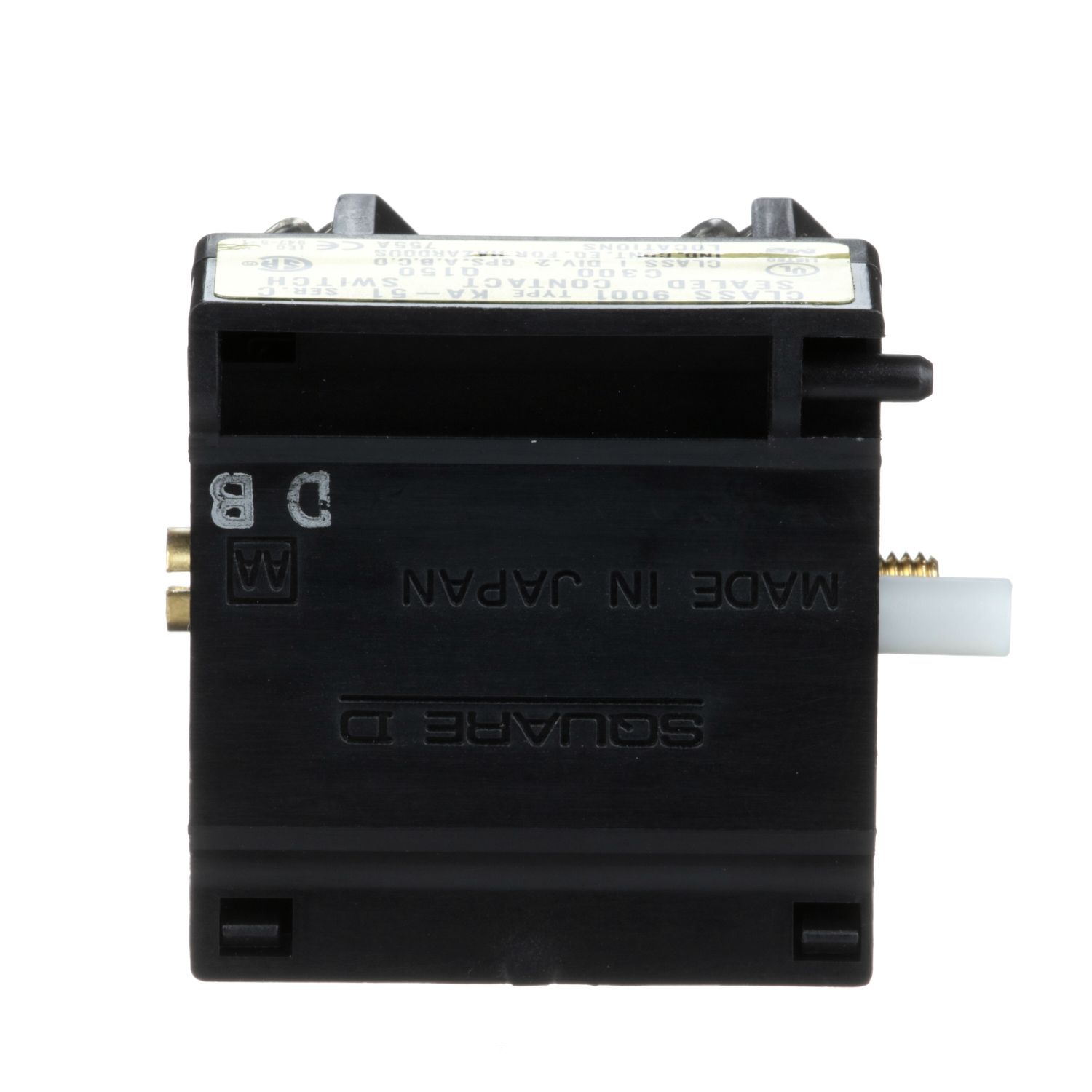

Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO
SKU:

9001KA51

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO

$255.79
Available for Shipping : 10-Dec-2024
Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO
Be the first to review this product
Manufacturer: Square D
Catalogue
Declaration of conformity
Product environmental
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO + 1 x C/O contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features power reed contact operation. It weighs 45g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Product or component type contact block
Range of product Harmony 9001SK, Harmony 9001K
Complementary
Shape of screw head cross slotted
Tightening torque 0.8-0.8 N.m conforming to IEC 60947-1
Compatibility code 9001K
Contact operation hermetically sealed, power reed
[Ie] rated operational current 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 C/O
[Icm] rated short-circuit making capacity 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 0.55 kA at 125 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Net weight 0.045 kg
Rated breaking capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current 10 A
Positive opening without
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
Contacts usage hermetically sealed contacts
[Us] rated supply voltage 240 V
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards UL 60947-5-1, IEC 60947-1, CSA C22.2 No 14, JIS C 4520, JIS C 852, IEC 60947-5-4, IEC 60947-5-1, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 4.3 cm
Package 1 Length 4.6 cm
Package 1 Weight 45.4 g
Unit Type of Package 2 2
Number of Units in Package 2 29
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.617 kg
