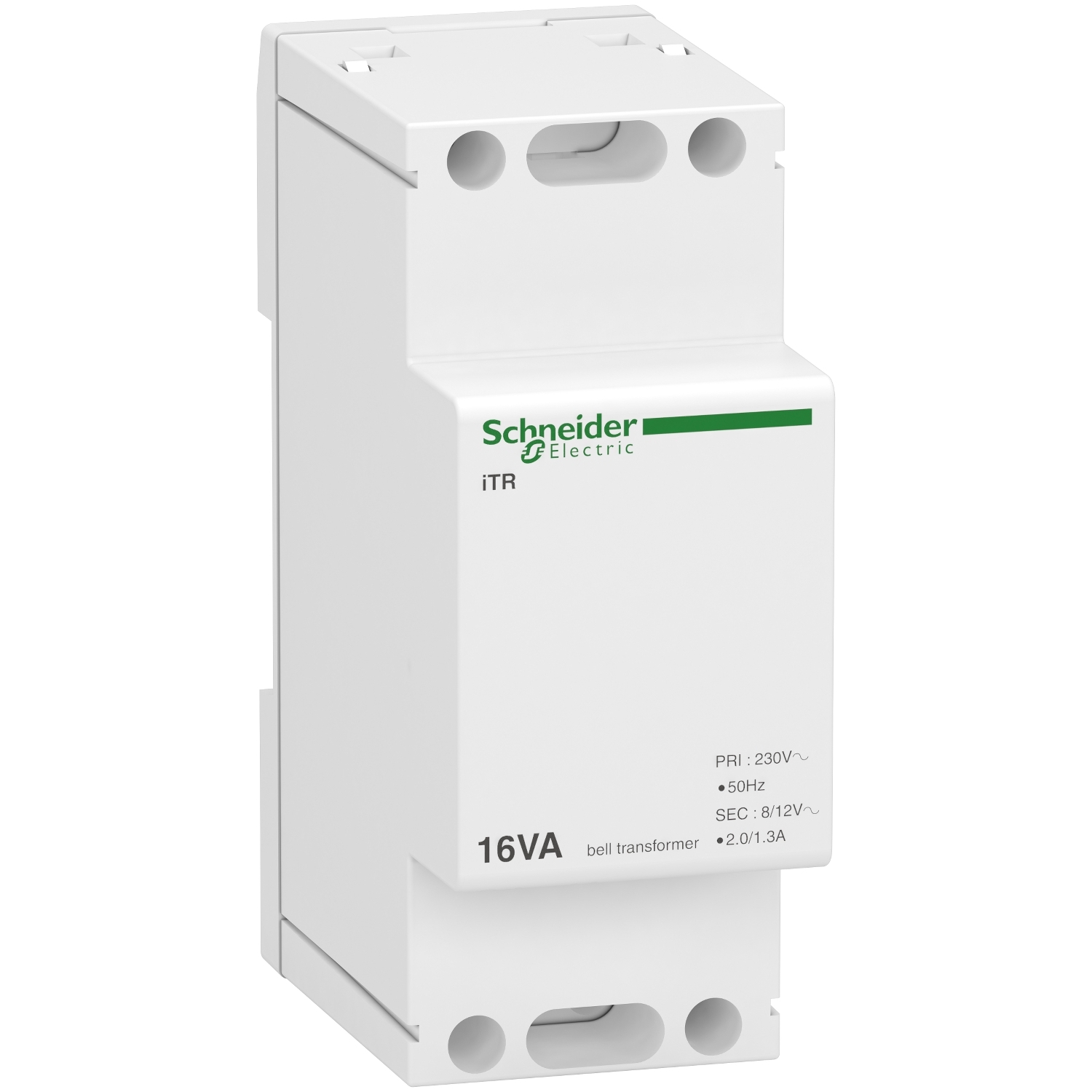

Picture of Acti9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA
SKU:

A9A15212

Acti9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA

Please Contact Sales to buy this Product. click here
Product Selector
Acti9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 iTR 16VA bell transformer allows to obtain a very low voltage 8VAC or 12VAC from a network 230VAC. The transformer is safe meaning that primary and secondary circuits are perfectly insulated by each other. The power supply is 16VA. The operating frequency is 50Hz or 60Hz. The primary voltage is 230VAC +/-10%. The secondary voltage output is 8VAC or 12VAC +/-15%. It is resistant to short-circuit currents thanks to the built-in-device. The off load voltage is 13VAC for a 8VAC rated secondary voltage. The off load voltage is 18VAC for a 12VAC rated secondary voltage. It is a Class II device with terminal shield (optional). The bell transformer can be mounted on DIN rail in vertical or horizontal position. The width in 9mm pitches is 4. The weight is 384g. The degree of protection under IEC 60529 standard is IP20 with terminal shield. The dimensions are (W) 36mm x (H) 89mm x (D) 60mm. The width in modules of 18mm is 2. The operating temperature is -20°C to 55°C. The storage temperature is -25°C to 80°C. This product complies with IEC/EN 61558-2-6 standard.

Products specifications

Attribute nameAttribute value
Main
Device short nameiTR
Transformer typebell transformer
RangeActi9
Product nameActi9 iTR
Product or component typetransformer
Range of productActi9
Complementary
[Ue] rated operational voltage230 V AC 50/60 Hz
Tightening torque0.5-0.5 N.m
Depth60 mm
Market segmentsmall commercial, residential
Width36 mm
Compatibility codeiTR
Output short-circuit protectionbuilt-in
Colourwhite
Mounting modefixed
Wire stripping length6 mm
Rated power in VA16 VA
Auxiliary connection terminaltunnel type terminalsflexible with ferrule 2.5-2.5 mm², tunnel type terminalsflexible 2.5-2.5 mm², tunnel type terminalsrigid 2.5-2.5 mm²
9 mm pitches4
Mounting support35 mm symmetrical DIN rail
Height89 mm
Output voltage13/18 V: off load, 8/12 V: +/- 15 % on load
Environment
Overvoltage categoryclass II with terminal shields in option
Ambient air temperature for storage-25-80 °C
IP degree of protectionIP20 conforming to IEC 60529
StandardsEN 60742, EN 61558-2-6, IEC 61558-2-6
Ambient air temperature for operation-20-55 °C
Product certificationsNF
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.000 cm
Package 1 Width7.500 cm
Package 1 Length9.500 cm
Package 1 Weight414.000 g
Unit Type of Package 22
Number of Units in Package 228
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight11.898 kg
