Picture of Acti9, Padlocking device, Acti9, set of 10
SKU:

A9A26970

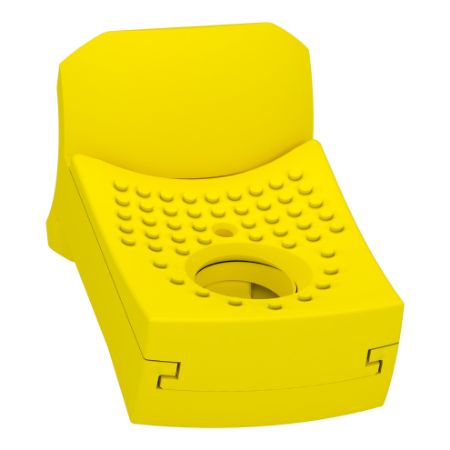

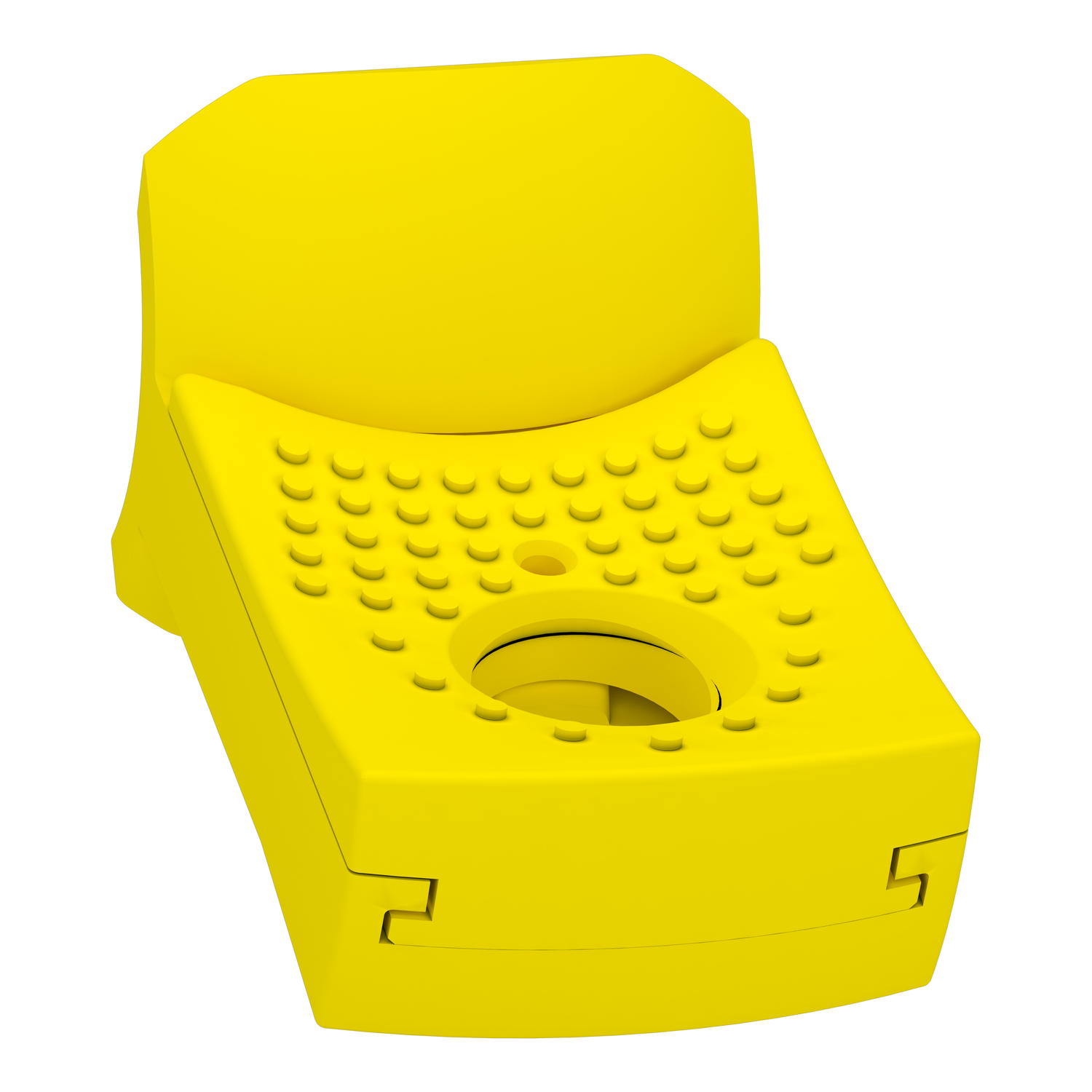

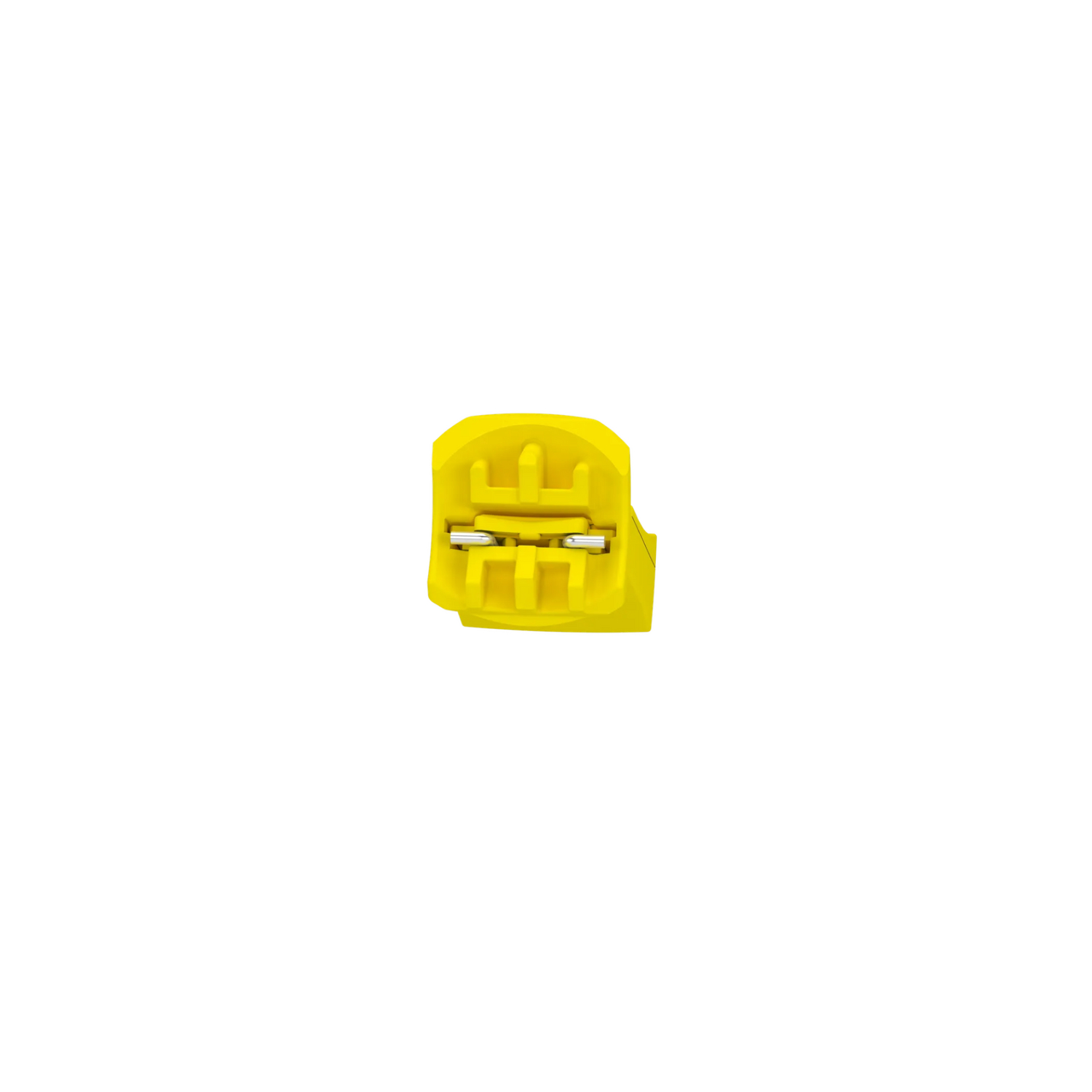

Acti9, Padlocking device, Acti9, set of 10

$38.88
Available for Shipping : 24-Nov-2024
Acti9, Padlocking device, Acti9, set of 10
  • Padlock protection device in "open" position as well as in "closed" position
  • Sealable with a maximum diameter of lock of 1.2mm
  • Locking in ON position does not prevent tripping in the event of faults
  • Guaranteed tripping in the event of fault when locked in the ON position
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

This Acti9 product is a padlocking device is used to padlock in open or closed position. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. The padlock diameter is from 3mm to 6mm. The sealable maximum diameter is 1.2mm. The locking in ON position does not prevent tripping of the breaker in the event of faults. This yellow padlocking accessory is mounted on the front of the product to be protected. This mounting device is suitable for iC60, iC60 + Vigi, iID, iDPN Vigi, iSW-NA, iSW Acti9. This product is suitable with IEC/EN 60947-2 standard compliant disconnection.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 10
Range Acti9
Product or component type padlocking device
Accessory / separate part category locking accessory
Range of product MAX4, Acti9 iDPN N VigiARC, Acti9 iDPN H VigiARC, iSW 40...125, iK60, RCA, ARA, iID, K60, iC60, iDPN Vigi, iID K, iSW-NA
Complementary
Market segment residential, small commercial
Diameter 3-6 mm
Compatibility code Acti 9 iC60
Keylock destination toggle
Range compatibility Acti9 - Acti9 iDPN N VigiARC,  Acti9 - Acti9 iDPN H VigiARC,  Acti 9 - Acti9 iC40,  Acti 9 - Acti9 iK60 iK60N - ,  Acti 9 - Acti9 iSW-NA,  Acti 9 - Acti9 iC60 ARA iC60 - ,  Acti 9 - Acti9 iC60 RCA iC60 - ,  Acti 9 - Acti9 Reflex iC60,  Acti 9 - Acti9 iDPN Vigi,  Acti 9 - Acti9 iID K,  Acti 9 - Vigi iC60 - ,  Acti 9 - Acti9 iSW,  Acti 9 - Acti9 iID,  Acti 9 - Acti9 iC60
Locking options description keylock in OFF or ON position, sealable
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 11.500 cm
Package 1 Length 18.000 cm
Package 1 Weight 42.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.880 kg

Related products

Picture of Acti9 iID - Residual Current Circuit Breaker - 4P - 40A - 30mA - B type

Acti9 iID - Residual Current Circuit Breaker - 4P - 40A - 30mA - B type

A9Z51440
$476.04
View Detail
Picture of Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 30mA

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 16A, C curve, 6000A, A type, 30mA

A9D32616
$54.44
View Detail

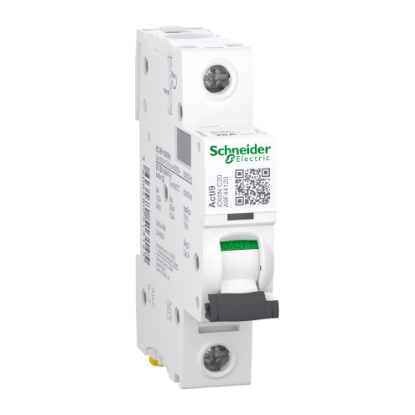

Picture of Acti9, Miniature circuit breaker (MCB), Acti9 iC60N Disbo, 1P, 20A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
