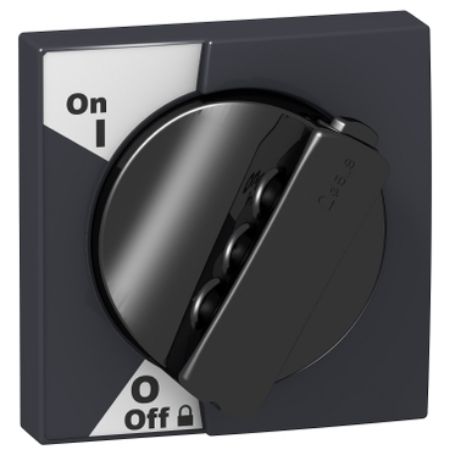

Picture of Acti 9 iC60, Rotary handle, for iC60, black handle
SKU:

A9A27005

Acti 9 iC60, Rotary handle, for iC60, black handle

$114.86
Available for Shipping : 03-Dec-2024
Acti 9 iC60, Rotary handle, for iC60, black handle
  • Front or side-mounted control
  • Prevents the door from opening when the device is in the ON position (can be deactivated)
  • Can be padlocked when the device is in the open position.
  • Compatible with Acti9 devices such as iC60, iID, iC40, iSW-NA, Reflex iC60, RCA, ARA, and iSW
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

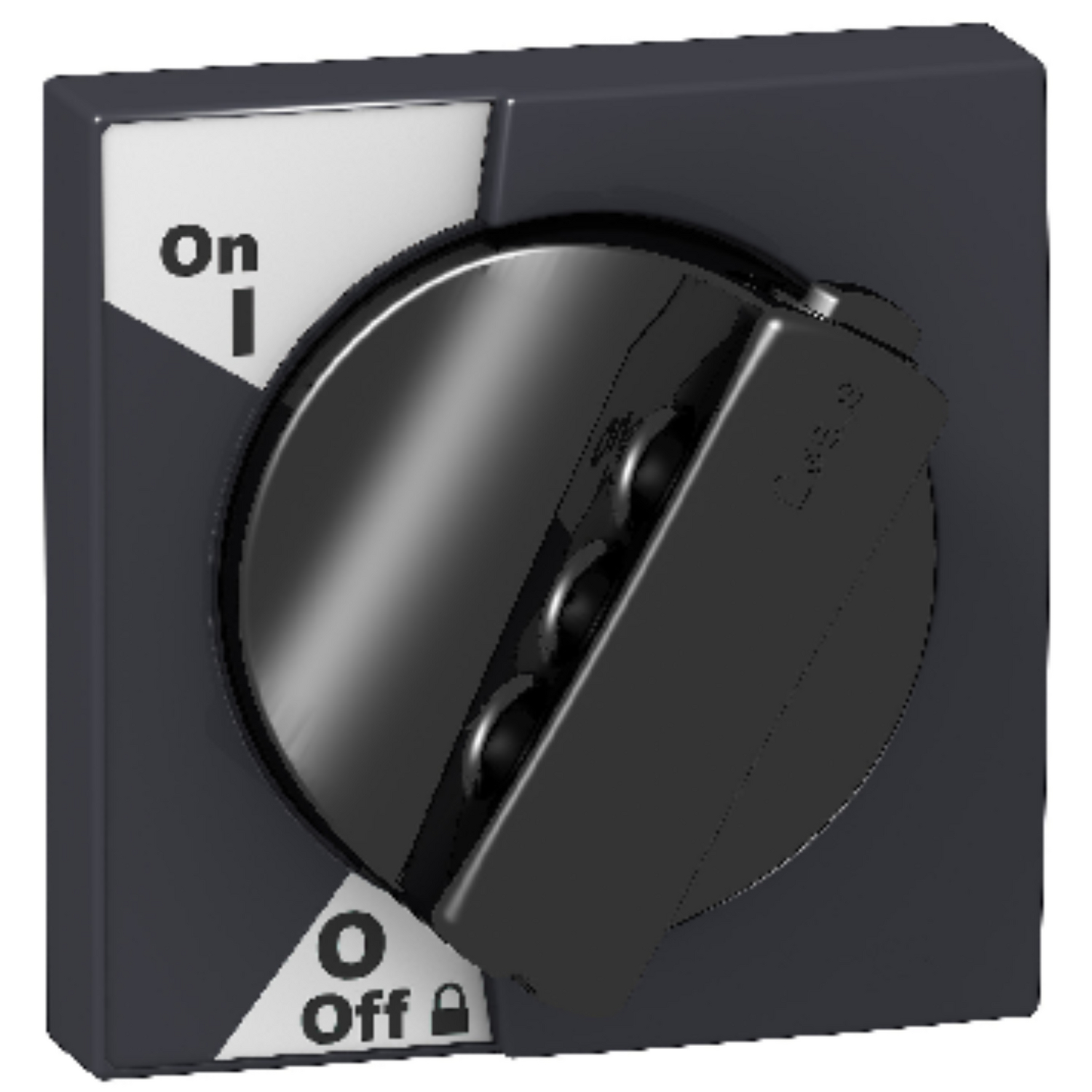

This Acti9 rotary handle for front or side-mounted control is black. This mounting accessory is suitable for iC60 (2P, 3P, 4P), iSW (2P, 3P, 4P), iC60+vigi (2P, 3P, 4P), iID, iSW-NA. The rotary handle is fixed on the front or the side of the enclosure. It prevents the door from opening when the device is in On position but it can desactivated by adaptation. It is a set of 1 device. The front-mounted is possible on door or faceplate. It can be padlocked when the device is in the Open position or Closed position with adaptation. A pushbutton for iID test is available in the front face of the rotary handle. The degree of protection is IP55. The 5mm to 8mm diameter padlock is not supplied with the device. The dimensions of the front face of the rotary handle are (W) 75mm x (H) 75mm. The operating temperature is -25°C to + 55°C.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Range of product iC60, iSW-NA, iSW 40...125, iID
Rotary handle mounting style extended
Complementary
Market segment residential, small commercial
Rotary handle padlocking padlock in OFF position, 3 padlocks max, lockable in O position
Compatibility code rotary handle
Mounting mode fixed, drawout
Rotary handle mounting location lateral, front
Environment
IP degree of protection IP55
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 12.3 cm
Package 1 Length 47.0 cm
Package 1 Weight 670.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 8.872 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 45.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 47.488 kg
