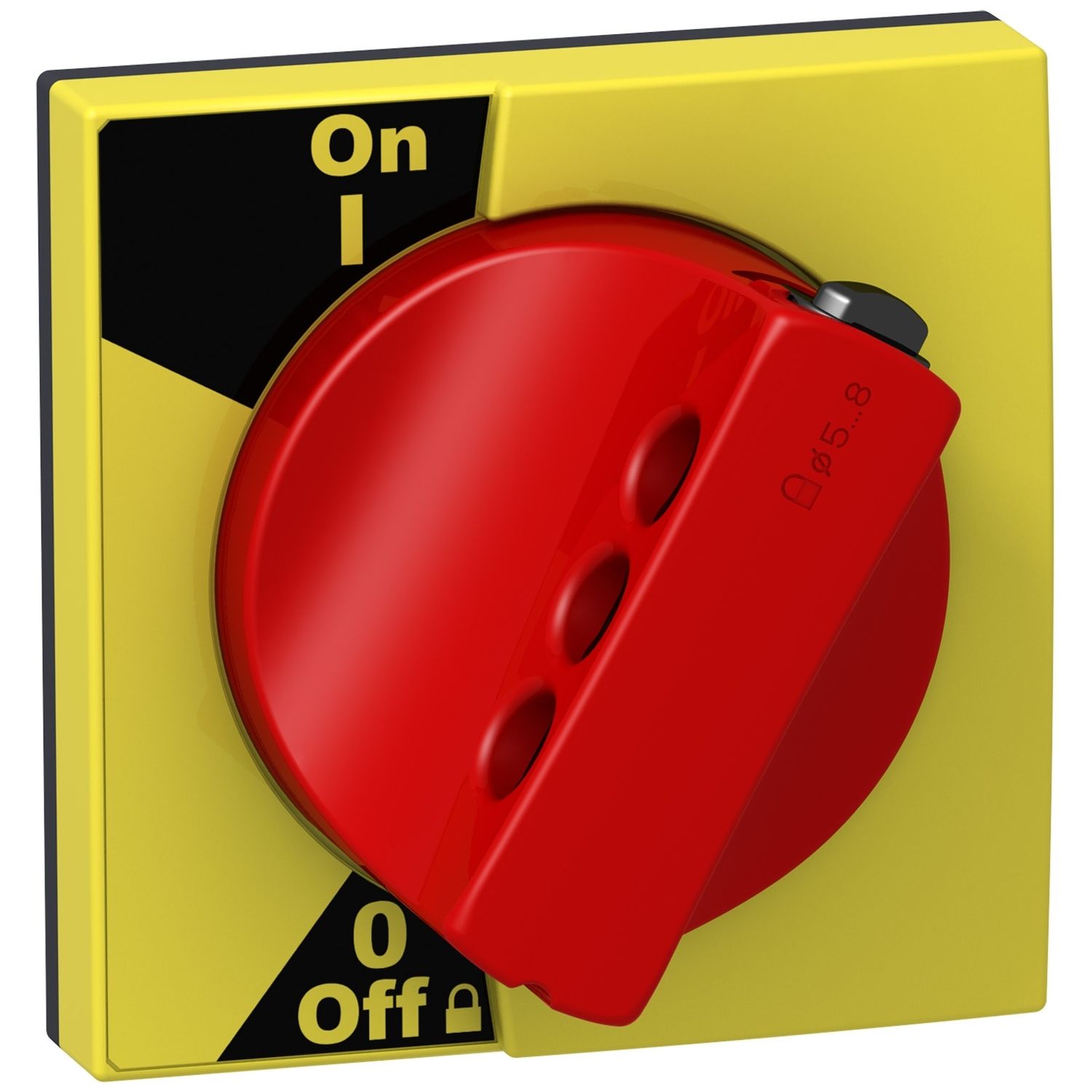

Picture of Acti 9 iC60, Rotary handle, for iC60, red handle
SKU:

A9A27006

Acti 9 iC60, Rotary handle, for iC60, red handle

$114.86
Available for Shipping : 03-Dec-2024
Acti 9 iC60, Rotary handle, for iC60, red handle
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
End of life manual
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 accessory is a red rotary handle provided with a rotary handle mechanism for modular devices with front or side mounting installation. It is dedicated to iID, iSW-NA, 2P or 3P or 4P (iC60 + Vigi iC60, iSW, iC60). It prevents the door from opening when the device is in the ON position. The control mechanism is mounted on the device. The rotary handle is fixed to the front or side of the enclosure. It is a set of 1 device. The color of the handle is red. A padlocking is possible when the device is in open position (OFF). It could be padlocked with the device in the closed position (ON) by adaptation of the device. The padlock diameter is from 5mm to 8mm. A pushbutton for iID test is available on the front face of the rotary handle. The material is a self-extinguishing thermoplastic specially developed by Schneider Electric. The degree of protection of the rotary button is IP55.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour red
Range of product iSW 40...125, iID, iC60, iSW-NA
Rotary handle mounting style extended
Complementary
Market segment residential, small commercial
Rotary handle padlocking lockable in O position, 3 padlocks max, padlock in OFF position
Compatibility code rotary handle
Mounting mode fixed, drawout
Rotary handle mounting location front, lateral
Environment
IP degree of protection IP55
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.700 cm
Package 1 Width 12.500 cm
Package 1 Length 47.500 cm
Package 1 Weight 667.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 8.850 kg
