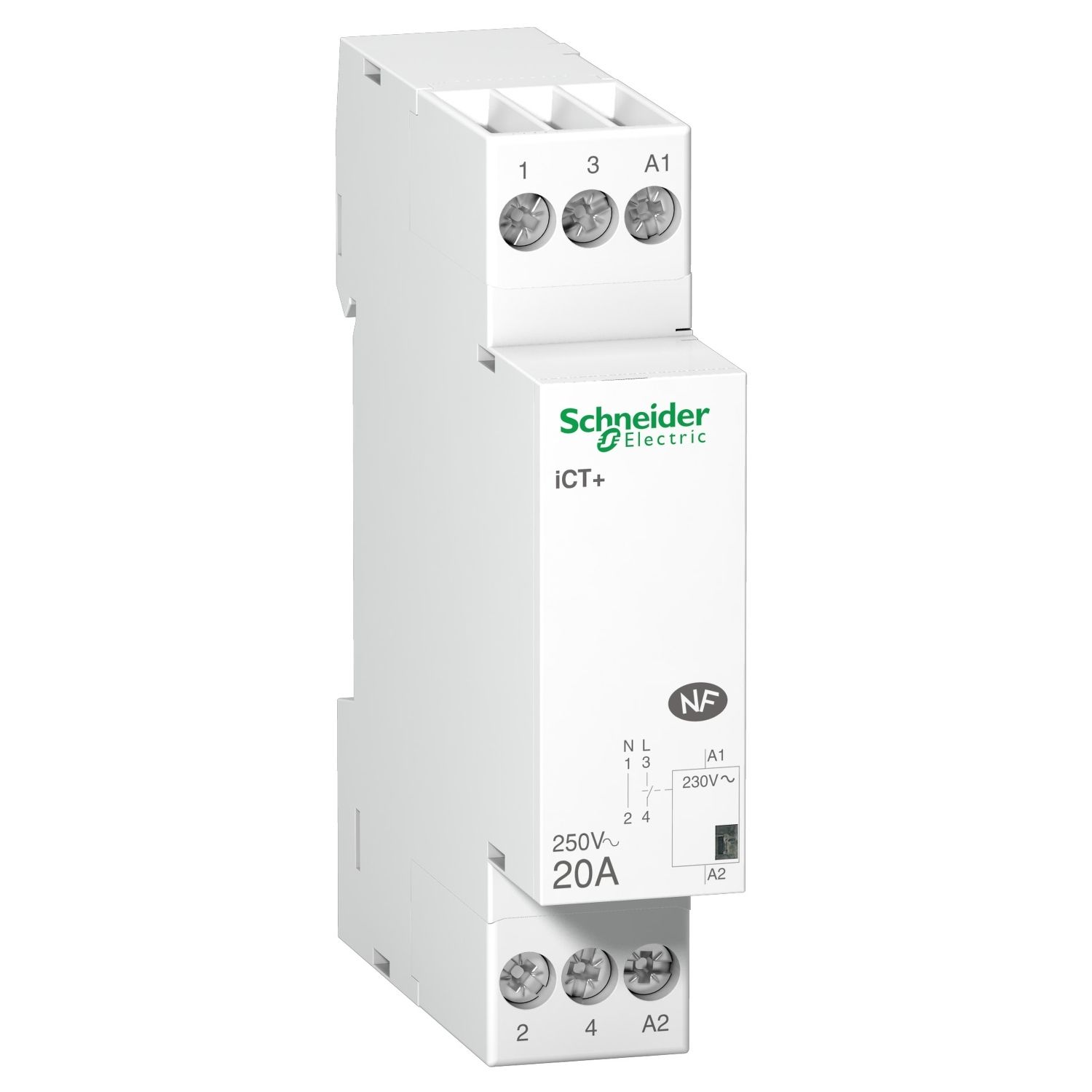

Picture of iCT plus 20A 1P Uc 230VAC
SKU:

A9C15030

iCT plus 20A 1P Uc 230VAC

$107.94 INC GST
Available for Shipping : 29-Jan-2025
Product Selector
iCT plus 20A 1P Uc 230VAC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 iCT+ is a low votage silent modular contactor. It is a 1P remote control device with 1 normally open contact. The rated current is 20A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. It is especially accurate for LED lighting control thanks to its crossing technology. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. This product is compliant with EN/IEC 60669-2-2. Electrical endurance goes up to 5000000 cycles. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 300VAC. Pollution degree is 3. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 60mm. The weight is 70g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Device short name iCT+
Device application control circuit
Poles description 1P
[Ie] rated operational current 20 A AC-7B, 20 A AC-7A
Control type remote control
Pole contact composition 1 NO
Range Acti9
Product name Acti9 iCT+
Product or component type contactor
Network type AC
Range of product iCT
[Uc] control circuit voltage 230 V AC 50 Hz
Complementary
[Ue] rated operational voltage 250 V AC 50 Hz
Maximum power 3.6 kW at 250 V AC
Product compatibility no auxiliary
Tightening torque 1-1 N.m
Depth 60 mm
Market segment small commercial, residential
Width 18 mm
Colour white
Local signalling color indicator
Compatibility code iCT+
Mechanical durability 5000000 cycles
Inrush power in VA 11 VA
Electrical durability 5000000 cycles
Mounting mode clip-on
Control signal type maintained
[Ui] rated insulation voltage 300 V
Wire stripping length 10 mm
Net weight 70 g
Hold-in power consumption in VA 1.1-1.1 VA
9 mm pitches 2
Mounting support 35 mm symmetrical DIN rail
Switching frequency 6 switching operation/minute
Height 81 mm
Network frequency 50 Hz
Connections - terminals tunnel type terminal1 cable(s) 4-4 mm² flexible, tunnel type terminal1 cable(s) 4-4 mm² rigid, tunnel type terminal2 cable(s) 2.5-2.5 mm² flexible, tunnel type terminal2 cable(s) 2.5-2.5 mm² rigid, tunnel type terminal2 cable(s) 1.5-1.5 mm² flexible with ferrule, tunnel type terminal2 cable(s) 1.5-1.5 mm² rigid
Environment
Operating altitude 2000 m
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-60 °C
Pollution degree 3
Noise level 10 dB
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2 conforming to IEC 60068-1
Standards EN 60669-2-1
Ambient air temperature for operation -5-55 °C
Product certifications NF
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 3.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 90 g
Unit Type of Package 2 2
Number of Units in Package 2 63
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.994 kg
