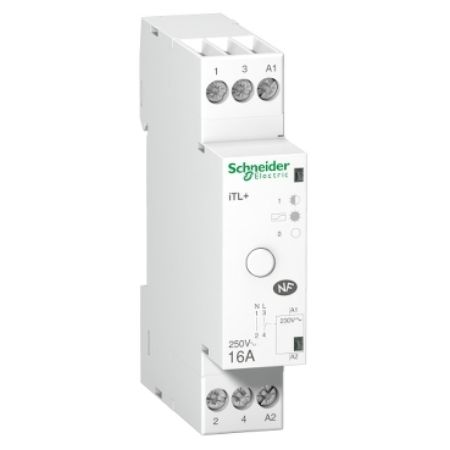

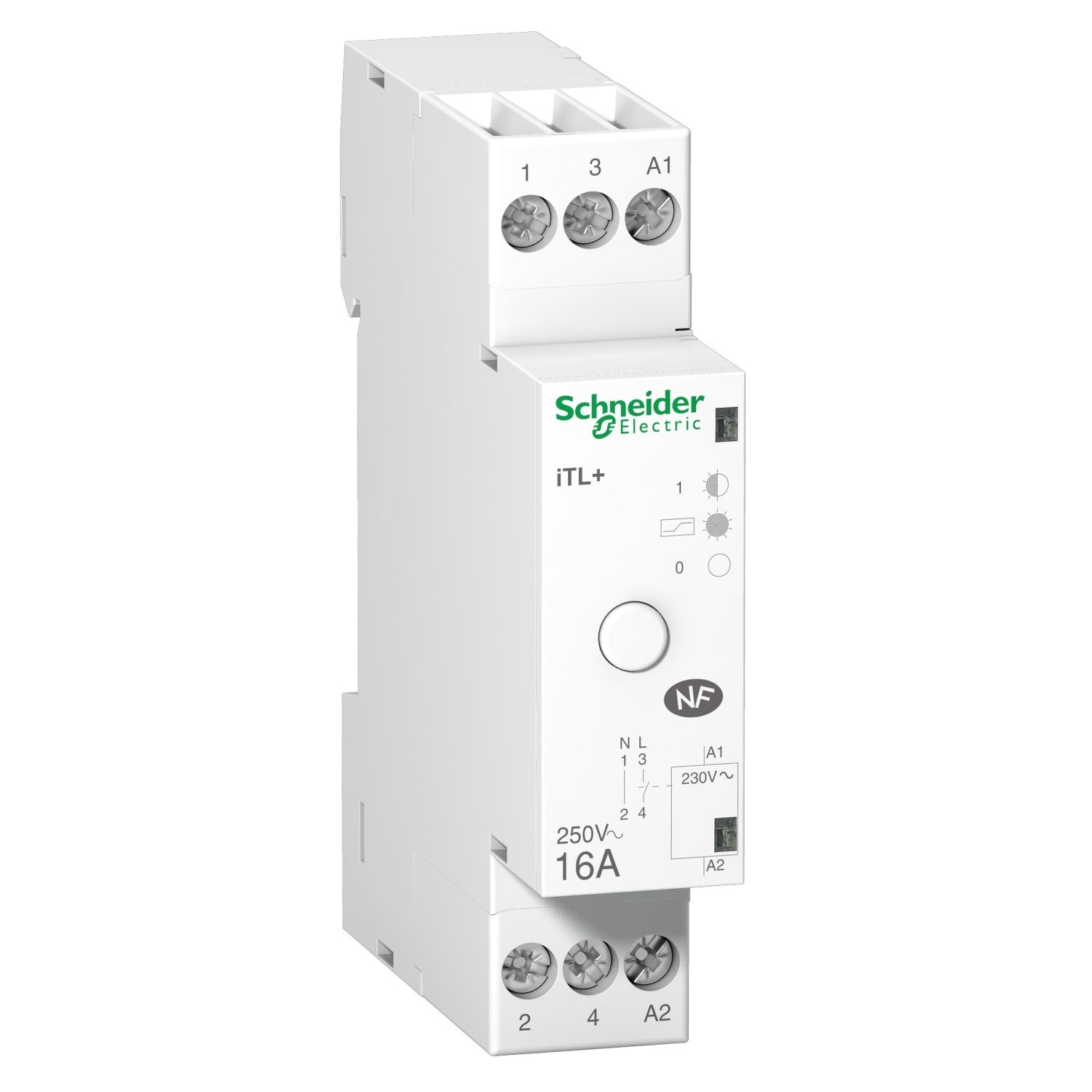

Picture of impulse relay iTL+ - 1P+N - 1NO - 16A - coil 230 VAC 50Hz
SKU:

A9C15032

impulse relay iTL+ - 1P+N - 1NO - 16A - coil 230 VAC 50Hz

$103.22
Available for Shipping : 03-Dec-2024
Product Selector
impulse relay iTL+ - 1P+N - 1NO - 16A - coil 230 VAC 50Hz
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iTL+ is a silent modular impulse relay. This 1P+N device has 1 normally open contact. The rated current is 16A, 230VAC operating voltage and it operates with 230VAC control voltage. Electrical endurance goes up to 5000000 cycles for AC-21 or 5000000 cycles for AC-22. The switching frequency is 6 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. The iTL+ high-performance impulse relay allows remote control of single-phase circuits. It is designed for demanding applications. It is mainly used for lighting control applications. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The product weight is 70g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C. This product is compliant with IEC/EN 60669-2-2 standard.

Products specifications

Attribute name Attribute value
Main
Device application standard
Neutral position left
Network type AC
Device short name iTL+
Range Acti9
Range of product iTL
Poles description 1P + N
Pole contact composition 1 NO
Product name Acti9 iTL+
Product or component type impulse relay
[Uc] control circuit voltage 230 V AC 50 Hz
[In] rated current 16 A
Complementary
Compatibility code iTL+
Electrical durability AC-22: 5000000 cycles, AC-21: 5000000 cycles
Control signal type impulse
Hold-in power consumption in VA 1.1-1.1 VA
Switching frequency 6 switching operation/minute
Connections - terminals tunnel type terminals top or bottom 1 cable(s) 4-4 mm² flexible without cable end, tunnel type terminals top or bottom 1 cable(s) 4-4 mm² rigid, tunnel type terminals top or bottom 2 cable(s) 2.5-2.5 mm² flexible without cable end, tunnel type terminals top or bottom 2 cable(s) 2.5-2.5 mm² rigid, tunnel type terminals top or bottom 2 cable(s) 1.5-1.5 mm² flexible with ferrule, tunnel type terminals top or bottom 2 cable(s) 1.5-1.5 mm² rigid
Height 84 mm
Market segment residential, small commercial
Inrush power in VA 11 VA
Net weight 70 g
9 mm pitches 2
Product compatibility no auxiliary
Tightening torque 1-1 N.m
Mounting mode clip-on
Impulse duration 50 ms...1 s
Control type remote and manual control
Wire stripping length 10 mm
Remote control type illuminated push-button 5 mA
[Ue] rated operational voltage 230 V AC 50 Hz
Depth 60 mm
Width 18 mm
Local signalling ON/OFF indication
Mounting support DIN rail
Network frequency 50 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-60 °C
Tropicalisation 2 conforming to IEC 60068-1
Quality labels NF
IP degree of protection IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening)
Noise level 30 dB
Ambient air temperature for operation -5-55 °C
Standards EN 669-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 7.1 cm
Package 1 Length 9.2 cm
Package 1 Weight 91.0 g
Unit Type of Package 2 2
Number of Units in Package 2 63
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.052 kg
