SKU:

A9C15410

Acti9, multi-level centralized control iATLc+c

$83.16

Qty:

Available for Shipping : 10-Dec-2024

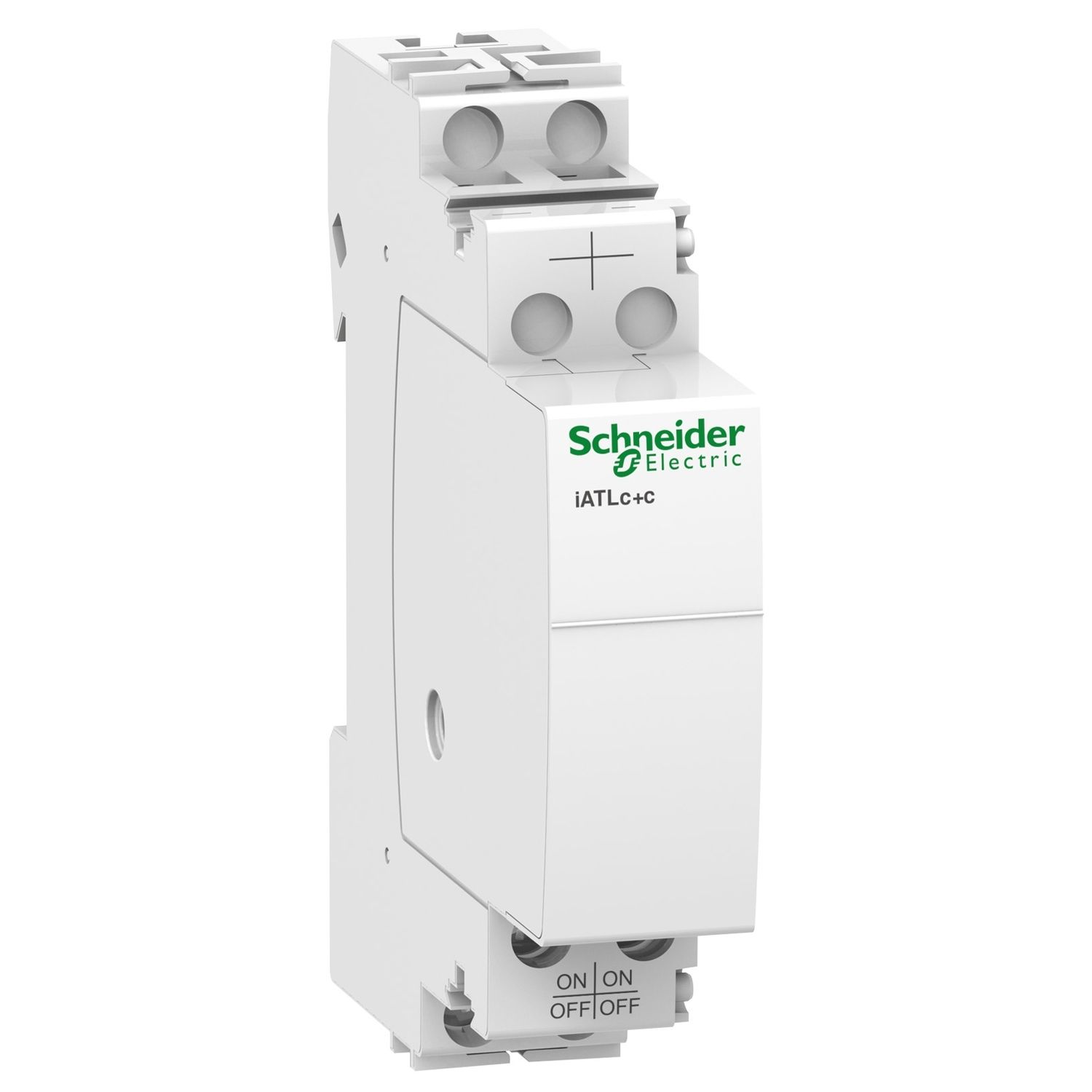

Acti9, multi-level centralized control iATLc+c

Can report the signaling to an Opening for Default Devices status

Compatible with standard applications with current from 100mA up to 6A

Compatible with iC60, iID, iC40, and iSW-NA

To be fixed with clips directly on the left of the MCB

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

This Acti9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. In AC network, the In rated current is from 100mA to 6A with operating frequency of 50Hz to 60Hz at 240VAC, and from 100mA to 3A with operating frequency of 50Hz to 60Hz at 415VAC. In DC network, the In rated current always begins at 100mA at 24VDC to 130VDC. It goes up 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial or buildings. This fault contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iC40 XA, iCV40 XA, iC60 RCBO. This fault contact is compatible with Acti9 ranges such as Acti9 iDT40, iDT40 XA and iDD40. The iSD is either used for device short name or compatibility code. The mechanical indicator is provided on the product for signalling (Local). It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -35°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards. This product is certified with CE and UKCA markings.

Products specifications

Attribute name	Attribute value
Main
Device short name	iATLc+c
Range	Acti9
Range of product	Acti9
Product or component type	multilevel centralized control auxiliary
[Uc] control circuit voltage	24...240 V AC 50/60 Hz impulse
Complementary
Tightening torque	1-1 N.m
Colour	white
Compatibility code	iATLc+c
Mounting mode	fixed
Wire stripping length	11 mm
Remote control type	2 entries for switch
Height	86 mm
Depth	71 mm
Market segment	small commercial, residential
Width	18 mm
[Ui] rated insulation voltage	440 V
Connections - terminals	tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid
[Uimp] rated impulse withstand voltage	4 kV
9 mm pitches	2
Range compatibility	Acti 9 Acti9 iTL iATLc+s, Acti 9 Acti9 iTL iATLc, Acti 9 Acti9 iTL iTLc
Mounting support	DIN rail
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Tropicalisation	2
Ambient air temperature for operation	-20-50 °C
Overvoltage category	III
Standards	EN/IEC 60669-2-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	2.9 cm
Package 1 Width	8 cm
Package 1 Length	9.5 cm
Package 1 Weight	75 g
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	8.5 cm
Package 2 Width	10 cm
Package 2 Length	26.5 cm
Package 2 Weight	640 g
Unit Type of Package 3	3
Number of Units in Package 3	72
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	6.288 kg
