Acti9, step by stel control iATL4

$297.18
Available for Shipping : 17-Dec-2024
Acti9, step by stel control iATL4
Manufacturer: Schneider Electric

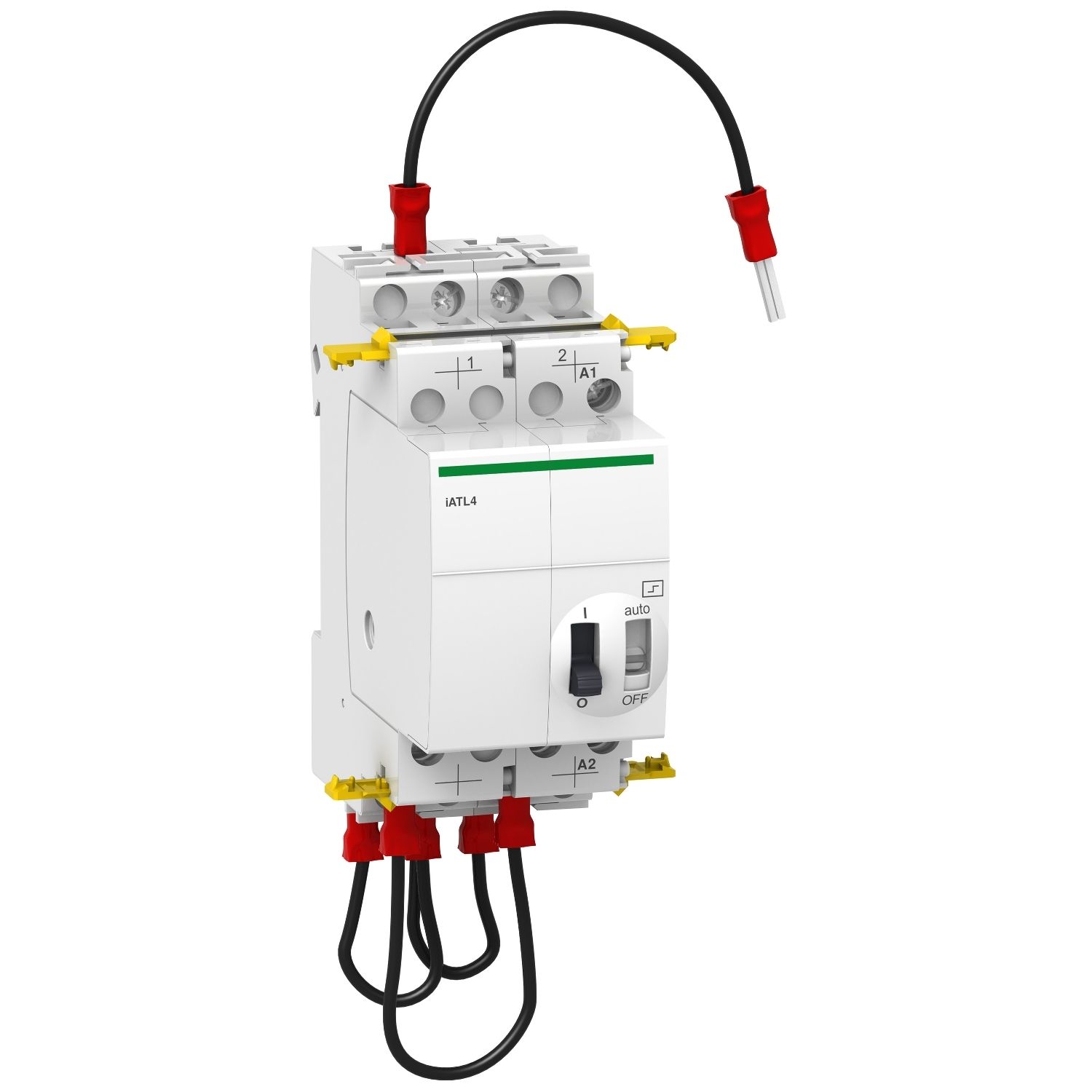

This Acti9 iATL4 is reliable step by step control auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push button. This product is compliant with EN/IEC 60669-2-2.

Products specifications

Attribute name Attribute value
Main
Device short name iATL4
Range Acti9
Range of product Acti9
Product or component type step by stel control auxiliary
[Uc] control circuit voltage 230 V AC 50/60 Hz impulse 50 ms
Complementary
Product compatibility iTL (16 A), iTL (32 A)
Tightening torque 1-1 N.m
Colour white
Compatibility code iATL4
Mounting mode fixed, between 2 TL
Wire stripping length 11 mm
Remote control type push-button
Height 86 mm
Depth 71 mm
Market segment residential, small commercial
Width 36 mm
[Ui] rated insulation voltage 440 V
Connections - terminals tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid
[Uimp] rated impulse withstand voltage 4 kV
9 mm pitches 4
Range compatibility Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support DIN rail
Step sequences 2nd impulse - TL1 off, TL2 on, 4th impulse - TL1 off, TL2 off, 3rd impulse - TL1 on, TL2 on, 1st impulse - TL1 on, TL2 off
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Tropicalisation 2
Ambient air temperature for operation -20-50 °C
Overvoltage category III
Standards EN/IEC 60669-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.0 cm
Package 1 Width 8.5 cm
Package 1 Length 11.0 cm
Package 1 Weight 200.0 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.701 kg
