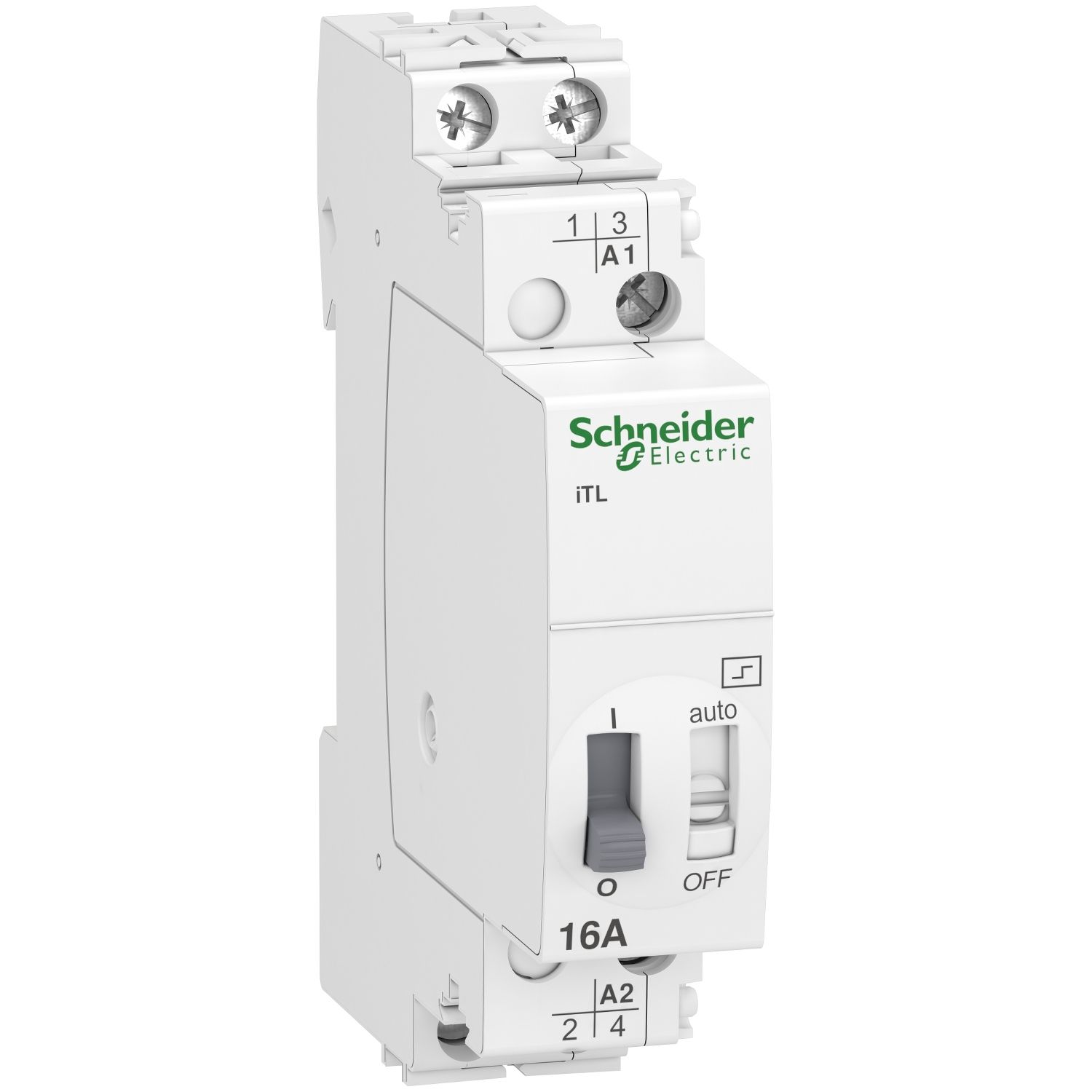

Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

$103.92

Qty:

Product Selector

Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

Consistent with the entire Acti9 offer and with all types of lighting

Compliant with EN 669-2-2 and EN 669-1 standards

A simple clip-on system for flexible auxiliaries combination and improved robustness

Closing of the impulse relay pole(s) is triggered by an impulse on the coil

Disconnection of remote control by selector switch for maintenance operation

Direct and priority manual control by O-l toggle on front face

Can be controlled by an unlimited number of pushbuttons

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 26-Sep-2024

Declaration of conformity

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute name	Attribute value
Main
Device application	standard
Network type	AC
Device short name	iTL
Range	Acti9
Range of product	iTL
Poles description	2P
Pole contact composition	2 NO
Product name	Acti9 iTL
Product or component type	impulse relay
[Uc] control circuit voltage	110 V DC, 230...240 V AC 50/60 Hz
[In] rated current	16 A
Complementary
Compatibility code	iTL
Electrical durability	AC-22: 100000 cycles, AC-21: 200000 cycles
Control signal type	impulse
Switching frequency	100 switching operations/day, 5 switching operations/minute
Connections - terminals	power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible with ferrule, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid with cable end, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible with ferrule, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid with cable end, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid
Height	84 mm
Market segment	residential, small commercial
9 mm pitches	2
Range compatibility	Acti 9 iATL24, Acti 9 iATLc+c, Acti 9 iETL iTL 16, Acti 9 iATLz, Acti 9 iATLs, Acti 9 iATLm, Acti 9 iATLc+s, Acti 9 iATLc, Acti 9 iATL4, Acti 9 iATEt
Tightening torque	1-1 N.m
Power losses per pole	0.6 W
Mounting mode	fixed
Impulse duration	50 ms...1 s
Control type	coil deconnection, remote and manual control
Wire stripping length	11 mm
Remote control type	illuminated push-button 3 mA
[Ue] rated operational voltage	250 V AC 50/60 Hz
Depth	60 mm
Width	18 mm
Local signalling	ON/OFF indication
Mounting support	DIN rail
Total power losses	1.2 W
Network frequency	50/60 Hz
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
Tropicalisation	2
Quality labels	IMQ, VDE, KEMA, CEBEC, NF
Product certifications	GOST
IP degree of protection	IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening)
Pollution degree	3
Noise level	60 dB
Ambient air temperature for operation	-20-50 °C
Standards	EN 669-2-2, EN 669-1
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.8 cm
Package 1 Width	7.5 cm
Package 1 Length	8.5 cm
Package 1 Weight	110 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8 cm
Package 2 Width	9 cm
Package 2 Length	23 cm
Package 2 Weight	1.376 kg
Unit Type of Package 3	3
Number of Units in Package 3	144
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	17.196 kg
