Acti9, control by illuminated push-buttons iATLz

$119.02
Available for Shipping : 10-Dec-2024

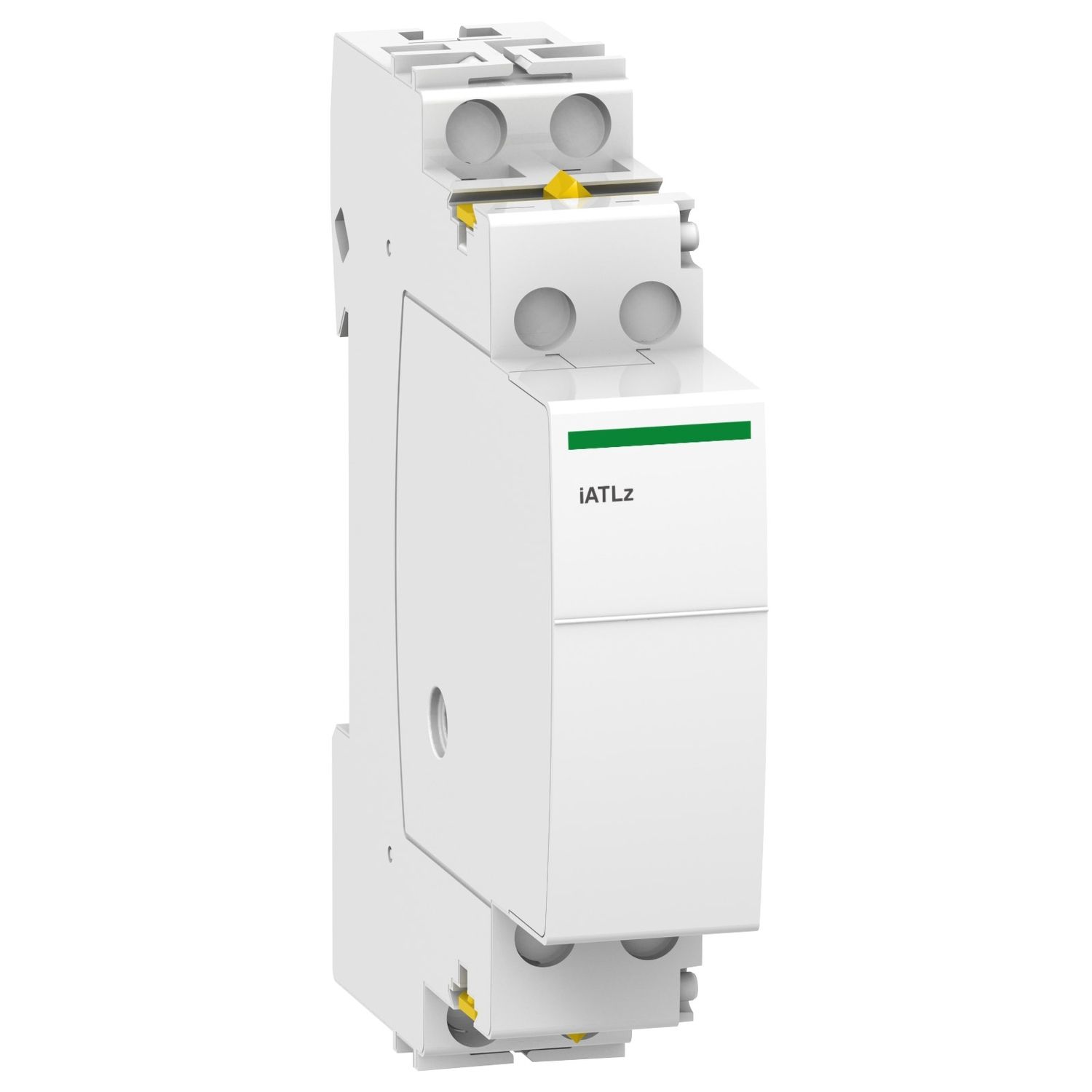

Acti9, control by illuminated push-buttons iATLz
Manufacturer: Schneider Electric
This Acti9 iATLz product is reliable control by illuminated push-buttons auxiliary. Control voltage is between 130VAC and 240VAC. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push button. This product is compliant with EN/IEC 60669-2-2.

Products specifications

Attribute name Attribute value
Main
Device short name iATLz
Range Acti9
Range of product Acti9
Product or component type impedance adaptation auxiliary
[Uc] control circuit voltage 130...240 V AC 50/60 Hz
Complementary
Product compatibility iTL (16 A), iTL (32 A)
Tightening torque 1-1 N.m
Colour white
Compatibility code iATLz
Mounting mode fixed, on left side of TL
Wire stripping length 11 mm
Remote control type illuminated push-button 3 mA
Height 86 mm
Depth 71 mm
Market segment residential, small commercial
Width 18 mm
[Ui] rated insulation voltage 440 V
Connections - terminals tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid
[Uimp] rated impulse withstand voltage 4 kV
9 mm pitches 2
Range compatibility Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Tropicalisation 2
Ambient air temperature for operation -20-50 °C
Overvoltage category III
Standards EN/IEC 60669-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 1.800 cm
Package 1 Length 9.000 cm
Package 1 Weight 93.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 9.200 cm
Package 2 Length 23.000 cm
Package 2 Weight 1.169 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.483 kg
