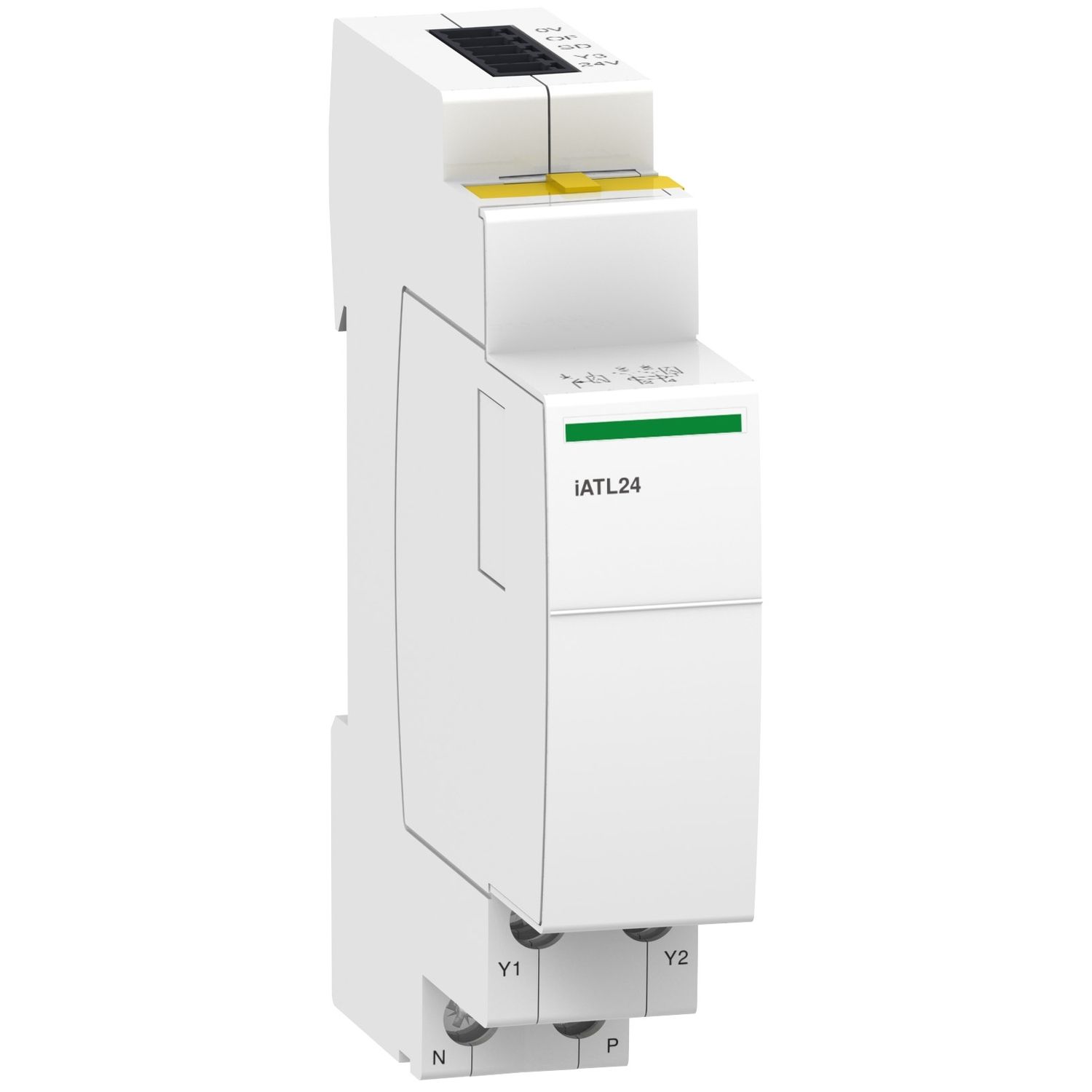

Picture of Acti9, iATL24 control and remote indication with Ti24 connector
SKU:

A9C15424

Acti9, iATL24 control and remote indication with Ti24 connector

$296.48
Available for Shipping : 17-Nov-2024
Acti9, iATL24 control and remote indication with Ti24 connector
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
User guide
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iATL24 product is reliable control and remote indication with Ti24 connector auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with IEC 60947-1 appendix S.

Products specifications

Attribute name Attribute value
Main
Device short name iATL24
Range Acti9
Range of product Acti9
[Us] rated supply voltage 230 V AC at 50/60 Hz
Signal contacts composition 1 NO
Signalling circuit voltage 24 V DC: +/- 20 % 0.002...0.1 A
Product or component type control and indication auxiliary
[Uc] control circuit voltage 24 V DC rising edge, 24 V DC falling edge, 230 V AC 50/60 Hz impulse >= 200 ms
Complementary
Product compatibility iTL (16 A) - 230/240 V 50 Hz, iTL (32 A) - 230/240 V 50 Hz, Acti 9 Smartlink
Tightening torque input: 1-1 N.m bottom, power supply: 1-1 N.m bottom
Colour white
Compatibility code iATL24
Electrical durability 250000 cycles conforming to IEC 60947-5-1
Mounting mode fixed, on the left of CT
Control type remote control
Wire stripping length Ti24 interface: 10 mm for top connection, input: 9 mm for bottom connection, power supply: 9 mm for bottom connection
Comb busbar and distribution block compatibility top: NO, bottom: YES
Immunity to microbreaks 10 ms
Height 81 mm
Depth 68 mm
Market segment small commercial
Width 18 mm
[Ui] rated insulation voltage 250 V AC 50/60 Hz
Connections - terminals Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5-1.5 mm² - flexible, Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5-1.5 mm² - rigid, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible with ferrule, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - flexible, input: tunnel type terminals 2 cable(s) 0.5-2.5 mm² - rigid, power supply: tunnel type terminals 1 cable(s) 0.5-4 mm² - flexible with ferrule, power supply: tunnel type terminals 1 cable(s) 0.5-6 mm² - flexible, power supply: tunnel type terminals 1 cable(s) 0.5-10 mm² - rigid
[Uimp] rated impulse withstand voltage 8 kV
Power consumption in W 1 W
9 mm pitches 2
Range compatibility Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support DIN rail
Undervoltage behaviour no opening if loss of 24 V DC
Environment
Relative humidity 93-93 % at 40-40 °C conforming to IEC 60068-2
Ambient air temperature for storage -40-80 °C
Pollution degree 3 conforming to IEC 60439-1
IP degree of protection IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2 conforming to IEC 60947-5-1
Ambient air temperature for operation -25-60 °C
Overvoltage category IV
Quality labels CE
Standards IEC 60947-1 appendix S
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 7.6 cm
Package 1 Length 8.6 cm
Package 1 Weight 79.0 g
Unit Type of Package 2 2
Number of Units in Package 2 108
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.166 kg

Related products

Picture of Acti9, Impulse relay iTL - 1P - 1NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

Acti9, Impulse relay iTL - 1P - 1NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

A9C30811
$63.10
View Detail
Picture of Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

A9C30812
$103.92
View Detail

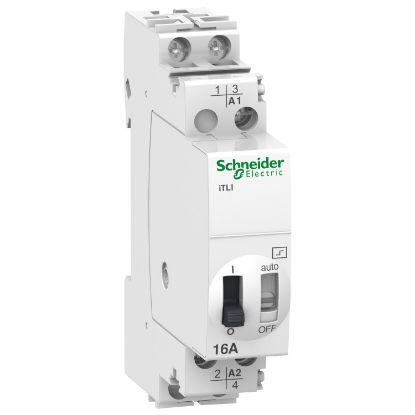

Picture of Acti9, Impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

Acti9, Impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 110 VDC - 230...240 VAC 50/60Hz

A9C30815
$96.46
View Detail
Picture of Acti9, Impulse relay iTL - 1P - 1NO - 32A - coil 110 VDC - 230...240 VAC 50/60Hz

Acti9, Impulse relay iTL - 1P - 1NO - 32A - coil 110 VDC - 230...240 VAC 50/60Hz

A9C30831
$80.95
View Detail

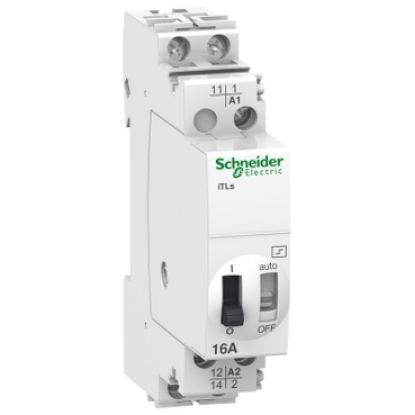

Picture of Acti9, Impulse relay iTLs - 1P - 1NO - 16A - coil 110 VDC - 230...240 VAC 50/60Hz
