SKU:

A9C15405

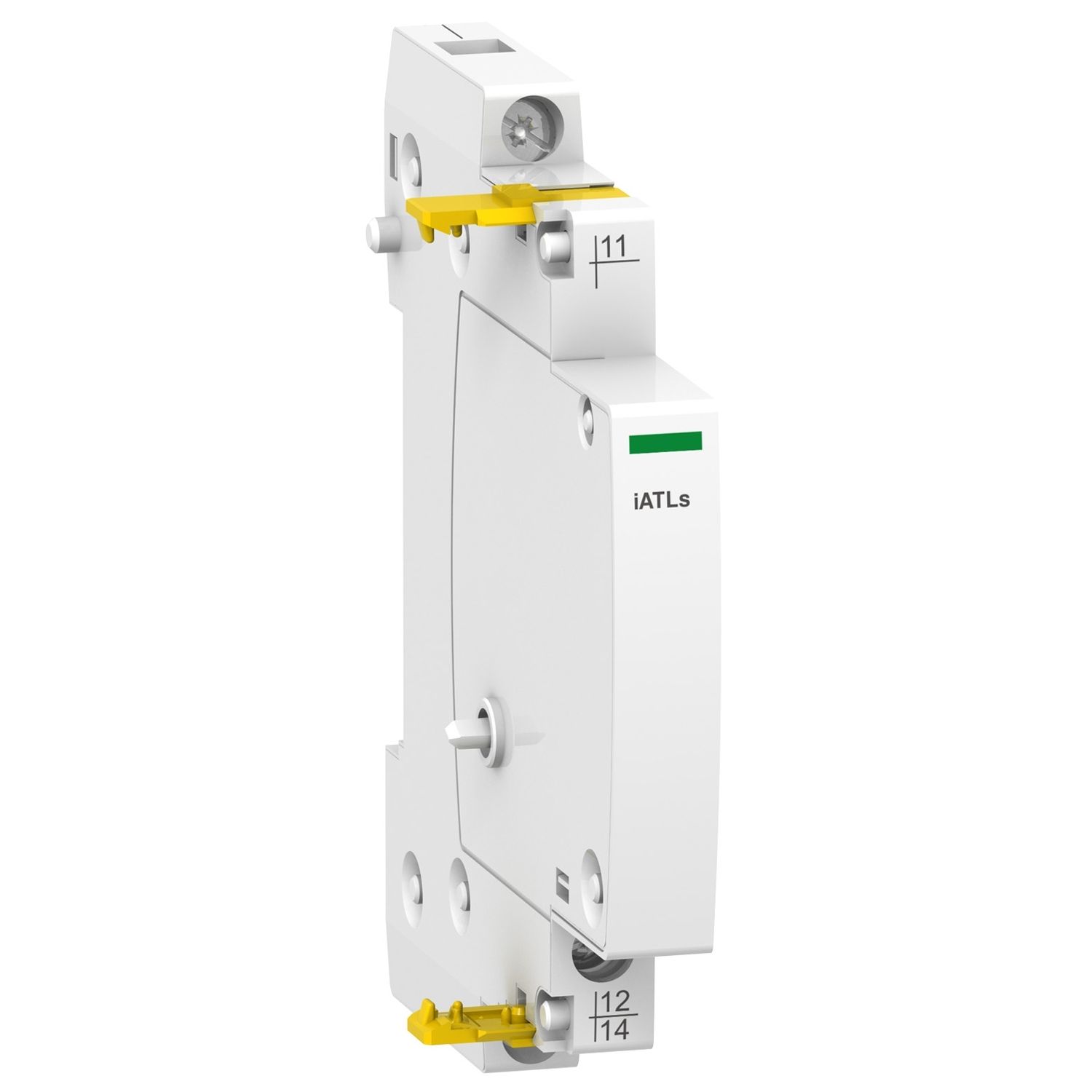

Acti9 remote indication iATLs

$213.46

Qty:

Acti9 remote indication iATLs

Be the first to review this product

Manufacturer: Schneider Electric

Estimated Delivery Date: 18-Oct-2024

Product environmental

Product Page Link

Product Data Sheet

This Acti9 iATLs is reliable remote indication auxiliary. It has 1 changeover contact, and it operates with 24VAC/DC to 240VAC/DC control voltage. Mounting is performed on the right of iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow remote indication of their operating state. This product is compliant with EN/IEC 60669-2-2.

Products specifications

Attribute name	Attribute value
Main
Device short name	iATLs
Range	Acti9
Range of product	Acti9
Signal contacts composition	1 C/O
Signalling circuit voltage	13...24 V DC: 2 A, 15...240 V AC: 50/60 Hz 2 A, 12...24 V DC: 6 A, 12...240 V AC: 50/60 Hz 6 A, 24 V AC/DC: 10 mA
Product or component type	remote indication auxiliary
[Uc] control circuit voltage	24...240 V DC, 24...240 V AC 50/60 Hz
Complementary
Product compatibility	iTL (16 A), iTL (32 A)
Tightening torque	1-1 N.m
Colour	white
Compatibility code	iATLs
Mounting mode	fixed, on right side of TL
Wire stripping length	11 mm
Height	81 mm
Depth	69 mm
Market segment	small commercial, residential
Width	9 mm
[Ui] rated insulation voltage	440 V
Connections - terminals	tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid
[Uimp] rated impulse withstand voltage	4 kV
9 mm pitches	1
Range compatibility	Acti 9 Acti9 iTL iTLm, Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support	DIN rail
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Tropicalisation	2
Ambient air temperature for operation	-20-50 °C
Overvoltage category	III
Standards	EN/IEC 60669-2-2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	2.1 cm
Package 1 Width	9.3 cm
Package 1 Length	7.7 cm
Package 1 Weight	40 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.6 cm
Package 2 Width	9.9 cm
Package 2 Length	26.5 cm
Package 2 Weight	531 g
Unit Type of Package 3	3
Number of Units in Package 3	108
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	5.267 kg
