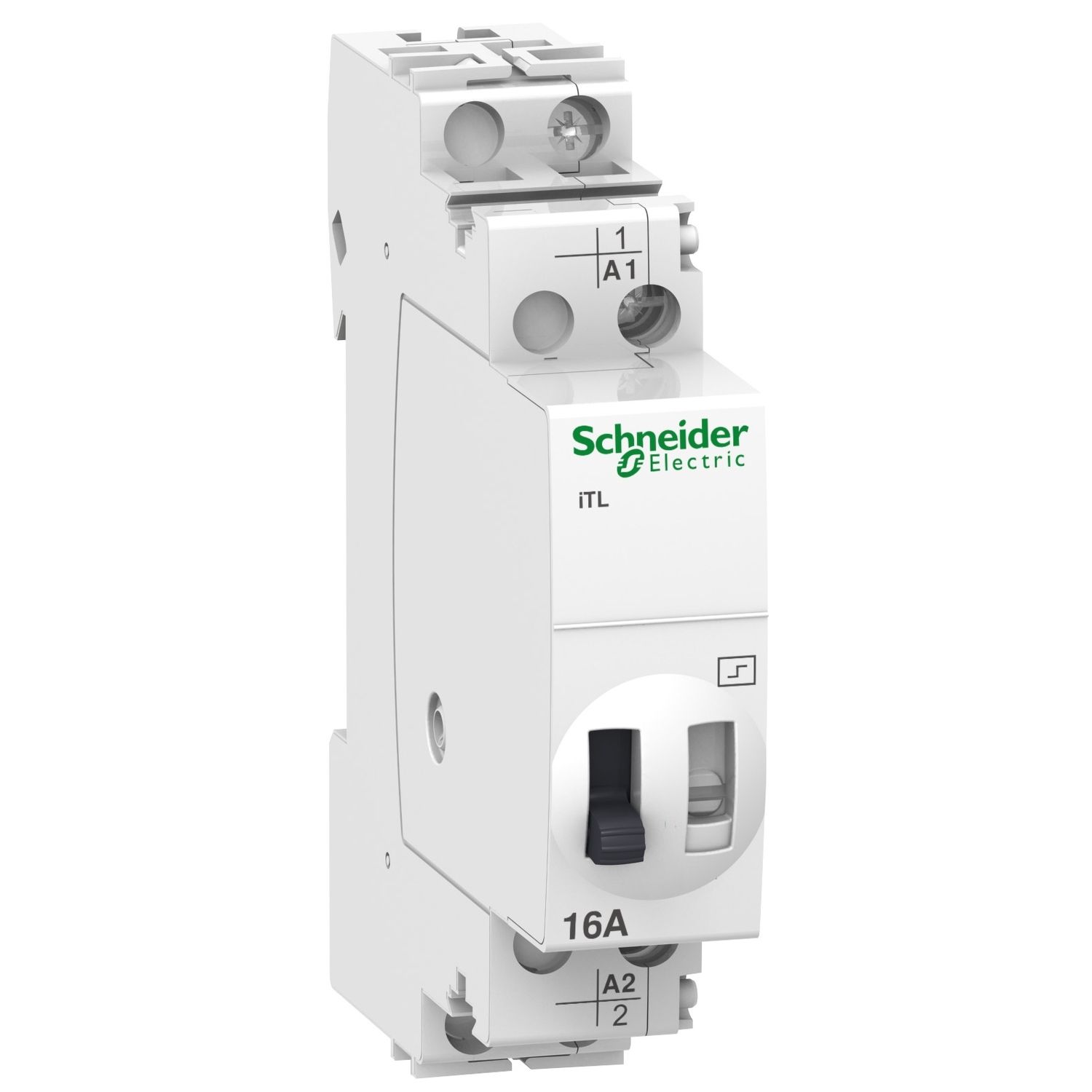

Picture of Acti9, Impulse relay iTL - 1P - 1NO - 16A - coil 24 VDC - 48 VAC 50/60Hz
SKU:

A9C30211

Acti9, Impulse relay iTL - 1P - 1NO - 16A - coil 24 VDC - 48 VAC 50/60Hz

$85.10
Available for Shipping : 17-Nov-2024
Product Selector
Acti9, Impulse relay iTL - 1P - 1NO - 16A - coil 24 VDC - 48 VAC 50/60Hz
  • Consistent with the entire Acti9 offer and with all types of lighting
  • Compliant with EN 669-2-2 and EN 669-1 standards
  • A simple clip-on system for flexible auxiliaries combination and improved robustness
  • Closing of the impulse relay pole(s) is triggered by an impulse on the coil
  • Disconnection of remote control by selector switch for maintenance operation
  • Direct and priority manual control by O-l toggle on front face
  • Can be controlled by an unlimited number of pushbuttons
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iTL is a modular impulse relay. This 1P device has 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute name Attribute value
Main
Device application standard
Network type AC
Device short name iTL
Range Acti9
Range of product iTL
Poles description 1P
Pole contact composition 1 NO
Product name Acti9 iTL
Product or component type impulse relay
[Uc] control circuit voltage 24 V DC, 48 V AC 50/60 Hz
[In] rated current 16 A
Complementary
Compatibility code iTL
Electrical durability AC-22: 100000 cycles, AC-21: 200000 cycles
Control signal type impulse
Switching frequency 100 switching operations/day, 5 switching operations/minute
Connections - terminals power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible with ferrule, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid with cable end, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible with ferrule, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid with cable end, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid
Height 84 mm
Market segment small commercial, residential
9 mm pitches 2
Range compatibility Acti 9 iATLc+c, Acti 9 iETL iTL 16, Acti 9 iATLs, Acti 9 iATLm, Acti 9 iATLc+s, Acti 9 iATLc, Acti 9 iATEt
Tightening torque 1-1 N.m
Mounting mode fixed
Impulse duration 50 ms...1 s
Control type remote and manual control, coil deconnection
Wire stripping length 11 mm
Remote control type illuminated push-button 3 mA
[Ue] rated operational voltage 250 V AC 50/60 Hz
Depth 60 mm
Width 18 mm
Local signalling ON/OFF indication
Mounting support DIN rail
Network frequency 50/60 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Tropicalisation 2
Quality labels VDE, NF, IMQ, KEMA, CEBEC
Product certifications GOST
IP degree of protection IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening)
Pollution degree 3
Noise level 60 dB
Ambient air temperature for operation -20-50 °C
Standards EN 669-2-2, EN 669-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.800 cm
Package 1 Width 7.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 102.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 9.400 cm
Package 2 Length 22.300 cm
Package 2 Weight 1.276 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 15.954 kg

Related products

Picture of Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

A9A27062
$5.22
View Detail
Picture of Acti9 remote indication iATLs

Acti9 remote indication iATLs

A9C15405
$213.46
View Detail
Picture of Acti9, centralized control and remote indication - iATLc+s

Acti9, centralized control and remote indication - iATLc+s

A9C15409
$83.16
View Detail
Picture of Acti9, multi-level centralized control iATLc+c

Acti9, multi-level centralized control iATLc+c

A9C15410
$83.16
View Detail

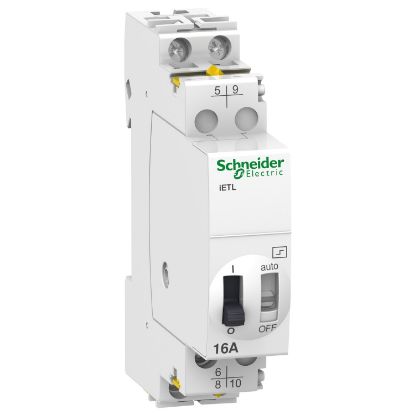

Picture of Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 24VDC - 48VAC 50/60Hz
