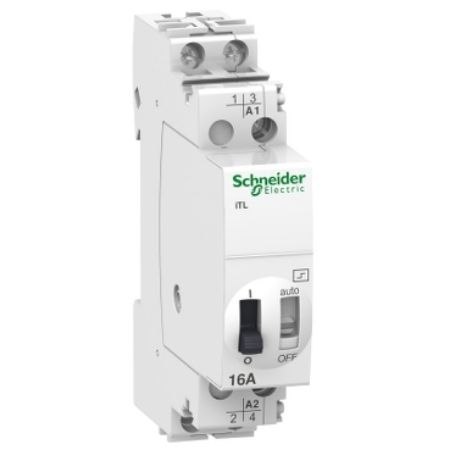

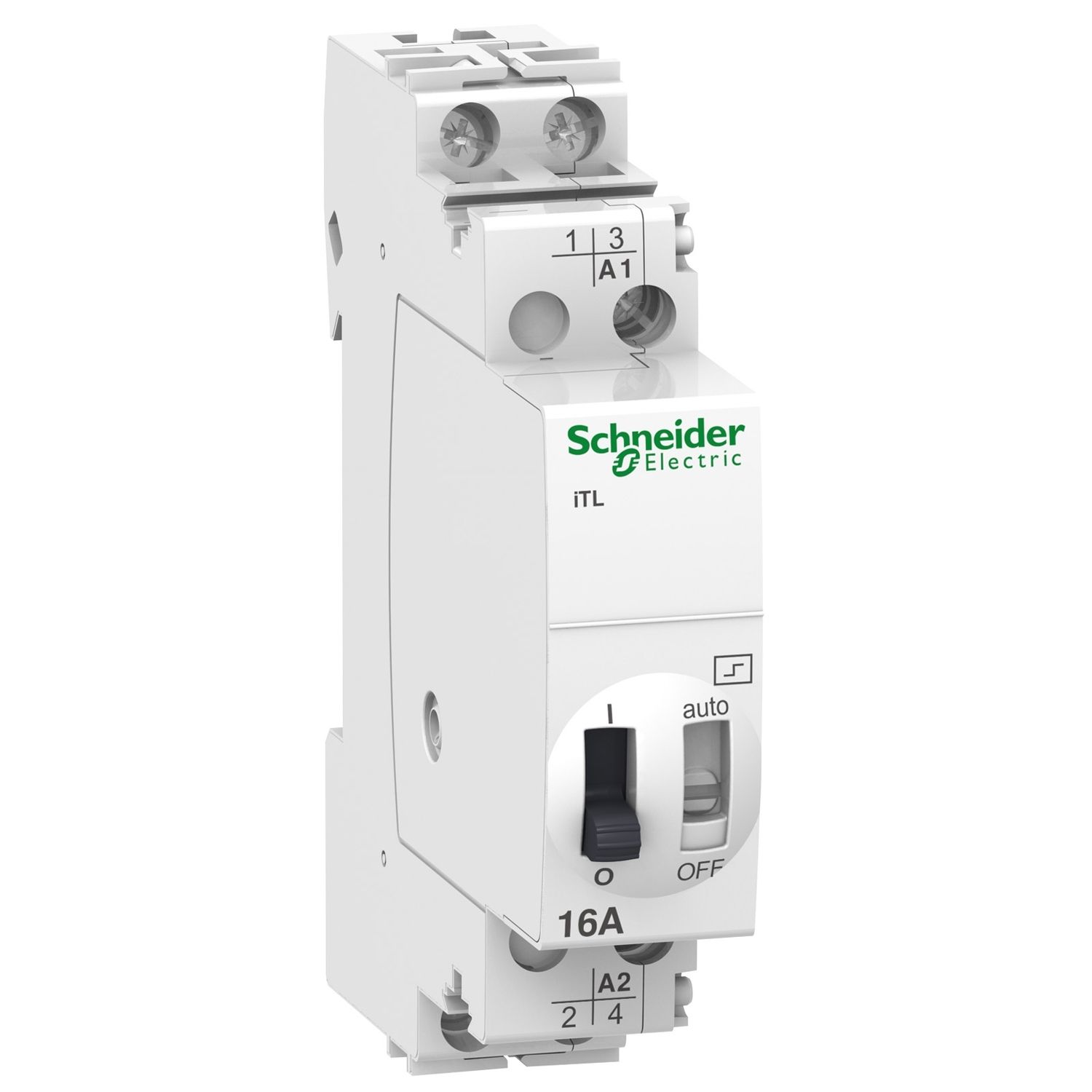

Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 130 VAC 50/60Hz- 48 VDC

$110.02
Product Selector
Acti9, Impulse relay iTL - 2P - 2 NO - 16A - coil 130 VAC 50/60Hz- 48 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute nameAttribute value
Main
Device applicationstandard
Network typeAC
Device short nameiTL
RangeActi9
Range of productiTL
Poles description2P
Pole contact composition2 NO
Product nameActi9 iTL
Product or component typeimpulse relay
[Uc] control circuit voltage48 V DC, 130 V AC 50/60 Hz
[In] rated current16 A
Complementary
Compatibility codeiTL
Electrical durabilityAC-22: 100000 cycles, AC-21: 200000 cycles
Control signal typeimpulse
Switching frequency100 switching operations/day, 5 switching operations/minute
Connections - terminalspower circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible with ferrule, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid with cable end, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible with ferrule, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid with cable end, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid
Height84 mm
Market segmentresidential, small commercial
9 mm pitches2
Range compatibilityActi 9 iATLc+c, Acti 9 iETL iTL 16, Acti 9 iATLs, Acti 9 iATLm, Acti 9 iATLc+s, Acti 9 iATLc, Acti 9 iATEt
Tightening torque1-1 N.m
Mounting modefixed
Impulse duration50 ms...1 s
Control typecoil deconnection, remote and manual control
Wire stripping length11 mm
Remote control typeilluminated push-button 3 mA
[Ue] rated operational voltage250 V AC 50/60 Hz
Depth60 mm
Width18 mm
Local signallingON/OFF indication
Mounting supportDIN rail
Network frequency50/60 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-70 °C
Tropicalisation2
Quality labelsIMQ, KEMA, CEBEC, VDE, NF
Product certificationsGOST
IP degree of protectionIP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening)
Pollution degree3
Noise level60 dB
Ambient air temperature for operation-20-50 °C
StandardsEN 669-2-2, EN 669-1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.8 cm
Package 1 Width7.0 cm
Package 1 Length8.5 cm
Package 1 Weight112.0 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height8.0 cm
Package 2 Width9.0 cm
Package 2 Length23.0 cm
Package 2 Weight1.396 kg
Unit Type of Package 33
Number of Units in Package 3144
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight17.239 kg
