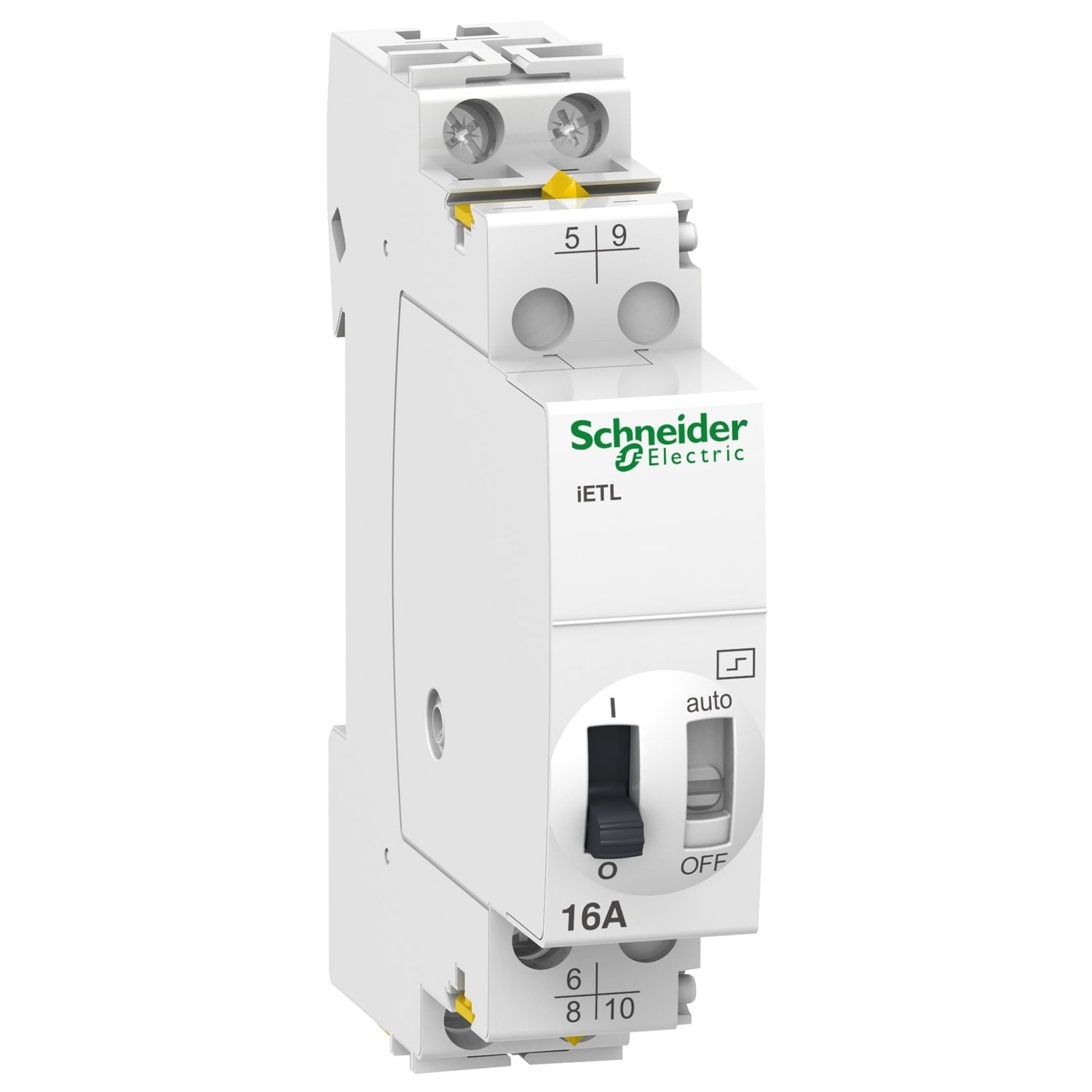

Picture of Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 130VAC 50/60Hz - 48VDC
SKU:

A9C32316

Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 130VAC 50/60Hz - 48VDC

$105.04
Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 130VAC 50/60Hz - 48VDC
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iETL iTL 16 is a modular extension for impulse relay. This 2P device has 1 changeover and 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 130VAC or 48VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute nameAttribute value
Main
Network typeAC
Device short nameiETL iTL 16
RangeActi9
Range of productiTL
Poles description2P
Pole contact composition1 C/O + 1 NO
Product or component typeextension for impulse relay
Relay applicationremote control
[In] rated current16 A
Complementary
Compatibility codeiETL iTL 16
Electrical durabilityAC-22: 100000 cycles, AC-21: 200000 cycles
Control signal typeimpulse
Connections - terminalstunnel type terminals - <= 6 mm²
Switching frequency5 switching operations/minute
Height60 mm
Market segmentsmall commercial, residential
9 mm pitches2
Range compatibilityActi 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Product compatibilityiTL 16A
Colourwhite
Mounting modefixed, on right side of TL
Impulse duration50 ms
Control typeremote control, toggle
Supply inrush power19 VA
Auxiliary connection terminaltunnel type terminalscontrol circuit in 0.5-6 mm²
Remote control typeilluminated push-button 3 mA
[Ue] rated operational voltage415 V AC 50/60 Hz
Depth84 mm
Width18 mm
Local signallingON/OFF indication
Mounting support35 mm symmetrical DIN rail
[Uc] control circuit voltage48 V DC, 130 V AC 50/60 Hz
Network frequency50/60 Hz
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-70 °C
Tropicalisation2 conforming to IEC 60068-1
Quality labelsCEBEC, VDE, KEMA, NF, IMQ
Product certificationsGOST
Pollution degree3
Noise level60 dB
IP degree of protectionIP20 conforming to IEC 60529
Ambient air temperature for operation-20-50 °C
StandardsEN 669-1, EN 669-2-2
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.000 cm
Package 1 Width3.000 cm
Package 1 Length9.300 cm
Package 1 Weight124.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height8.500 cm
Package 2 Width10.000 cm
Package 2 Length26.500 cm
Package 2 Weight1.041 kg
Unit Type of Package 33
Number of Units in Package 372
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight9.910 kg
