A9C30215

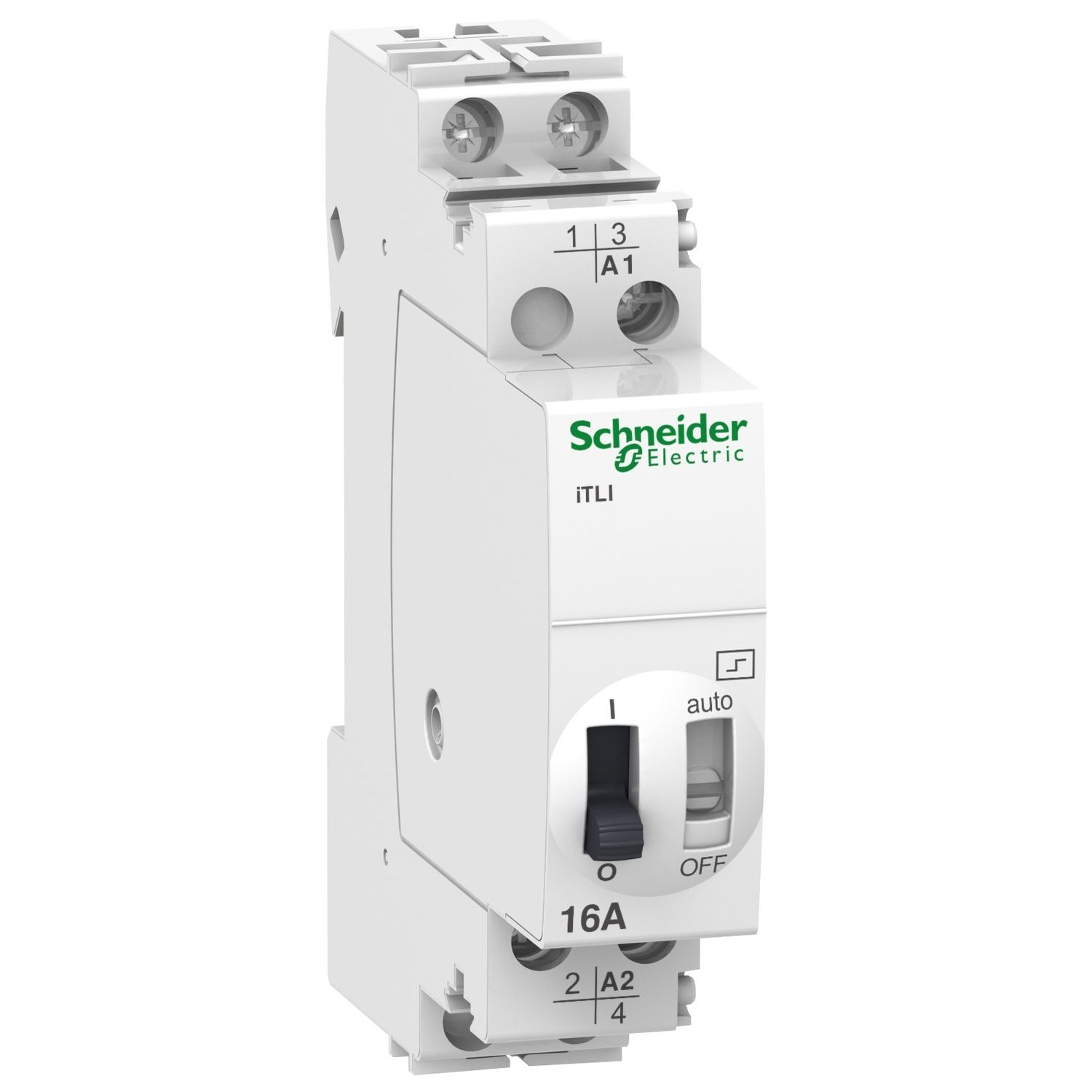

Acti9, Impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 24 VDC - 48 VAC 50/60Hz

$86.48
Available for Shipping : 03-Dec-2024
Product Selector
Acti9, Impulse relay iTLI - 2P - 1NO+1NC - 16A - coil 24 VDC - 48 VAC 50/60Hz
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iTLi is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute name Attribute value
Main
Device application changeover relay
Network type AC
Device short name iTLi
Range Acti9
Range of product iTL
Poles description 2P
Pole contact composition 1 NO + 1 NC
Product name Acti9 iTL
Product or component type impulse relay
[Uc] control circuit voltage 24 V DC, 48 V AC 50/60 Hz
[In] rated current 16 A
Complementary
Compatibility code iTLi
Electrical durability AC-22: 100000 cycles, AC-21: 200000 cycles
Control signal type impulse
Switching frequency 100 switching operations/day, 5 switching operations/minute
Connections - terminals power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible with ferrule, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² flexible, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid with cable end, power circuit: tunnel type terminals 1 cable(s) 1.5-4 mm² rigid, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible with ferrule, control circuit: tunnel type terminals 1 cable(s) 1-4 mm² flexible, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid with cable end, control circuit: tunnel type terminals 1 cable(s) 0.5-4 mm² rigid
Height 84 mm
Market segment small commercial, residential
9 mm pitches 2
Range compatibility Acti 9 iATLc+c, Acti 9 iETL iTL 16, Acti 9 iATLs, Acti 9 iATLm, Acti 9 iATLc+s, Acti 9 iATLc, Acti 9 iATEt
Tightening torque 1-1 N.m
Mounting mode fixed
Impulse duration 50 ms...1 s
Control type remote and manual control, coil deconnection
Wire stripping length 11 mm
Remote control type illuminated push-button 3 mA
[Ue] rated operational voltage 250 V AC 50/60 Hz
Depth 60 mm
Width 18 mm
Local signalling ON/OFF indication
Mounting support DIN rail
Network frequency 50/60 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Tropicalisation 2
Quality labels CEBEC, VDE, NF, IMQ, KEMA
Product certifications GOST, CCC
IP degree of protection IP40 conforming to IEC 60529 (in enclosure), IP20 conforming to IEC 60529 (on opening)
Pollution degree 3
Noise level 60 dB
Ambient air temperature for operation -20-50 °C
Standards EN 669-1, EN 669-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.8 cm
Package 1 Width 7.5 cm
Package 1 Length 9.5 cm
Package 1 Weight 111.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.0 cm
Package 2 Width 9.5 cm
Package 2 Length 23.0 cm
Package 2 Weight 1.394 kg
Unit Type of Package 3 3
Number of Units in Package 3 144
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 17.304 kg
