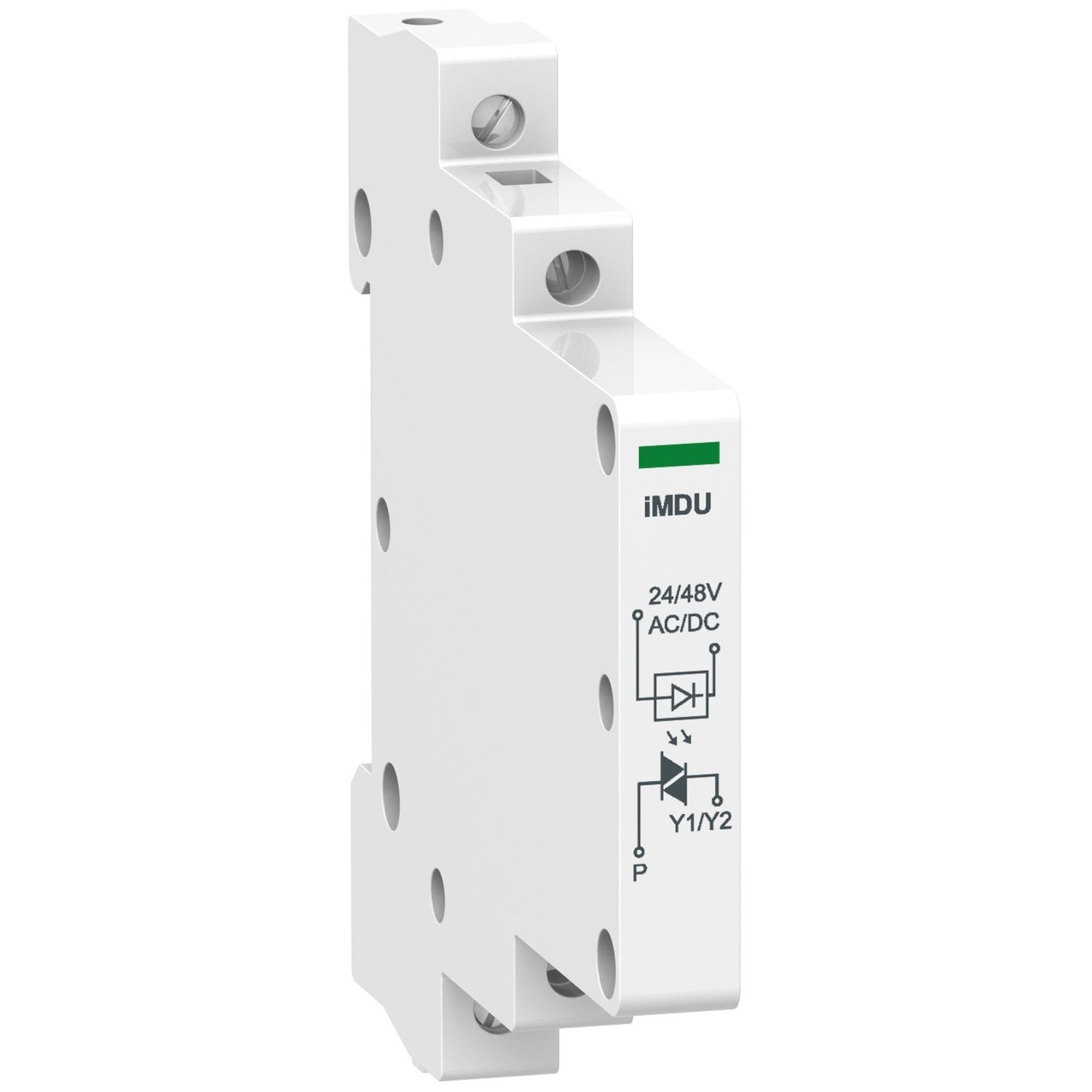

Picture of Acti9, IMDU 24-48V AC or DC voltage adaption module
SKU:

A9C18195

Acti9, IMDU 24-48V AC or DC voltage adaption module

Old price: $193.16 INC GST
$114.14 INC GST
Available for Shipping : 12-Jan-2026
Acti9, IMDU 24-48V AC or DC voltage adaption module
  • Allows safety voltages of 24V and 48V AC/DC to be used on the control inputs
  • Connects to the Reflex iC60 circuit breakers remote controlled by a 220V to 240V control voltage
  • Galvanic isolation for up to 6000V
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Product Page Link
Product Data Sheet
This Acti9 iMDU product is a voltage adaptation module. It is intended to be used with iC60 or Reflex iC60 devices.

Products specifications

Attribute name Attribute value
Main
Device short name iMDU
Range Acti9
Product or component type voltage adaptor
Range of product iC60, Reflex iC60
Complementary
Auxiliary connection terminal tunnel type terminalsflexible with ferrule 1.5-1.5 mm², tunnel type terminalsflexible 1.5-1.5 mm², tunnel type terminalsrigid 1.5-1.5 mm²
Tightening torque 1-1 N.m
Depth 74 mm
Market segment small commercial
Width 9 mm
Compatibility code iMDU
Colour white
Mounting mode fixed
[Ui] rated insulation voltage 500 V
Wire stripping length 6 mm
[Uimp] rated impulse withstand voltage 6 kV
Net weight 53 g
9 mm pitches 1
Range compatibility Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 RCA
Mounting support 35 mm symmetrical DIN rail
Height 78 mm
[Uc] control circuit voltage 24...48 V AC/DC
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-80 °C
IP degree of protection IP40 in modular enclosure (Insulation class II) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation 2
Ambient air temperature for operation -20-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.0 cm
Package 1 Width 7.9 cm
Package 1 Length 9.2 cm
Package 1 Weight 47.0 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.5 cm
Package 2 Width 10.0 cm
Package 2 Length 26.5 cm
Package 2 Weight 627.0 g
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 2.932 kg
