A9C32016

Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 12VAC 50/60Hz - 6VDC

$105.04
Available for Shipping : 17-Dec-2024
Acti9, Extension iETL iTL 16 - 2P - 1C/O + 1NO - 16A - coil 12VAC 50/60Hz - 6VDC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet

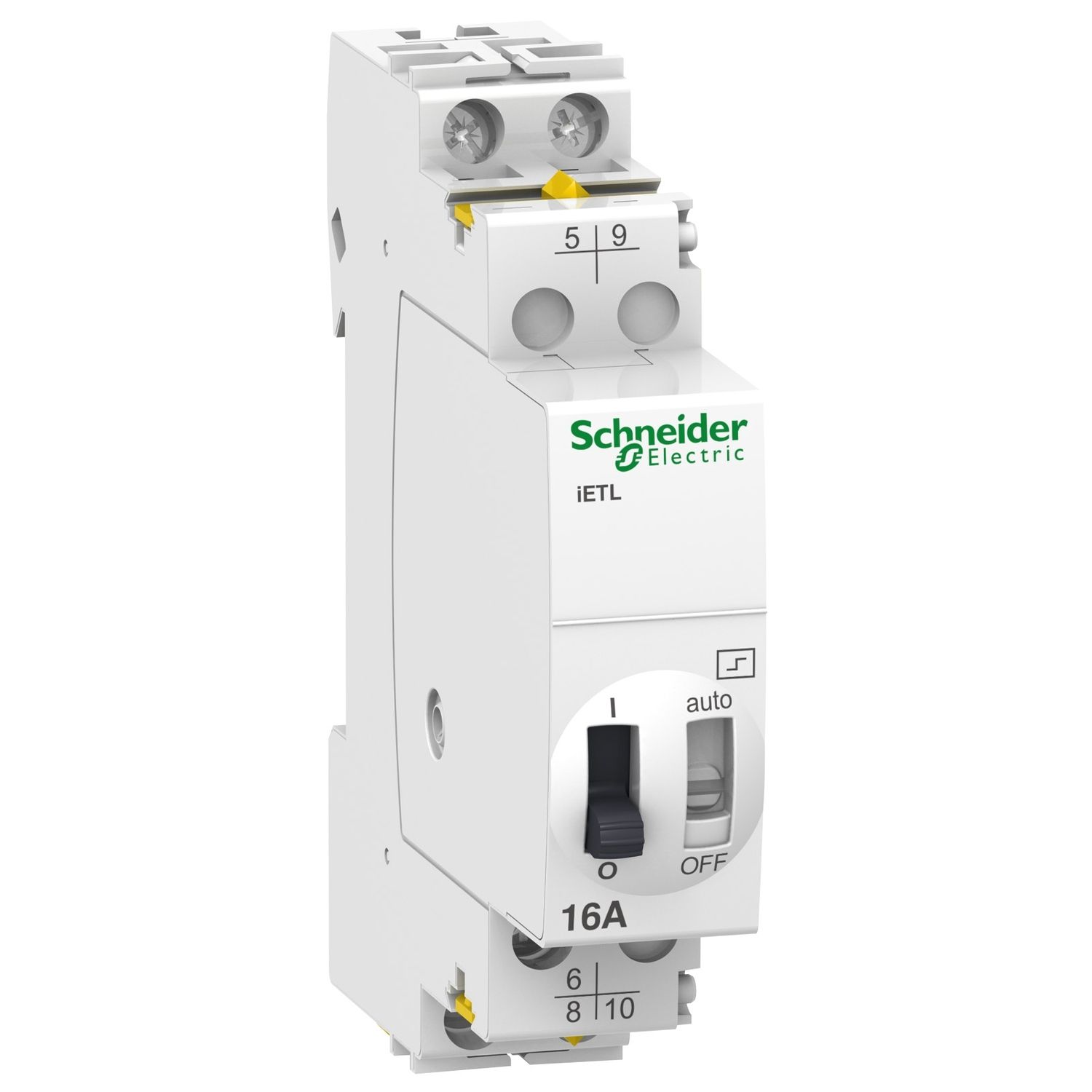

This Acti9 iETL iTL 16 is a modular extension for impulse relay. This 2P device has 1 changeover and 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 12VAC or 6VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.

Products specifications

Attribute name Attribute value
Main
Network type AC
Device short name iETL iTL 16
Range Acti9
Range of product iTL
Poles description 2P
Pole contact composition 1 C/O + 1 NO
Product or component type extension for impulse relay
Relay application remote control
[In] rated current 16 A
Complementary
Compatibility code iETL iTL 16
Electrical durability AC-22: 100000 cycles, AC-21: 200000 cycles
Control signal type impulse
Connections - terminals tunnel type terminals - <= 6 mm²
Switching frequency 5 switching operations/minute
Height 60 mm
Market segment residential, small commercial
9 mm pitches 2
Range compatibility Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Product compatibility iTL 16A
Colour white
Mounting mode fixed, on right side of TL
Impulse duration 50 ms
Control type remote control, toggle
Supply inrush power 19 VA
Auxiliary connection terminal tunnel type terminalscontrol circuit in 0.5-6 mm²
Remote control type illuminated push-button 3 mA
[Ue] rated operational voltage 415 V AC 50/60 Hz
Depth 84 mm
Width 18 mm
Local signalling ON/OFF indication
Mounting support 35 mm symmetrical DIN rail
[Uc] control circuit voltage 6 V DC, 12 V AC 50/60 Hz
Network frequency 50/60 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Tropicalisation 2 conforming to IEC 60068-1
Quality labels KEMA, NF, CEBEC, VDE, IMQ
Product certifications GOST
Pollution degree 3
Noise level 60 dB
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Standards EN 669-1, EN 669-2-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 125 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.5 cm
Package 2 Width 10 cm
Package 2 Length 27 cm
Package 2 Weight 1.044 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 9.92 kg
