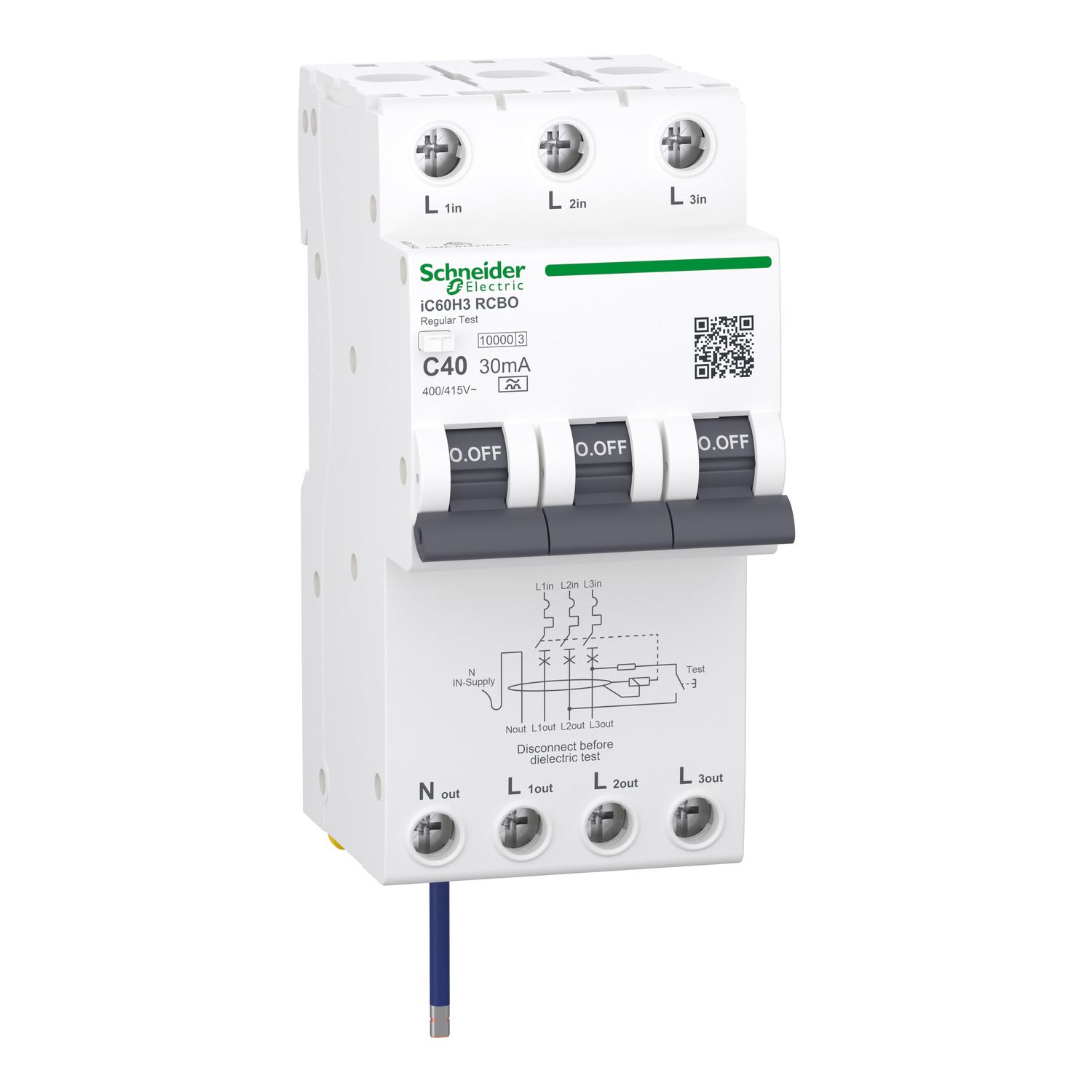

Picture of Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H3, 3P+Ns, C Curve, 40A, 30mA, A type, 10000A
SKU:

A9DC1940

Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H3, 3P+Ns, C Curve, 40A, 30mA, A type, 10000A

$314.00 INC GST
Available for Shipping : 14-May-2025
Product Selector
Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H3, 3P+Ns, C Curve, 40A, 30mA, A type, 10000A
  • The Acti9 RCBO is compact with 3 modules of size
  • Its simple to upgrade from MCB to RCBO
  • Its faster to install with lesser wiring connections
  • The earth leakage protection class is A type. The earth-leakage protection time delay is instantaneous
  • The iC60H3 RCBOs are compatible with Acti9 System and can be mounted on Chassis or DIN Rail type architectures
  • It’s convenient for additions or repairs on existing installations
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+Ns circuit breaker with 3 protected pole,40A In rated current and C tripping curve The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with AS/NZS 61009.1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400/ 415 VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz/60Hz It is DIN rail or Chassis mountable. The width in 9mm pitches is 6. The product color is white (RAL9003). The dimensions are (W) 54mm x (H) 112mm x (D) 77.2mm. The weight is 462g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) The operating temperature is from -5°C to +60°C. The storage temperature is from -25°C to +70°C.

Products specifications

Attribute name Attribute value
Main
Circuit breaker application distribution
Device short name iC60H3 RCBO
Breaking capacity 10000 A Icn at 400/415 V
Range Acti9
Earthing system TN
Curve code C
Poles description 3P + Ns
Product name Acti9 iC60 RCBO
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
[In] rated current 40 A at 30 °C
Complementary
Provision for padlocking lead seal, padlockable with padlock Ø 4 mm
[Uimp] rated impulse withstand voltage 4 kV
Grid distance 45 mm
Suitability for isolation yes conforming to IEC 61009-1
Electrical durability 5000 cycles
Connections - terminals screw clamp terminal (top) 1-16 mm² flexible, screw clamp terminal (top) 1-25 mm² rigid without cable end
Comb busbar and distribution block compatibility YES
Earth-leakage protection class type A
Locking options description ON/OFF locking facilities
Earth-leakage protection integrated
Number of protected poles 3
Test button operating voltage 260-457 V
Residual current tripping technology voltage dependent
Height 112 mm
[Ics] rated service breaking capacity 7500 A
Trip unit technology thermal-magnetic
Neutral position left
[Ui] rated insulation voltage 500 V
Earth-leakage protection time delay instantaneous
Net weight 462 g
Surge current 250 A
9 mm pitches 6
Device location in system outgoer
Network type AC
Tightening torque power circuit: 2.5-2.5 N.m bottom, power circuit: 2.5-2.5 N.m top
Colour white
Mechanical durability 20000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length power circuit: 14 mm for top connection, power circuit: 11 mm for bottom connection
[Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand
[Ue] rated operational voltage 400/415 V
Depth 77.2 mm
Width 54 mm
Local signalling ON/OFF indication
Limitation class 3
Mounting support chassis, DIN rail
Network frequency 50/60 Hz
Operating voltage earthleakage protection 150-457 V
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -25-70 °C
Tropicalisation 2
IP degree of protection IP20
Ambient air temperature for operation -5-60 °C
Standards IEC 61009-2-2, IEC 61009-1, AS/NZS 61009.1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.7 cm
Package 1 Width 6.6 cm
Package 1 Length 9 cm
Package 1 Weight 539 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.376 kg
