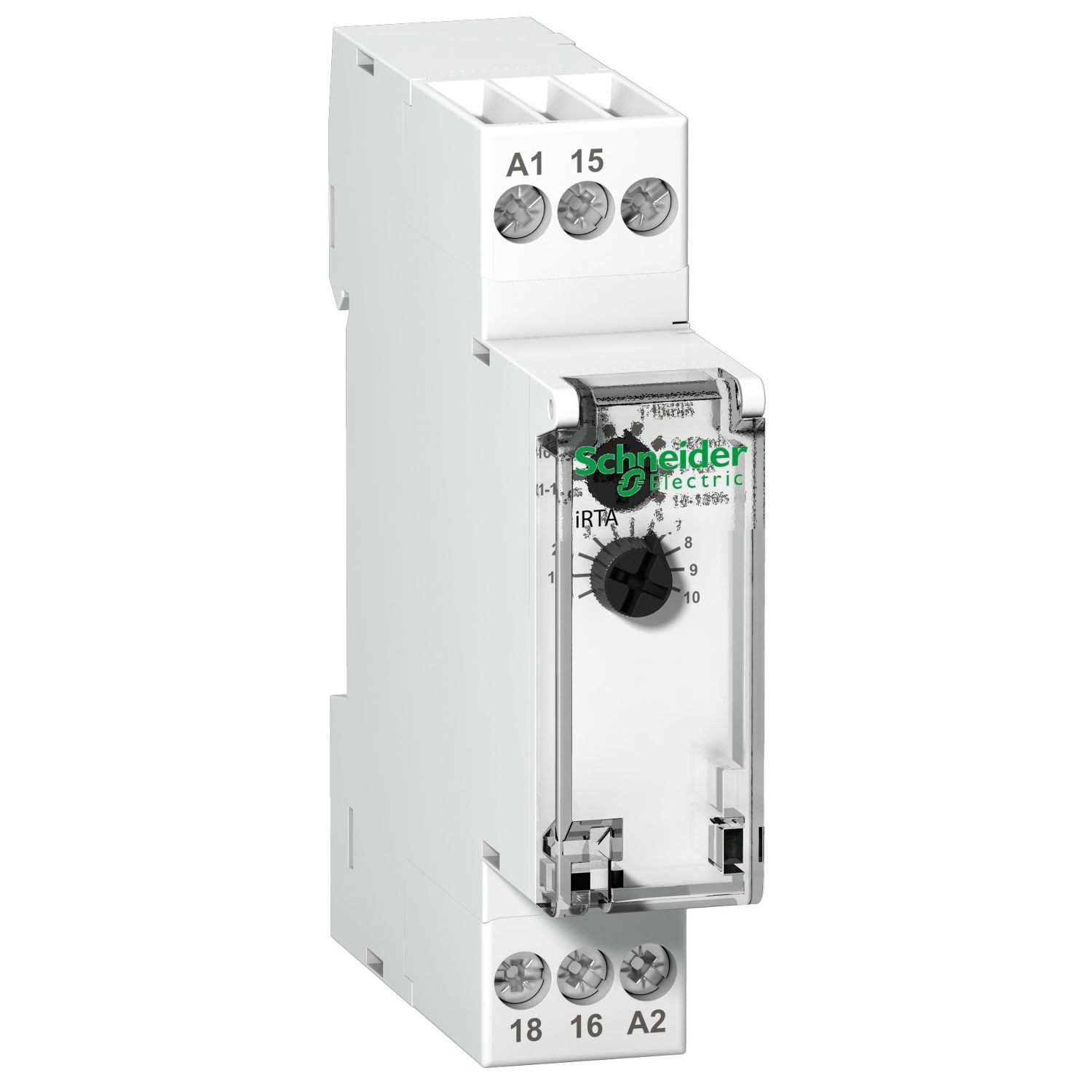

Picture of Acti9, IRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC
SKU:

A9E16065

Acti9, IRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC

$163.98
Available for Shipping : 24-Nov-2024
Product Selector
Acti9, IRTA relay - delays energizing of a load-1C/O - Uc 24-240 VAC/24VDC
  • Delays energizing of a load
  • Single time delay cycle starts at the switching ON of the iRTA relay power supply
  • The load is energized at the end of time delay T
  • Compatible with 35mm symmetrical DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 iRTA is an operating Time delay relay. The time delay range is 0.1s to 100h. It delays emergizing of a load. The single time daily cycle starts at the switching ON of the iRTA relay power supply. The Uc control and power supply voltage is from 24VAC to 240VAC +/- 10% and 24VDC +/- 10%. The load is energized at the end of the time delay T. The operating frequency is 50Hz or 60Hz. The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 90mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.

Products specifications

Attribute name Attribute value
Main
Device short name iRTA
Time delay type delays energizing of a load
Range Acti9
Signal contacts composition 1 C/O
Product name iRT
Product or component type relay
Relay application time delay relay
Complementary
Type of setting rotary knob: time delay configuration
Compatibility code iRTA
[Ie] rated operational current 0.01 A at 5 V DC, 8 A at 250 V DC, 8 A at 250 V AC
Colour white
Electrical durability AC-1: 100000 cycles
Mounting mode fixed
Impulse duration > 100 ms
Repeat accuracy +/- 0.5 %
Connections - terminals tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid without cable end, tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid with cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible without cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible with cable end
Height 93 mm
[Us] rated supply voltage 24 V DC, 24...240 V AC at 50/60 Hz
Depth 72 mm
Accuracy error +/- 10 %
Market segment residential, small commercial
Width 18 mm
Mechanical durability 5000000 cycles
Local signalling LED green for power ON, LED, flashing for time delay
Time delay range 0.1...360000 s
Net weight 0.065 kg
9 mm pitches 2
Mounting support 35 mm symmetrical DIN rail
[Uc] control circuit voltage 24 V DC, 24...240 V AC 50/60 Hz
Undervoltage behaviour 100 ms
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20
Immunity to microbreaks 20 ms
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.4 cm
Package 1 Width 7.4 cm
Package 1 Length 10.3 cm
Package 1 Weight 80 g
