A9E16069

Acti9, Blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC

$163.98
Available for Shipping : 24-Nov-2024
Product Selector
Acti9, Blinking relay iRTL - 1C/O - Uc 24-240 VAC/24VDC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet

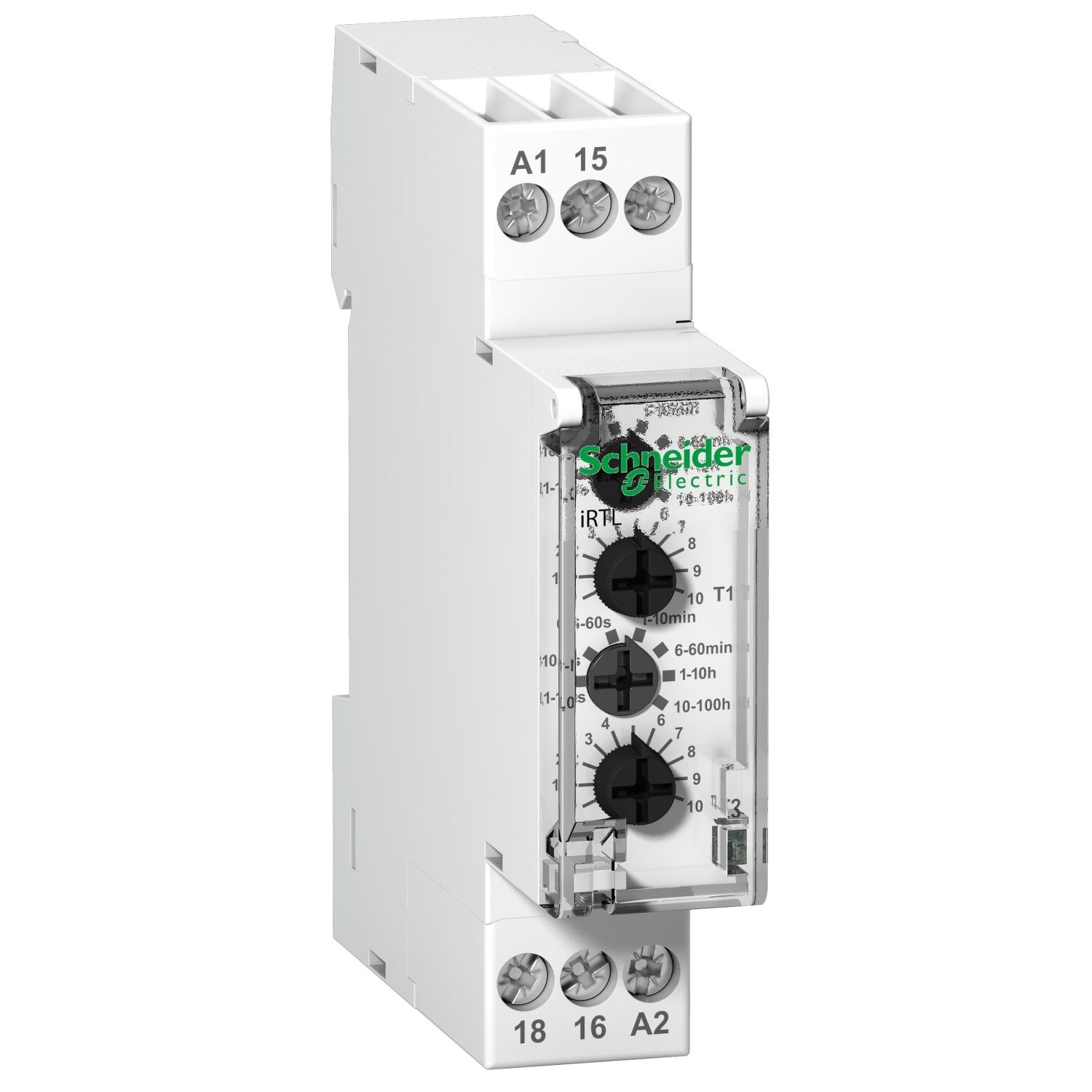

This Acti9 iRTL product is a Time delay relay. The time delay range is from 0.1s to 360000s. It delays de-energizing of a load upon opening of an auxiliary contact (push button). The load is de-energized at the end of time delay T. The operating frequency is 50Hz or 60Hz. The Uc control and power supply voltage is from 24VAC to 240VAC +/-10% and 24VDC +/-10%. The single time delay cycle starts only upon release of an auxiliary contact (push button). The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 93mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.

Products specifications

Attribute name Attribute value
Main
Device short name iRTL
Time delay type blinker
Range Acti9
Signal contacts composition 1 C/O
Product name iRT
Product or component type relay
Relay application time delay relay
Complementary
Type of setting rotary knob: time delay configuration
Compatibility code iRTL
[Ie] rated operational current 0.01 A at 5 V DC, 8 A at 250 V DC, 8 A at 250 V AC
Colour white
Electrical durability AC-1: 100000 cycles
Mounting mode fixed
Impulse duration > 100 ms
Repeat accuracy +/- 0.5 %
Connections - terminals tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid without cable end, tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid with cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible without cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible with cable end
Height 93 mm
[Us] rated supply voltage 24 V DC, 24...240 V AC at 50/60 Hz
Depth 72 mm
Accuracy error +/- 10 %
Market segment small commercial, residential
Width 18 mm
Mechanical durability 5000000 cycles
Local signalling LED, flashing for time delay
Time delay range 0.1...360000 s
Net weight 0.065 kg
9 mm pitches 2
Mounting support 35 mm symmetrical DIN rail
[Uc] control circuit voltage 24 V DC, 24...240 V AC 50/60 Hz
Undervoltage behaviour 100 ms
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20
Immunity to microbreaks 20 ms
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.200 cm
Package 1 Width 7.400 cm
Package 1 Length 10.200 cm
Package 1 Weight 80.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.625 kg
