Picture of Acti9, IRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC
SKU:

A9E16070

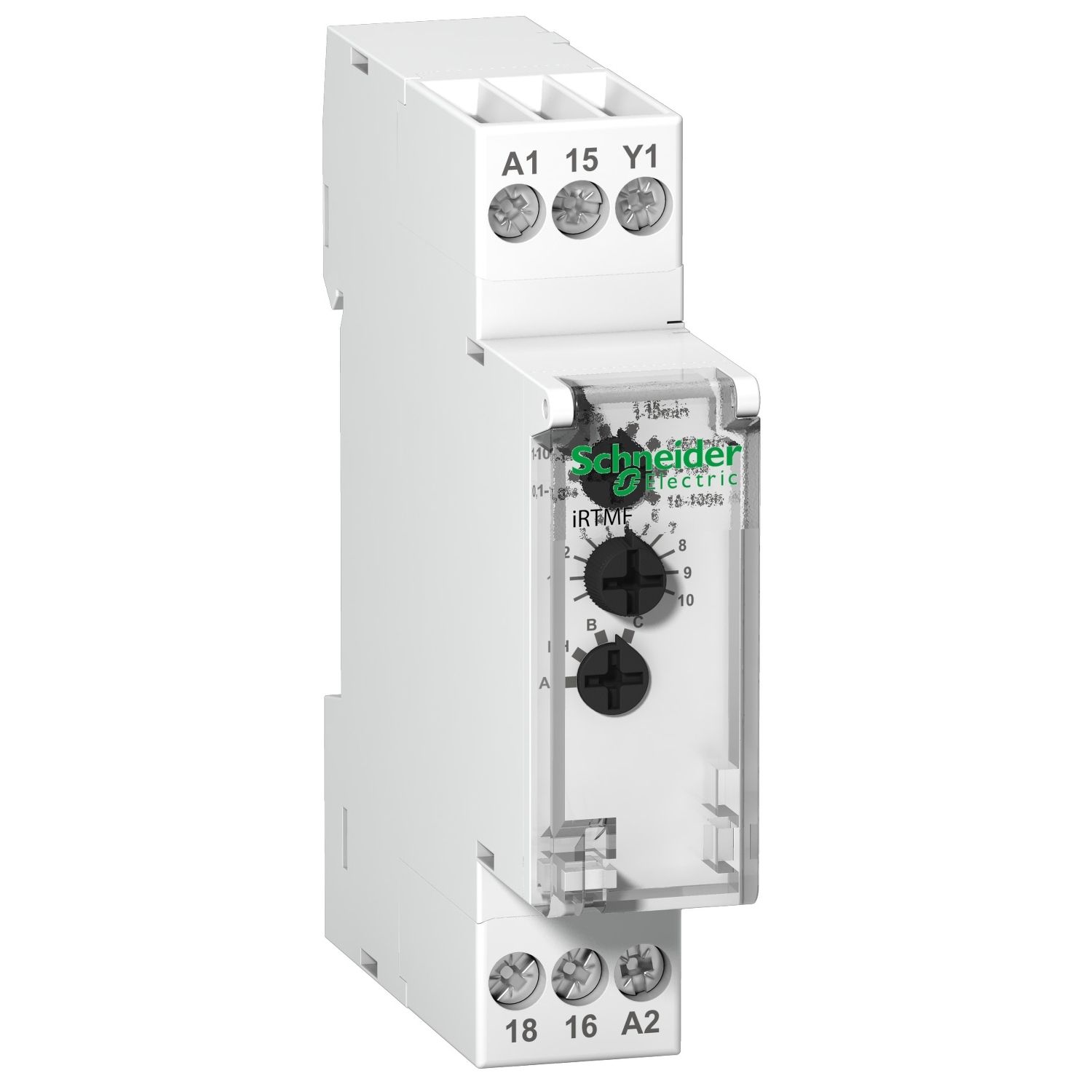

Acti9, IRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC

$227.29
Product Selector
Acti9, IRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC
  • Allows A, B, C, or H types of time delays
  • Depending on the choice, the iRTMF generates time delay cycles for the iRTA relay
  • Compatible with 35mm symmetrical DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iRTMF is a Time delay relay. The time delay range is from 0.1s to 100h. It allows on of the four types of time delay to be selected A, B, C or H. The Uc control and power supply voltage is from 12VAC to 240VAC +/-10% and 12VDC to 240VDC +/-10%. Depending on the choice the iTRMF generates time delay cycles for iRTA, iRTB, iRTC or iRTH relays. The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 0.33A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 90mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameiRTMF
Time delay typemultifunction
RangeActi9
Signal contacts composition1 C/O
Product nameiRT
Product or component typerelay
Relay applicationtime delay relay
Complementary
Type of settingrotary knob: time delay configuration, A B C or H: 4 time delay types selection
Compatibility codeiRTMF
[Ie] rated operational current0.01 A at 5 V DC, 8 A at 250 V DC, 8 A at 250 V AC
Colourwhite
Electrical durabilityAC-1: 100000 cycles
Mounting modefixed
Impulse duration> 100 ms
Repeat accuracy+/- 0.5 %
Connections - terminalstunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid without cable end, tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid with cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible without cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible with cable end
Height93 mm
[Us] rated supply voltage12...240 V DC, 12...240 V AC at 50/60 Hz
Depth72 mm
Accuracy error+/- 10 %
Market segmentresidential, small commercial
Width18 mm
Mechanical durability5000000 cycles
Local signallingLED, flashing for time delay
Time delay range0.1...360000 s
Net weight0.065 kg
9 mm pitches2
Mounting support35 mm symmetrical DIN rail
[Uc] control circuit voltage12...240 V DC, 12...240 V AC 50/60 Hz
Undervoltage behaviour100 ms
Environment
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP20
Immunity to microbreaks20 ms
Ambient air temperature for operation-5-55 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height2.2 cm
Package 1 Width7.4 cm
Package 1 Length10.2 cm
Package 1 Weight82 g
Unit Type of Package 22
Number of Units in Package 240
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight3.814 kg
