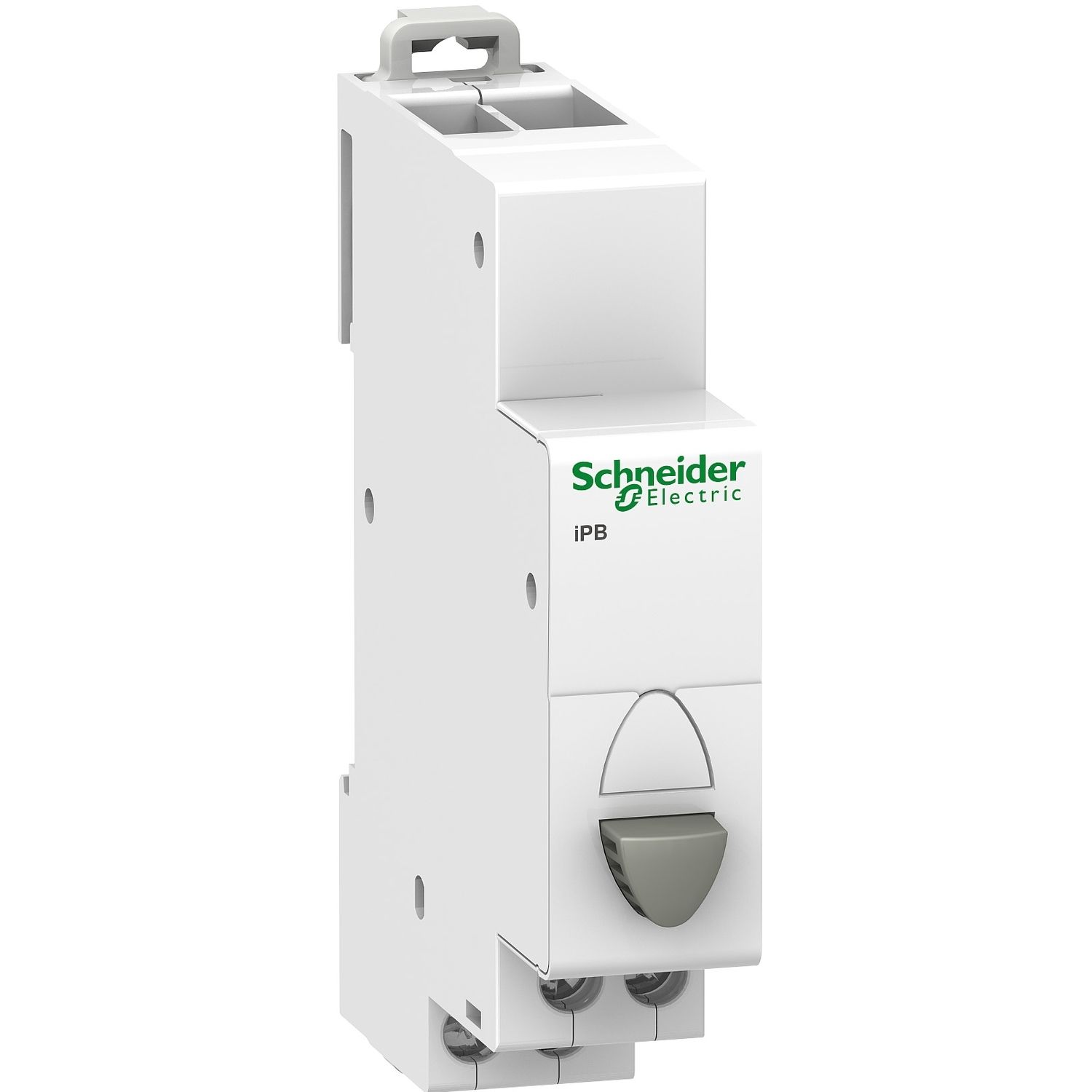

Picture of Acti9, iPB 1NO single push button grey
SKU:

A9E18032

Acti9, iPB 1NO single push button grey

$34.03 INC GST
Available for Shipping : 23-Jan-2025
Product Selector
Acti9, iPB 1NO single push button grey
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iPB is a modular pusbutton used to control electric circuits by means of pulses. It is a single normaly open contact (NO). The push-button is grey. The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 71mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -35°C to +70°C. The storage temperature is from -40°C to +80°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPB
Range Acti9
Product name Acti9 iPB
Product or component type push-button
Standards IEC 60669-1, IEC 60947-5-1
Range of product iPB
Complementary
[Ue] rated operational voltage 250 V AC
Tightening torque 1-1 N.m
Depth 71 mm
Market segment small commercial, residential
Width 18 mm
Compatibility code iPB
[Ie] rated operational current 20 A
Colour white
Electrical durability AC-22: 30000 cycles AC 50/60 Hz
Mounting mode fixed
Contacts type and composition 1 NO
Control type 1 push-button grey
Wire stripping length 9 mm
Connections - terminals staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid
Comb busbar and distribution block compatibility upside: ProDis, upside: Librio, upside: Clario
9 mm pitches 2
Mounting support 35 mm symmetrical DIN rail
Height 82 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-80 °C
Tropicalisation 2
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 7.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 38.800 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.000 cm
Package 2 Width 10.000 cm
Package 2 Length 23.300 cm
Package 2 Weight 517.000 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.074 kg
Unit Type of Package 4 4
Number of Units in Package 4 864
Package 4 Height 45.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 52.592 kg
