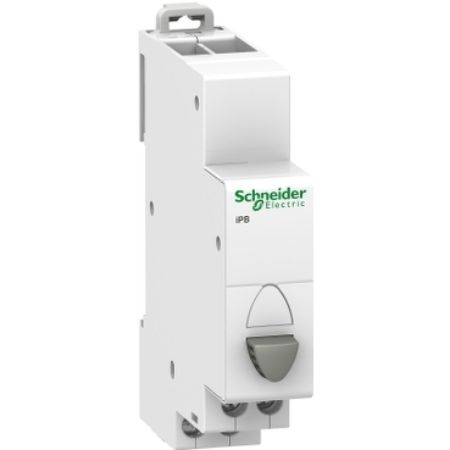

Picture of Acti9, iPB 1NO-1NC single push button grey
SKU:

A9E18033

Acti9, iPB 1NO-1NC single push button grey

$40.61
Product Selector
Acti9, iPB 1NO-1NC single push button grey
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iPB product is a modular pusbutton used to control electric circuits. It has normaly open and normally close contacts (1 NO + 1NC). The push-button is grey. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m.

Products specifications

Attribute nameAttribute value
Main
Device short nameiPB
RangeActi9
Product nameActi9 iPB
Product or component typepush-button
StandardsIEC 60947-5-1, IEC 60669-1
Range of productiPB
Complementary
[Ue] rated operational voltage250 V AC
Tightening torque1-1 N.m
Depth71.5 mm
Market segmentresidential, small commercial
Width18 mm
Compatibility codeiPB
[Ie] rated operational current20 A
Colourwhite
Electrical durabilityAC-22: 30000 cycles AC 50/60 Hz
Mounting modefixed
Contacts type and composition1 NO + 1 NC
Control type1 push-button grey
Wire stripping length9 mm
Connections - terminalsstaggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid
Comb busbar and distribution block compatibilityupside: ProDis, upside: Librio, upside: Clario
9 mm pitches2
Mounting support35 mm symmetrical DIN rail
Height82 mm
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-80 °C
Tropicalisation2
Ambient air temperature for operation-35-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.5 cm
Package 1 Width2 cm
Package 1 Length8 cm
Package 1 Weight44 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height8 cm
Package 2 Width10 cm
Package 2 Length23 cm
Package 2 Weight587 g
Unit Type of Package 33
Number of Units in Package 3108
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight5.776 kg
