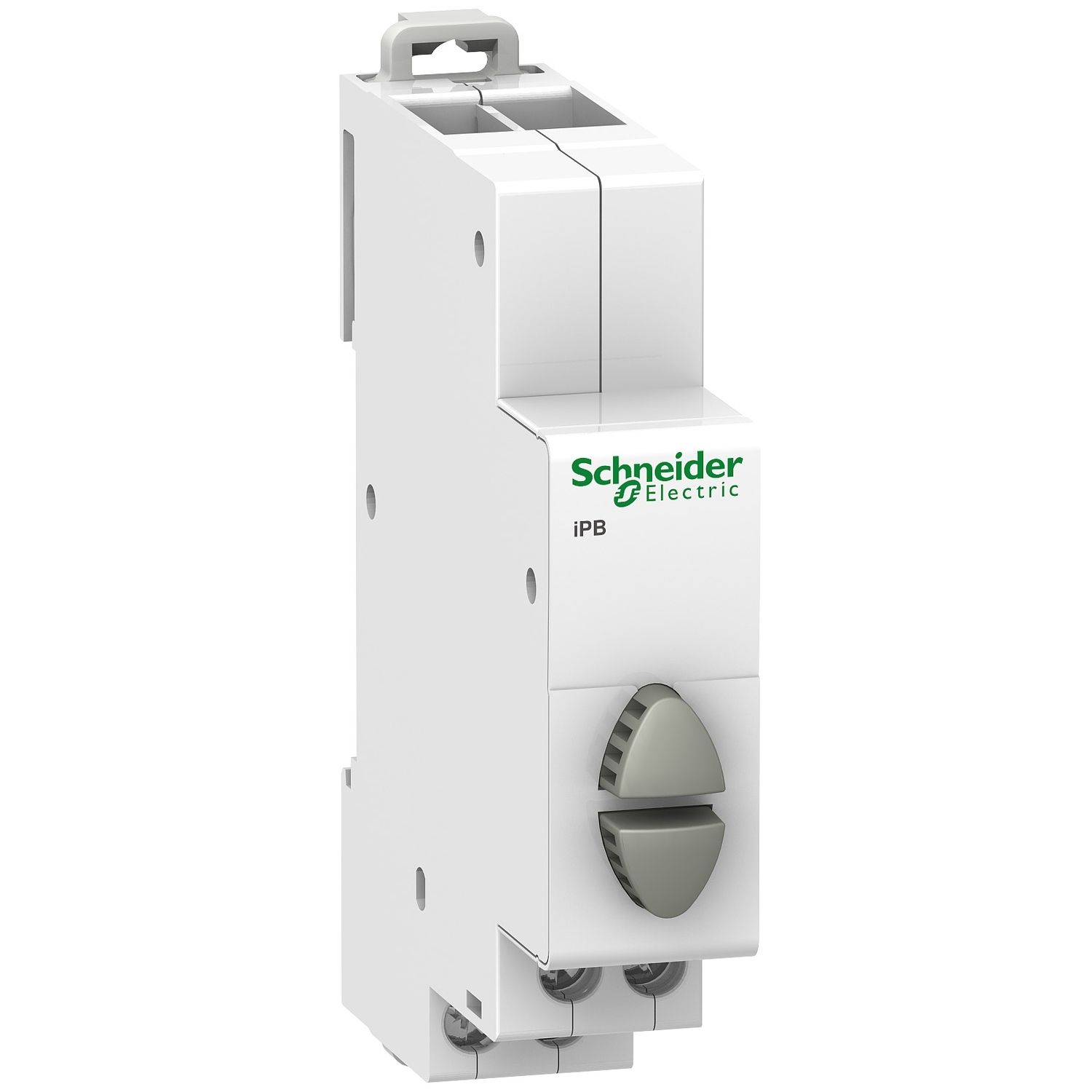

Picture of Acti9, iPB 1NO-1NO double push button grey
SKU:

A9E18035

Acti9, iPB 1NO-1NO double push button grey

$44.56 INC GST
Available for Shipping : 11-Feb-2025
Product Selector
Acti9, iPB 1NO-1NO double push button grey
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iPB product is a modular pusbutton used to control electric circuits. It has a normally open contact (1 NO) for each push-button. The 2 push-buttons are grey. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m.

Products specifications

Attribute name Attribute value
Main
Device short name iPB
Range Acti9
Product name Acti9 iPB
Product or component type push-button
Standards IEC 60669-1, IEC 60947-5-1
Range of product iPB
Complementary
[Ue] rated operational voltage 250 V AC
Tightening torque 1-1 N.m
Depth 71.5 mm
Market segment residential, small commercial
Width 18 mm
Compatibility code iPB
[Ie] rated operational current 20 A
Colour white
Electrical durability AC-22: 30000 cycles AC 50/60 Hz
Mounting mode fixed
Contacts type and composition 1 NO
Control type 2 push-button grey
Wire stripping length 9 mm
Connections - terminals staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid
Comb busbar and distribution block compatibility upside: ProDis, upside: Librio, upside: Clario
9 mm pitches 2
Mounting support 35 mm symmetrical DIN rail
Height 82 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-80 °C
Tropicalisation 2
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 2 cm
Package 1 Length 8 cm
Package 1 Weight 46 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8 cm
Package 2 Width 10 cm
Package 2 Length 23 cm
Package 2 Weight 602 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.904 kg
