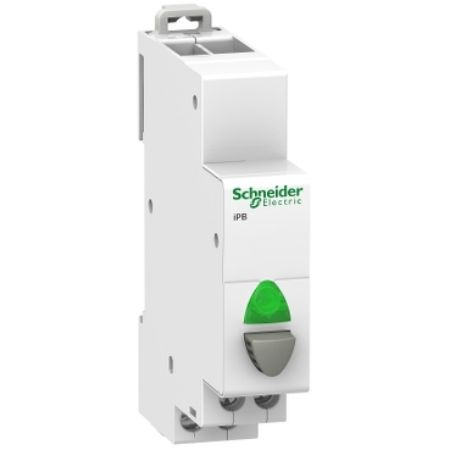

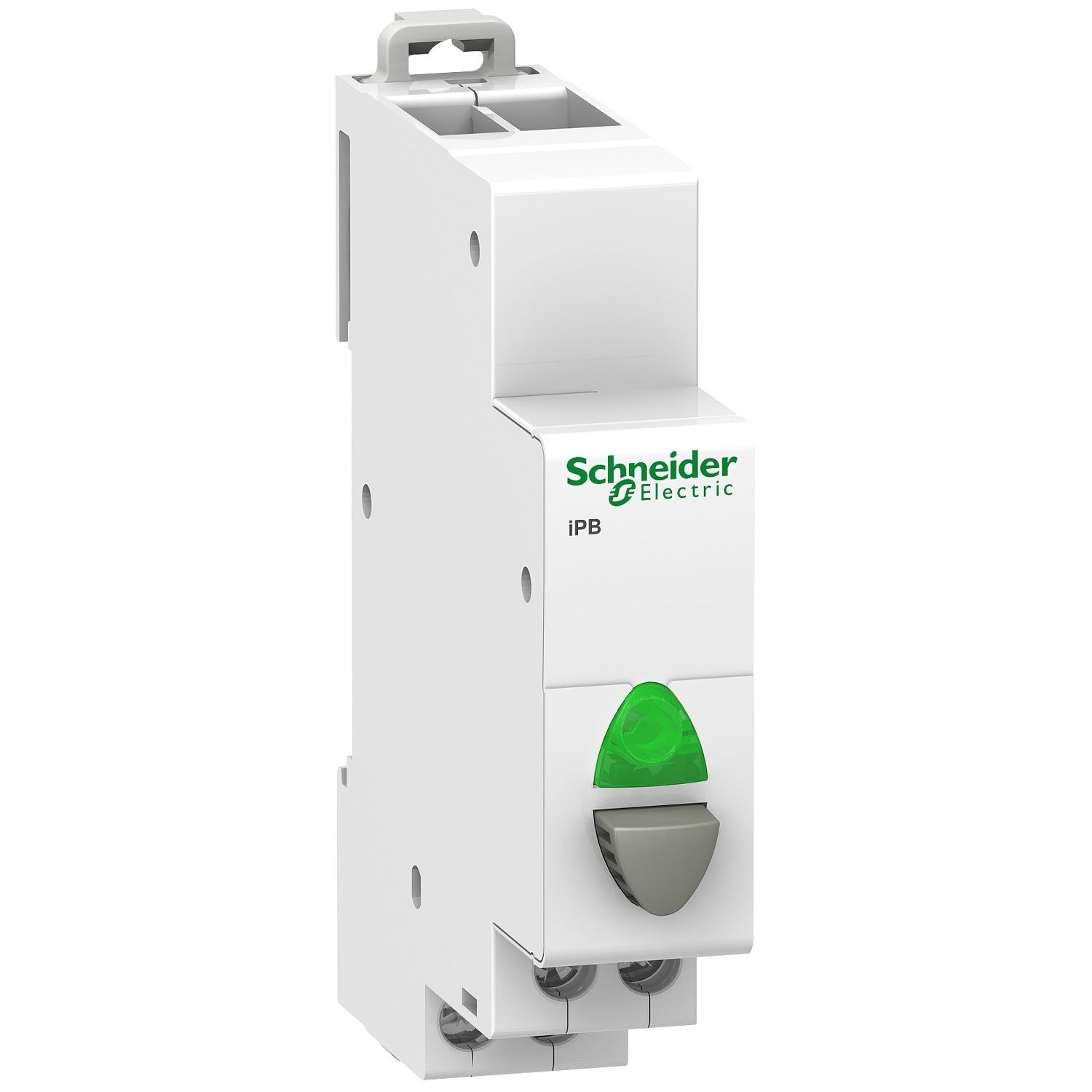

Picture of Acti9, iPB 1NO single push button grey - indicator light Green 110-230Vac
SKU:

A9E18036

Acti9, iPB 1NO single push button grey - indicator light Green 110-230Vac

$67.19
Product Selector
Acti9, iPB 1NO single push button grey - indicator light Green 110-230Vac
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iPB is a modular pusbutton with indicator light used to control electric circuits by means of pulses. It is a single normaly open contact (NO) with a maintenance-free LED light indicator. The push-button is grey. The LED is green and non-interchangeable. The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The power supply voltage of the indicator light is from 110VAC to 230VAC. The consumption of the LED indicator light is 0.3W. The service life of the LED is 100000 hours of constant lighting efficiency. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 71mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -35°C to +70°C. The storage temperature is from -40°C to +80°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.

Products specifications

Attribute nameAttribute value
Main
Device short nameiPB
RangeActi9
Product nameActi9 iPB
Product or component typepush-button
StandardsIEC 60947-5-1, IEC 60669-1
Range of productiPB
Complementary
[Ue] rated operational voltage250 V AC
Tightening torque1-1 N.m
Depth71.5 mm
Market segmentsmall commercial, residential
Width18 mm
Compatibility codeiPB
[Ie] rated operational current20 A
Colourwhite
Electrical durabilityAC-22: 30000 cycles AC 50/60 Hz
Mounting modefixed
Contacts type and composition1 NO
Control type1 push-button grey
Wire stripping length9 mm
Connections - terminalsstaggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid
Signalling circuit voltageAC: 110...230 V 50/60 Hz
Comb busbar and distribution block compatibilityupside: ProDis, upside: Librio, upside: Clario
Local signallingLED indicator green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
9 mm pitches2
Mounting support35 mm symmetrical DIN rail
Height82 mm
Environment
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-80 °C
Tropicalisation2
Ambient air temperature for operation-35-70 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.5 cm
Package 1 Width2 cm
Package 1 Length8 cm
Package 1 Weight46 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height8 cm
Package 2 Width10 cm
Package 2 Length23 cm
Package 2 Weight607 g
Unit Type of Package 33
Number of Units in Package 3108
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight5.95 kg
