Picture of Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions
SKU:

A9E18070

Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions

$40.07
Product Selector
Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Product Page Link
Product Data Sheet

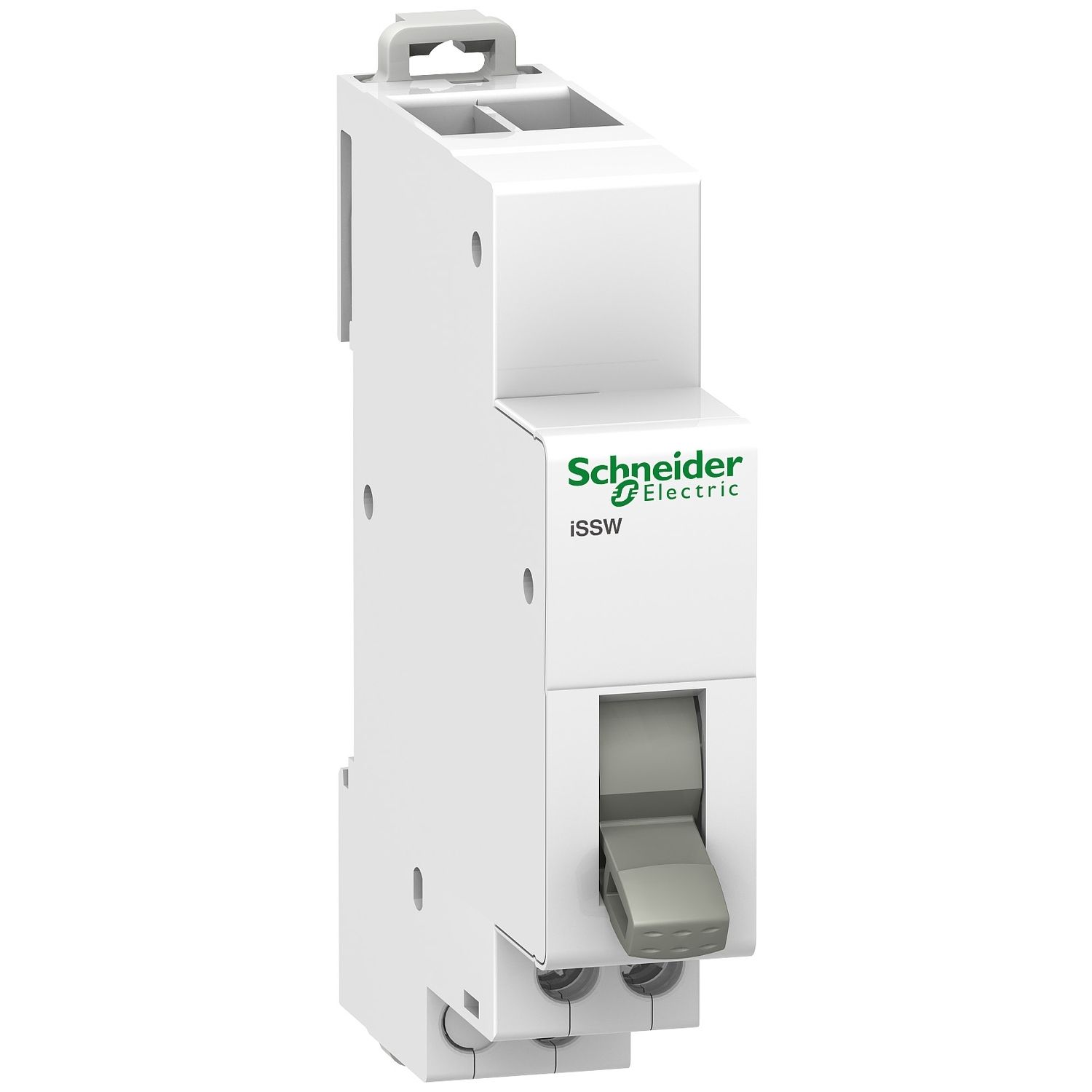

This Acti9 iSSW is a linear switch used for the manual control of electric circuits. It is 2 positions switch with 1 changeover contact (1 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +50°C. The storage temperature is from -40°C to +70°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.

Products specifications

Attribute nameAttribute value
Main
Device short nameiSSW
Device applicationelectrical circuit control
RangeActi9
Range of productActi9
[Ue] rated operational voltage250 V AC 50/60 Hz
Poles description1P
Contacts type and composition1 C/O
Product nameActi9 iSSW
Product or component typechangeover switch
StandardsIEC 60947-5-1, IEC 60669-1
Complementary
Tightening torque1-1 N.m
Colourwhite
Compatibility codeiSSW
Electrical durabilityAC-22: 30000 cycles cos Phi = 0.8
Mounting modeclip-on
Wire stripping length9 mm
Connections - terminalsstaggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² rigid without cable end, staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² flexible
Marking0 - 1
Height82 mm
Depth75 mm
Market segmentresidential, small commercial
Width18 mm
[Ie] rated operational current20 A
Control typetoggle 2 positions
9 mm pitches2
Mounting supportDIN rail
Environment
IP degree of protectionIP20 conforming to IEC 60529
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-70 °C
Pollution degree3
Tropicalisation2
Ambient air temperature for operation-20-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.6 cm
Package 1 Width1.8 cm
Package 1 Length8.2 cm
Package 1 Weight46 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height7.8 cm
Package 2 Width9.8 cm
Package 2 Length23.3 cm
Package 2 Weight583 g
Unit Type of Package 33
Number of Units in Package 3108
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight5.735 kg
