Picture of Acti9, Linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions
SKU:

A9E18071

Acti9, Linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions

$81.08
Available for Shipping : 10-Dec-2024
Product Selector
Acti9, Linear switch - iSSW - 2 C/O - 20A - 250 V AC - 2 positions
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product Page Link
Product Data Sheet

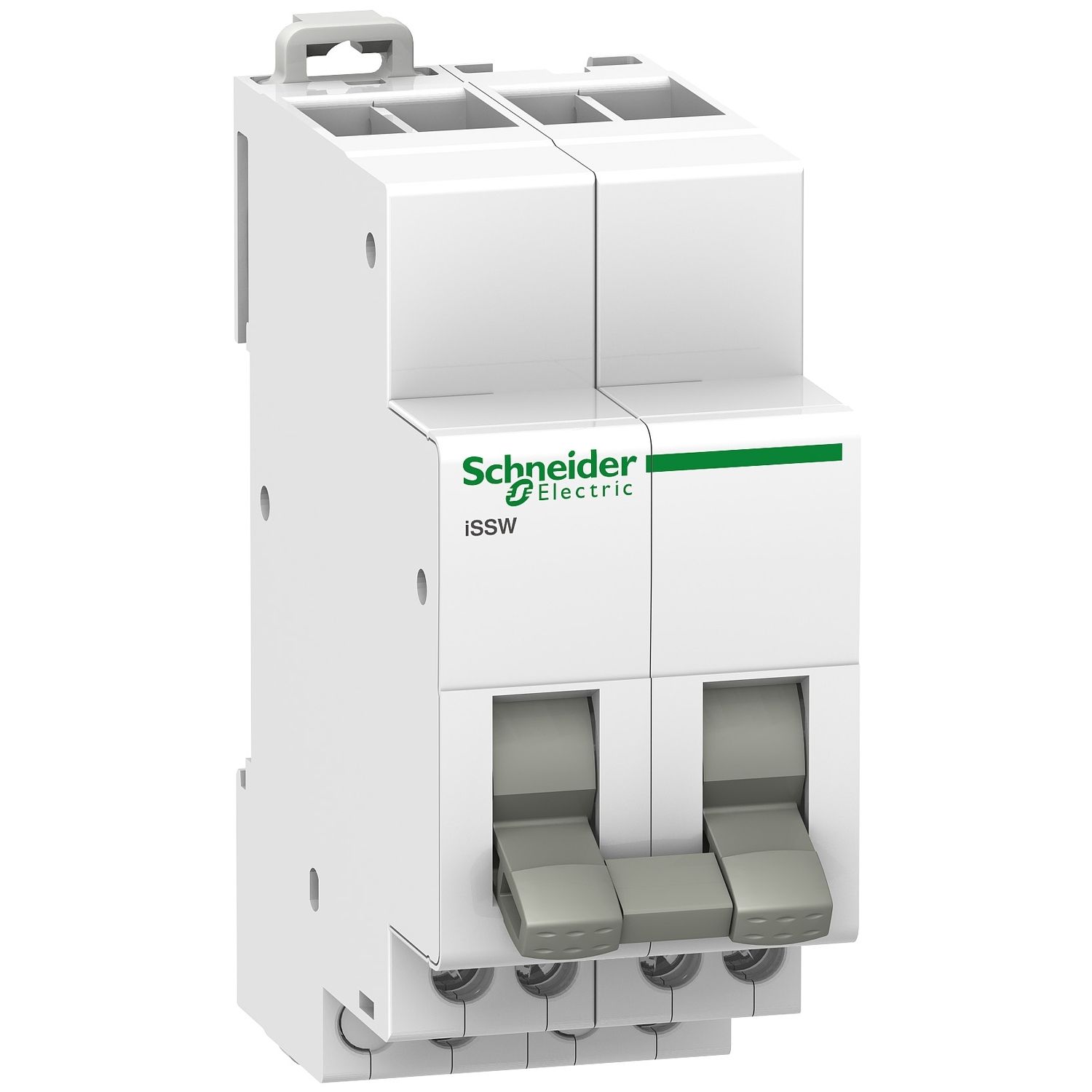

This Acti9 iSSW is a linear switch used for the manual control of electric circuits. It is 2 positions switch with 2 changeover contact (2 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 82mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +50°C. The storage temperature is from -40°C to +70°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iSSW
Device application electrical circuit control
Range Acti9
Range of product Acti9
[Ue] rated operational voltage 250 V AC 50/60 Hz
Poles description 2P
Contacts type and composition 2 C/O
Product name Acti9 iSSW
Product or component type changeover switch
Standards IEC 60947-5-1, IEC 60669-1
Complementary
Tightening torque 1-1 N.m
Colour white
Compatibility code iSSW
Electrical durability AC-22: 30000 cycles cos Phi = 0.8
Mounting mode clip-on
Wire stripping length 9 mm
Connections - terminals staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² rigid without cable end, staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² flexible
Marking 0 - 1
Height 82 mm
Depth 75 mm
Market segment small commercial, residential
Width 36 mm
[Ie] rated operational current 20 A
Control type toggle 2 positions
9 mm pitches 4
Mounting support DIN rail
Environment
IP degree of protection IP20 conforming to IEC 60529
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-70 °C
Pollution degree 3
Tropicalisation 2
Ambient air temperature for operation -20-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8 cm
Package 1 Width 3.5 cm
Package 1 Length 7.5 cm
Package 1 Weight 88 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 9.6 cm
Package 2 Width 8 cm
Package 2 Length 23 cm
Package 2 Weight 594 g
Unit Type of Package 3 3
Number of Units in Package 3 54
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.888 kg
