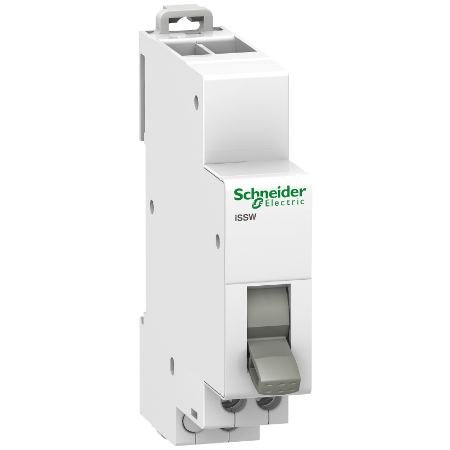

Picture of Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions
SKU:

A9E18073

Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions

$43.73
Product Selector
Acti9, Linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions
  • Suitable for industrial isolation according to IEC/EN 60669-1 and IEC 60947-5-1 standard
  • iSSW linear switches are used for the manual control of electric circuits
Be the first to review this product
Manufacturer: Schneider Electric
Availability: Please contact our sales team on 1300 724 622.
Declaration of conformity
Product Page Link
Product Data Sheet
This Acti9 iSSW is a linear switch used for the manual control of electric circuits. It is a 3 positions switch with 1 changeover contact (1 C/O). The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm² minimum to 2x2.5mm² maximum. The connection allows flexible or with ferrule copper cables from 0.5mm² minimum to 2x2.5mm2 maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 75mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55°C). The operational temperature is from -20°C to +50°C. The storage temperature is from -40°C to +70°C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.

Products specifications

Attribute nameAttribute value
Main
[Ue] rated operational voltage250 V AC 50/60 Hz
Device short nameiSSW
Device applicationelectrical circuit control
Poles description1P
Contacts type and composition1 C/O
RangeActi9
Product nameActi9 iSSW
Product or component typechangeover switch
StandardsIEC 60947-5-1, IEC 60669-1
Range of productActi9
Complementary
Tightening torque1-1 N.m
Depth75 mm
Market segmentsmall commercial, residential
Width18 mm
Colourwhite
Compatibility codeiSSW
[Ie] rated operational current20 A
Control typetoggle 3 positions
Electrical durabilityAC-22: 30000 cycles cos Phi = 0.8
Mounting modeclip-on
Wire stripping length9 mm
Connections - terminalsstaggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² rigid without cable end, staggered tunnel terminal (downside) 2 cable(s) 0.5-2.5 mm² flexible
Marking1 - 0 - 2
9 mm pitches2
Mounting supportDIN rail
Height82 mm
Environment
IP degree of protectionIP20 conforming to IEC 60529
Relative humidity95-95 % at 55-55 °C
Ambient air temperature for storage-40-70 °C
Pollution degree3
Tropicalisation2
Ambient air temperature for operation-20-50 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height6.6 cm
Package 1 Width1.8 cm
Package 1 Length8.2 cm
Package 1 Weight45 g
Unit Type of Package 22
Number of Units in Package 212
Package 2 Height7.8 cm
Package 2 Width9.8 cm
Package 2 Length23.3 cm
Package 2 Weight592 g
Unit Type of Package 33
Number of Units in Package 3108
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight5.816 kg
