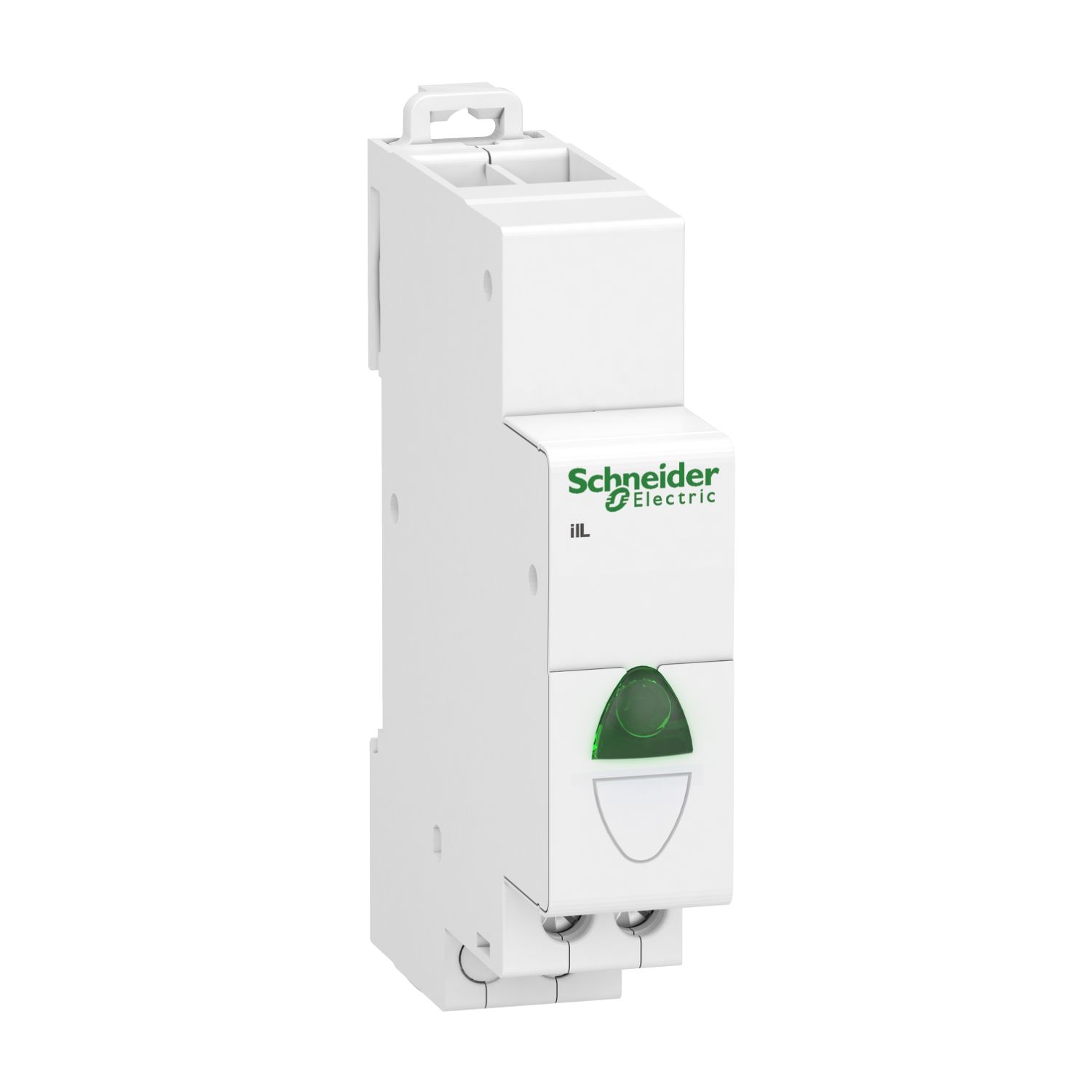

Picture of Acti9, iIL single indicator light - Green - 110-230 Vac
SKU:

A9E18321

Acti9, iIL single indicator light - Green - 110-230 Vac

$35.42
Available for Shipping : 14-Nov-2024
Product Selector
Acti9, iIL single indicator light - Green - 110-230 Vac
  • Staggered terminals to simplify connection
  • Phase-separated wall that can be divided to allow the teeth of all types of comb busbar to pass through
  • Voltage presents maintenance-free indicator light (non-interchangeable LEDs)
  • Compliant with IEC 60947-5-1 standard
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Acti9 iIL is a single-phase voltage presence indicator light. The voltage is 110VAC to 230VAC or 110VDC to 130VDC. The red light on the front face lights up to indicate that a voltage is present. The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm². The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m. The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum. It comes with staggered terminals to simplify the connection. The LED indication light maximum consumption per indicator light is 0.3W. The Operating frequency is 50Hz or 60Hz. The service life of the LED indicator light is 100000h of constant lightning efficiency. Because of the non-interchangeability of LEDs it is a maintenance-free device. The tropicalization is Treatment 2 (relative humidity 95% at 55°C). The degree of protection is IP20. The pollution degree is 3. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 68mm. The weight is 65g. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 80°C. This product complies with IEC/EN 60947-5-1 standard.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 110...130 V DC, 110...230 V AC at 50/60 Hz
Device short name iIL
Range Acti9
Product name Acti9 iIL
Product or component type modular pilot ligth
Range of product Acti9
Complementary
Auxiliary connection terminal tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm², tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm², tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm², tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm², tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm²
Tightening torque 1-1 N.m
Depth 69.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white (RAL 9003)
Compatibility code iIL
Mounting mode fixed
Wire stripping length 9 mm
Comb busbar and distribution block compatibility upside: ProDis
Local signalling 1 LED green, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
9 mm pitches 2
Mounting support symmetrical DIN rail
Height 82 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-80 °C
Pollution degree 3
IP degree of protection IPxx B, IP2
Tropicalisation 2
Standards IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 6.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 39.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.000 cm
Package 2 Width 10.000 cm
Package 2 Length 23.500 cm
Package 2 Weight 524.000 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.056 kg
Unit Type of Package 4 4
Number of Units in Package 4 864
Package 4 Height 45.000 cm
Package 4 Width 80.000 cm
Package 4 Length 120.000 cm
Package 4 Weight 53.104 kg
