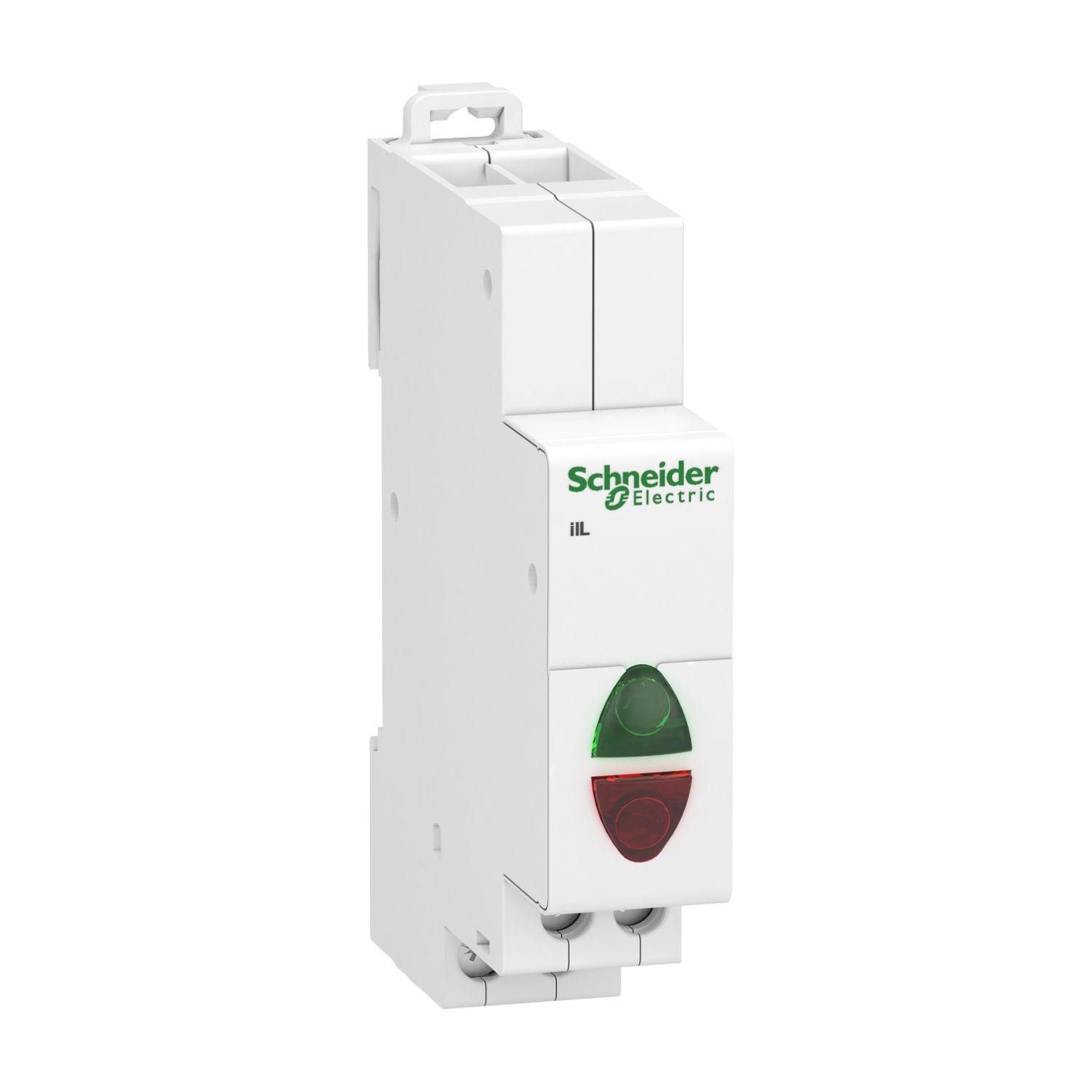

Picture of Acti9, iIL double indicator light - Green/Red - 110-230 Vac
SKU:

A9E18325

Acti9, iIL double indicator light - Green/Red - 110-230 Vac

$46.15
Available for Shipping : 03-Dec-2024
Product Selector
Acti9, iIL double indicator light - Green/Red - 110-230 Vac
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet
This Acti9 iIL accessory is a double modular pilot light fixed on DIN rail. It has at front face a green and a red LEDs of 0.3W with a service life of 100000 hours. The Us rated supply voltage is 100VAC to 230VAC at a 50/60Hz frequency, or is 110VDC to 130VDC.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 110...130 V DC, 110...230 V AC at 50/60 Hz
Device short name iIL
Range Acti9
Product name Acti9 iIL
Product or component type modular pilot ligth
Range of product Acti9
Complementary
Auxiliary connection terminal tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm², tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm², tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm², tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm², tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm²
Tightening torque 1-1 N.m
Depth 69.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white (RAL 9003)
Compatibility code iIL
Mounting mode fixed
Wire stripping length 9 mm
Comb busbar and distribution block compatibility upside: ProDis
Local signalling 2 LEDs green/red, service life 100000 h of constant lighting efficiency (consumption 0.6 W)
9 mm pitches 2
Mounting support symmetrical DIN rail
Height 82 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-80 °C
Pollution degree 2
IP degree of protection IPxx B, IP2
Tropicalisation 2
Standards IEC 60947-5-1
Ambient air temperature for operation -35-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.6 cm
Package 1 Width 1.8 cm
Package 1 Length 8.2 cm
Package 1 Weight 45 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 7.8 cm
Package 2 Width 9.8 cm
Package 2 Length 23.3 cm
Package 2 Weight 602 g
Unit Type of Package 3 3
Number of Units in Package 3 108
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 5.906 kg
