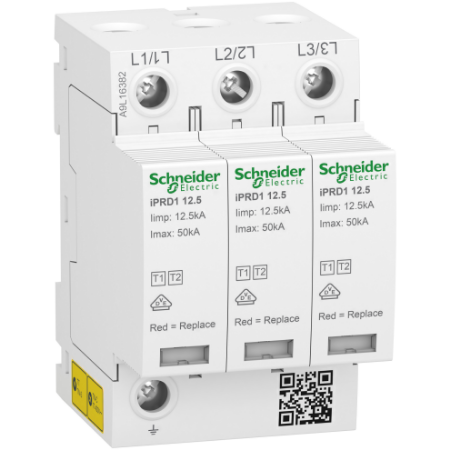

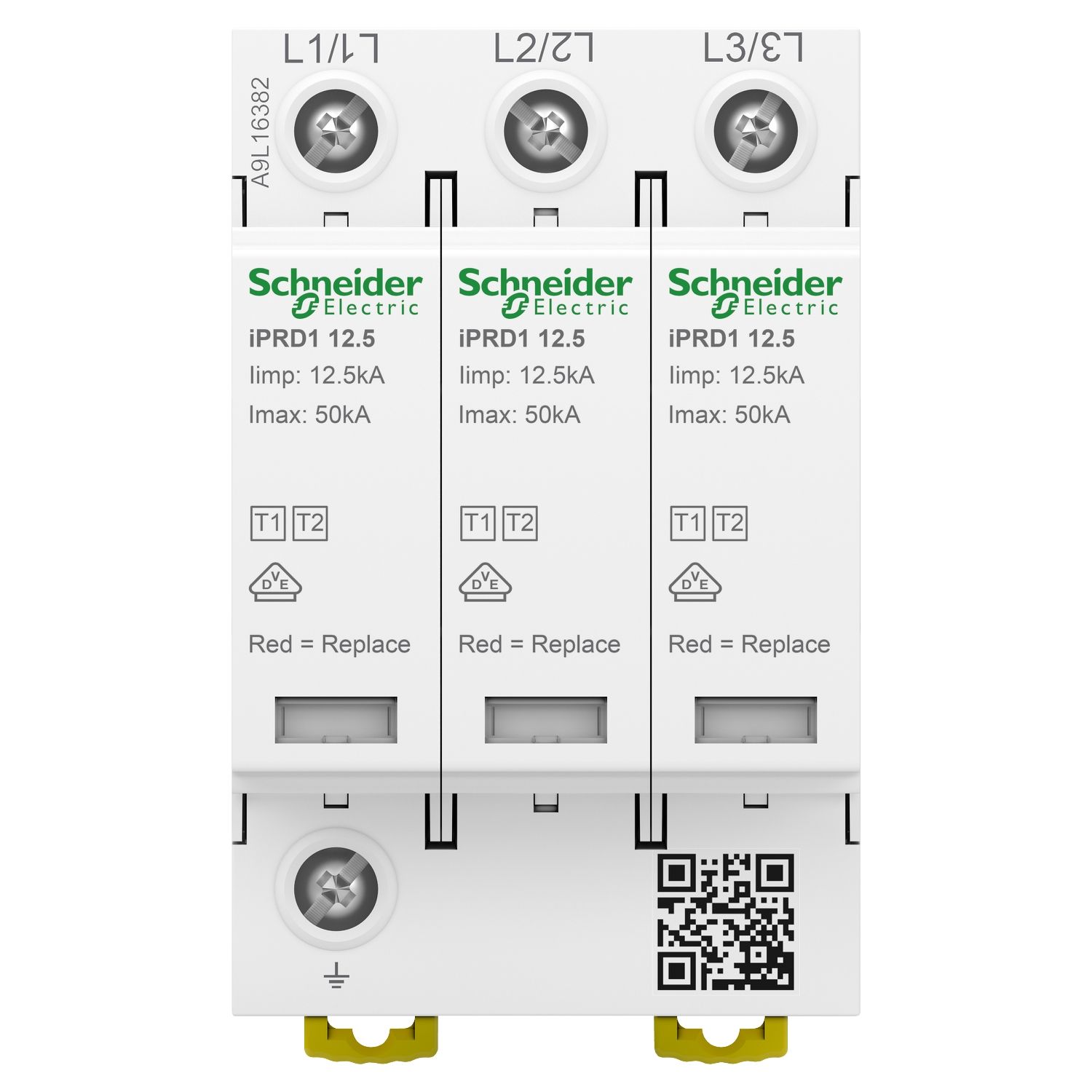

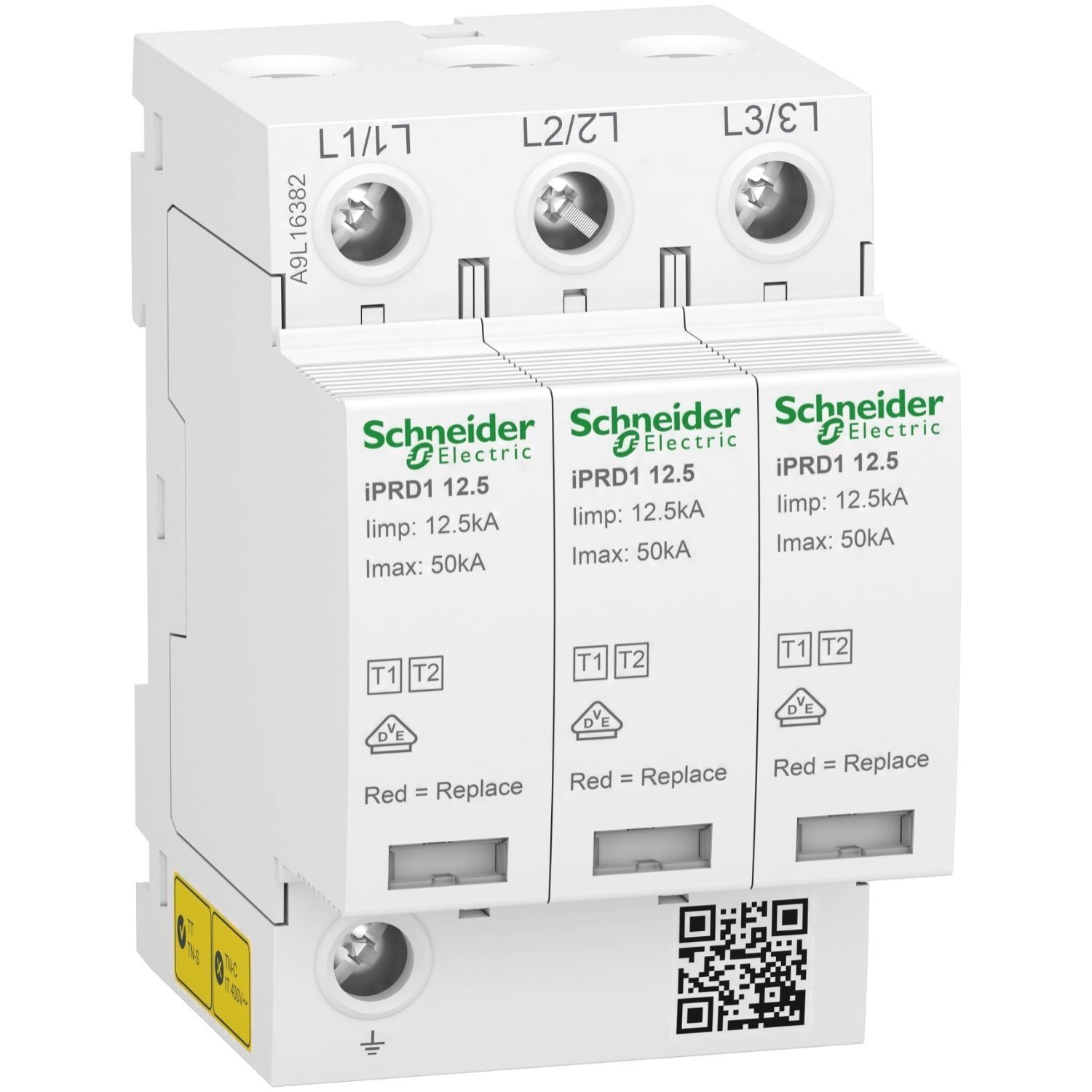

Modular surge arrester, Acti9 iPRD1 12.5, 3 P, 350 V, with remote transfert

$307.56
Available for Shipping : 24-Nov-2024
Product Selector
Modular surge arrester, Acti9 iPRD1 12.5, 3 P, 350 V, with remote transfert
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iPRD1 12.5r surge arrester protects 3P residential and small commercial buildings installations against direct and indirect transient overvoltages. This type 1+2 device autoprotected by an integrated circuit-breaker is recommanded for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. This Acti9 iPRD1 12.5r is compatible with TN-C earthing system. Associated with Compact NSXm H TM80D the breaking capacity is 70kA. The Imax maximum discharge current is 50kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in common mode is 350VAC between phase and earth. The Up Voltage protection level is 1.5kV type 1+2. The Ue rated operational voltage is 230VAC or 400 VAC. The operating frequency is 50Hz. The dimensions are (W) 54mm x (H) 89mm x (D) 69mm. The width in 9mm pitches is 6. The weight is 486g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +80°C. This product is complies with EN 61643-11 2012 and IEC 61643-11 2011 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPRD1 12.5
Device application distribution
Range Acti9
Earthing system TN-C
Standards IEC 61643-11:2011, EN 61643-11:2012
Range of product iPRD1
Poles description 3P
Surge arrester type electrical distribution network
Quality labels VDE, EAC, CE
Signal contacts composition 1 SD (1 C/O)
Product name Acti9 iPRD1
Product or component type surge arrester
Remote signalling with
Complementary
Tightening torque 3.5-3.5 N.m
Colour white (RAL 9003)
Impulse current 12.5 kA
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50...60 Hz
Compatibility code iPRD1
Maximum [Up] voltage protection level <1.5 kV type 1 + 2
Residual current 0.9 mA L/PE
Local signalling end of life: mechanical indicator (red), operating: mechanical indicator (white)
Disconnector device type associated circuit breaker Compact NSX160E 80 A 25 kA standard, associated fuse gG 160 A 120 kA standard
Connections - terminals tunnel type terminal (earth) 16-35 mm² rigid, tunnel type terminal (earth) 16-25 mm² flexible, tunnel type terminal (phase) 10-35 mm² rigid, tunnel type terminal (phase) 10-25 mm² flexible
Wire stripping length 14 mm
[Uc] maximum continuous operating voltage common mode: 350 V L/PE
[Iimp] impulse current common mode: 12.5 kA L/PE
[Ut] temporary overvoltage 1455 V L/PE 200 ms safe failure mode, 442 V L/PE 120 min withstand
Surge arrester class type type 1 + 2
Height 89 mm
Surge arrester technology MOV + GDT
Depth 69 mm
Market segment residential, small commercial
Width 54 mm
Net weight 486 g
Material PA6
Maximum discharge current 50 kA
9 mm pitches 6
Nominal discharge current 20 kA
Mounting mode clip-on (DIN rail)
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-80 °C
Pollution degree 3
Ambient air temperature for operation -25-60 °C
IK degree of protection IK05 conforming to IEC 62262
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 8.000 cm
Package 1 Length 9.500 cm
Package 1 Weight 525.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 8.500 cm
Package 2 Width 10.000 cm
Package 2 Length 27.500 cm
Package 2 Weight 2.173 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.761 kg
