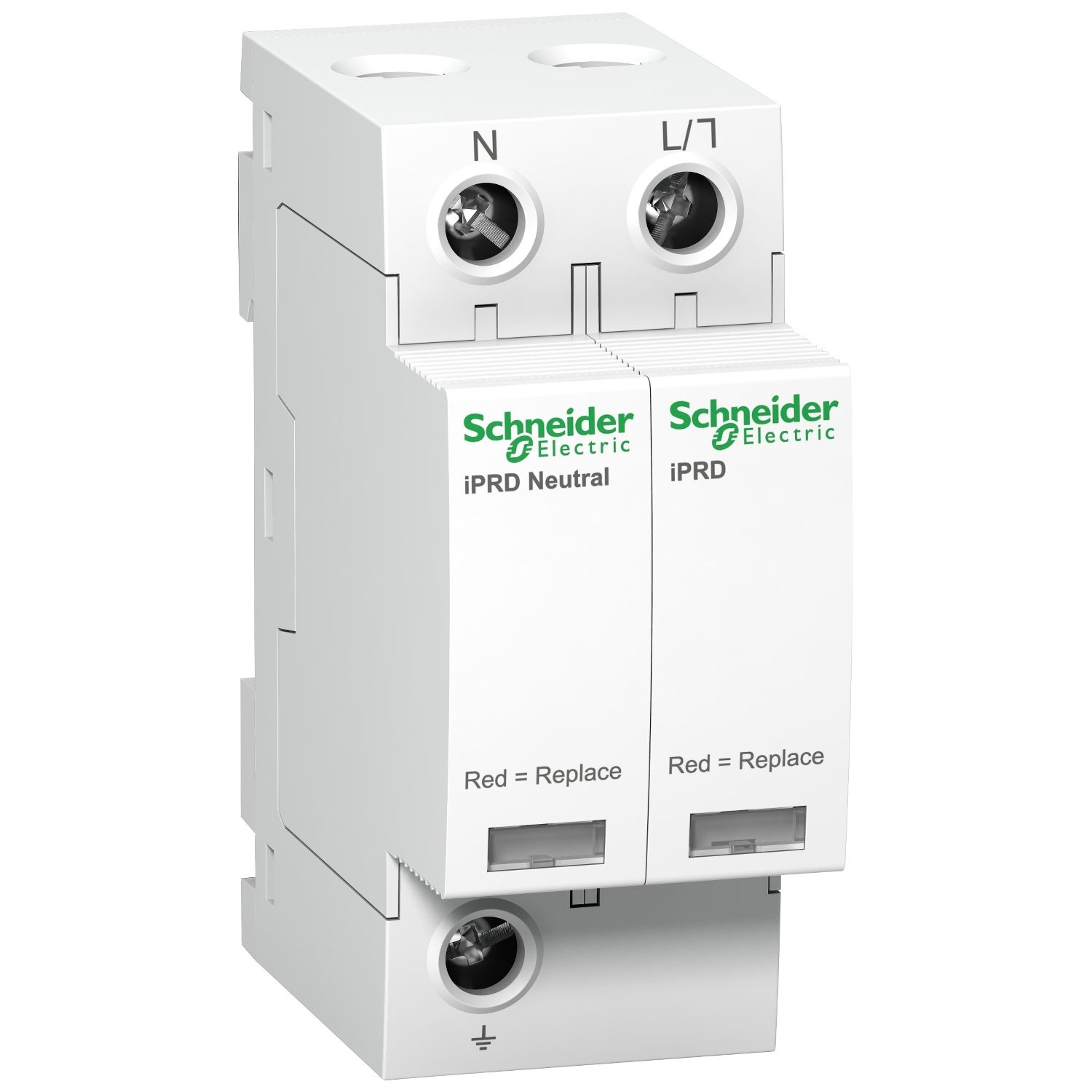

Picture of iPRD20r modular surge arrester - 1P + N - 350V - with remote transfert
SKU:

A9L20501

iPRD20r modular surge arrester - 1P + N - 350V - with remote transfert

$186.76
Product Selector
iPRD20r modular surge arrester - 1P + N - 350V - with remote transfert
  • Recommended for a moderate risk level in incoming panel board
  • Type 2 20kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards
  • Suitable for TT and TN-S networks with high prospective short-circuit fault currents
  • Fitted with a remote transfer contact to send cartridge must be replaced indication information
  • Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
  • Reversible surge arrester, power supply through bottom connection (comb busbar) and top connection (cables)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 13-Oct-2024
Instruction sheet
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iPRD20r surge arrester protects 1P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 36mm x (H) 85mm x (D) 69mm. The weight is 215g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
