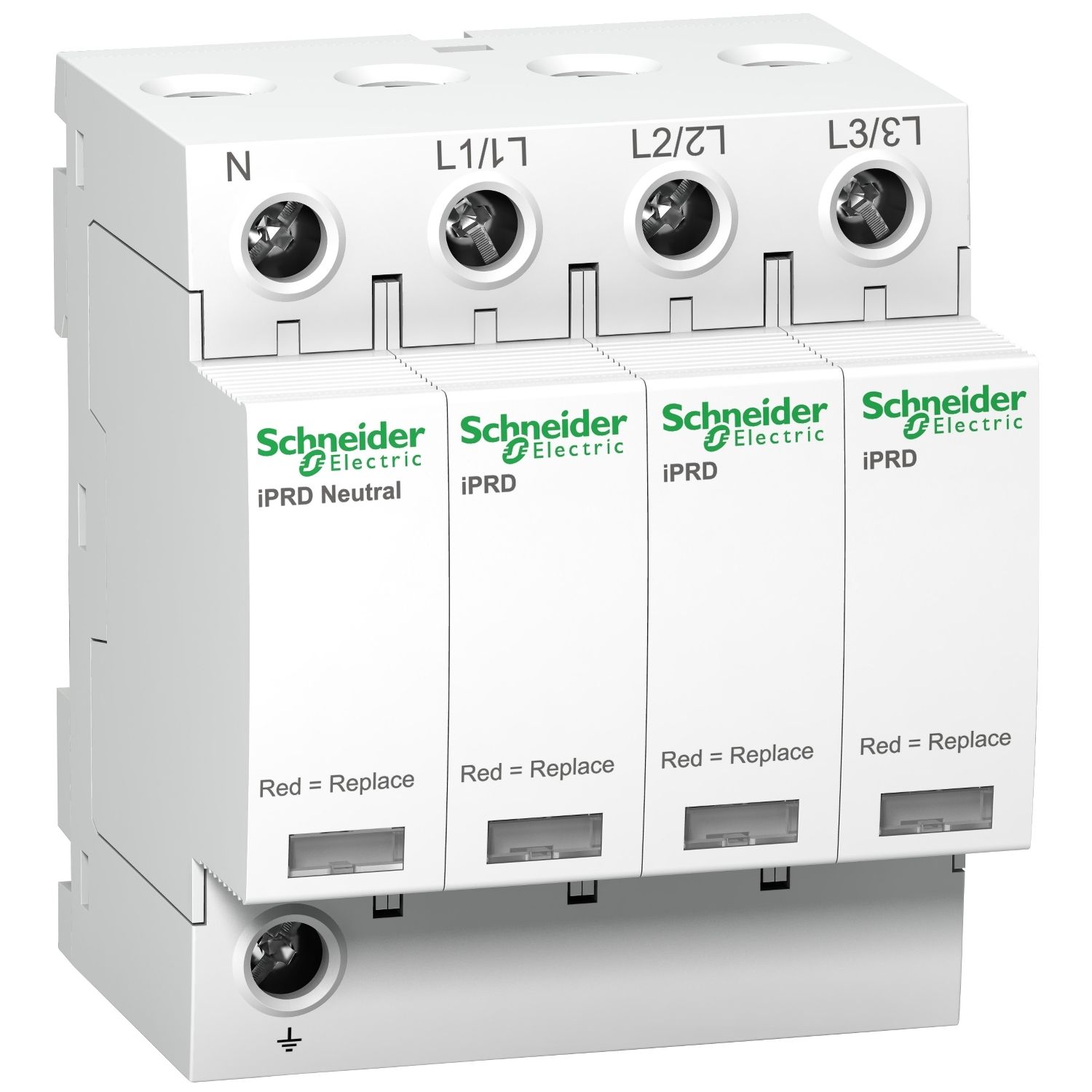

Picture of iPRD20r modular surge arrester - 3P + N - 350V - with remote transfert
SKU:

A9L20601

iPRD20r modular surge arrester - 3P + N - 350V - with remote transfert

$280.22
Available for Shipping : 05-Dec-2024
Product Selector
iPRD20r modular surge arrester - 3P + N - 350V - with remote transfert
  • Recommended for a moderate risk level in incoming panel board
  • Type 2 20kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards
  • Suitable for TT and TN-S networks with high prospective short-circuit fault currents
  • Fitted with a remote transfer contact to send cartridge must be replaced indication information
  • Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
  • Reversible surge arrester, power supply through bottom connection (comb busbar) and top connection (cables)
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iPRD20r surge arrester protects 3P+N installations. it allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Imax rated discharge current is up to 40kA. The In nominal discharge current is 15kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 260VAC. The Up maximum voltage protection level is 1.4kV in common mode and 1.2kV in differential mode. The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
