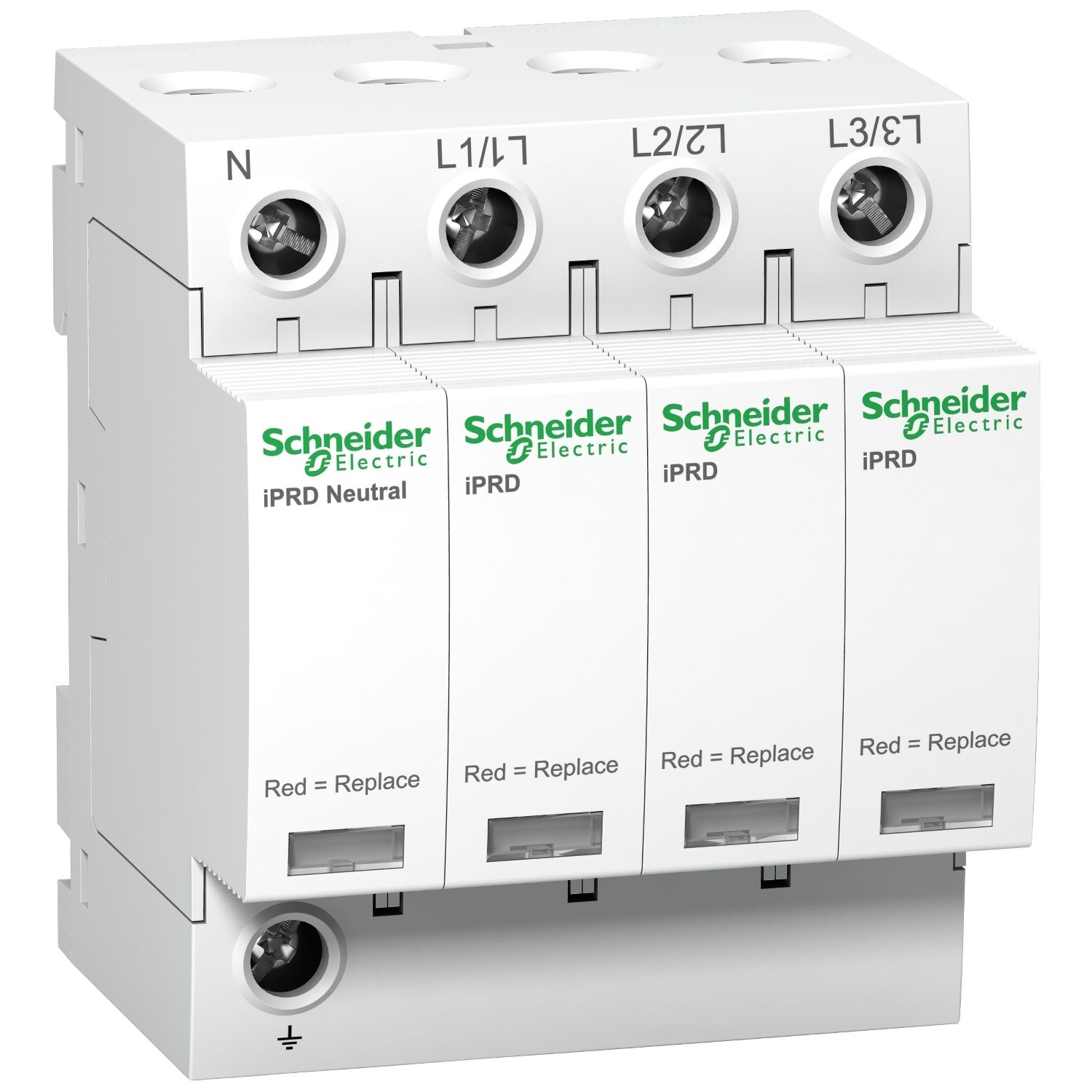

Picture of iPRD40 modular surge arrester - 3P + N - 350V
SKU:

A9L40600

iPRD40 modular surge arrester - 3P + N - 350V

$254.98
Product Selector
iPRD40 modular surge arrester - 3P + N - 350V
  • Type 2 40kA surge arrester according to IEC 61643-11:2011 and EN 61643-11:2012 standards
  • Suitable for TT and TN-S networks with high prospective short-circuit fault currents
  • Easy to replace withdrawable cartridges, and pluggable with anti-vibration lock
  • Reversible surge arrester, power supply through bottom connection (comb busbar) and top connection (cables)
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Declaration of conformity
Product environmental
End of life manual
Product Page Link
Product Data Sheet
This Acti9 iPRD40 surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for high risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD40 is compatible with TT and TN-S earthing system. The Imax rated discharge current is 40kA. The In nominal discharge current is 15kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.4kV in common mode (N/PE) and in differential mode (L/N). The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
