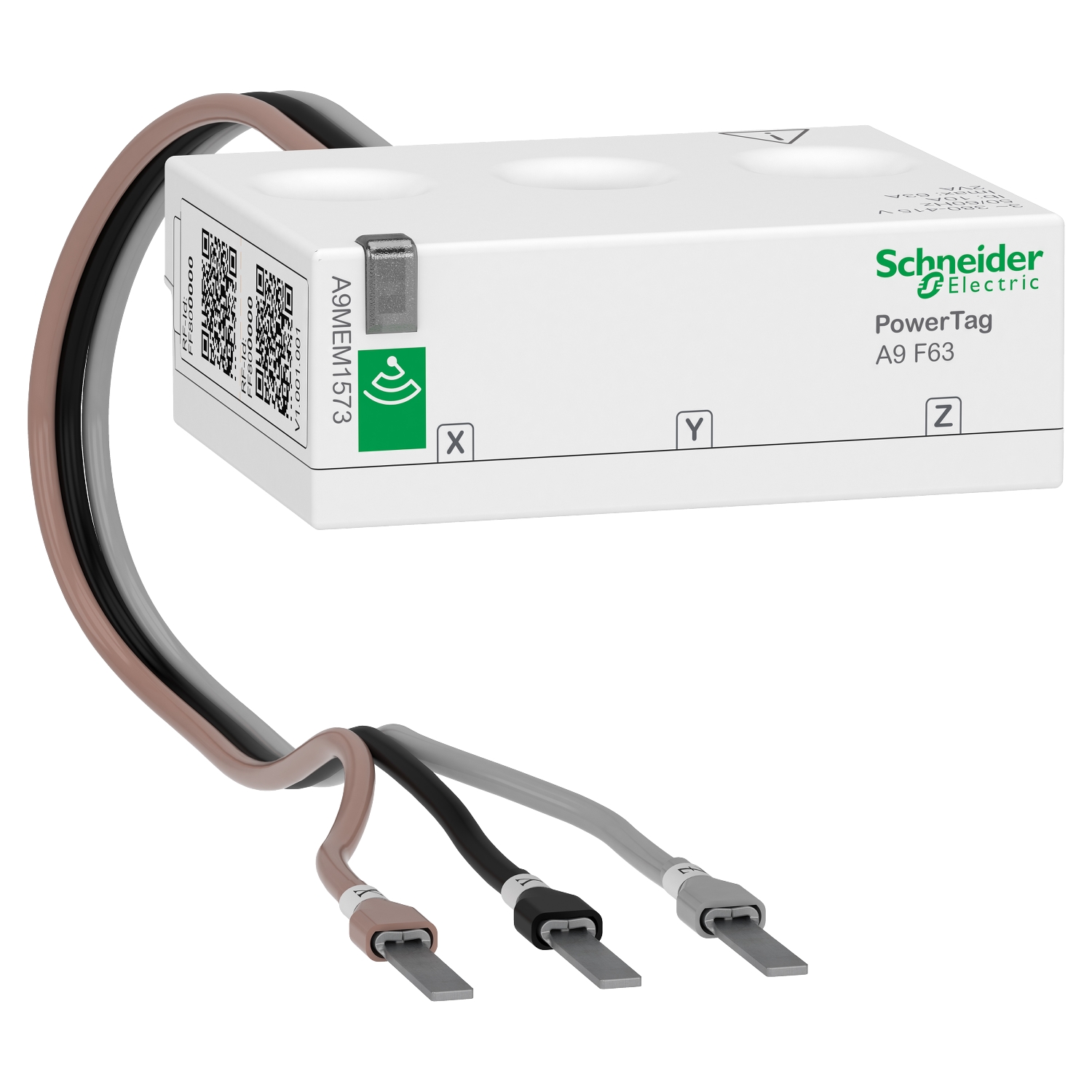

Picture of energy sensor PowerTag Flex 63A 3P top and bottom position
SKU:

A9MEM1573

energy sensor PowerTag Flex 63A 3P top and bottom position

$266.23
Available for Shipping : 17-Nov-2024
Product Selector
energy sensor PowerTag Flex 63A 3P top and bottom position
  • Energy sensor that provides accurate real-time measurements and energy values
  • Wireless communication, needs to be associated with a concentrator to treat the data collected
  • Accurate energy sensor with Class 1 accuracy according to IEC 61557-12
  • Small and cost effective, either mounted on the top or the bottom of the protective devices up to 63 A
  • PowerTag Energy 3P has a flex design
  • With 18 mm pitch between phase and neutral
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
End of life manual
User guide
Declaration of conformity
Product Page Link
Product Data Sheet
This PowerTag Energy F63 3P is a wireless communication energy sensor. With its Flex design, it is dedicated to 3P devices, rating less than or equal 63A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy 63A complies with IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The Performance category is Class 1. The Imax Maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-phase 380VAC to 415VAC +/- 20%. The maximum consumption is below or equal to 2VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 38g. The degree of protection is IP20 and IK05 The operating temperature is between -25°C to +60°C. The Storage temperature is between -40°C to +85°C.
