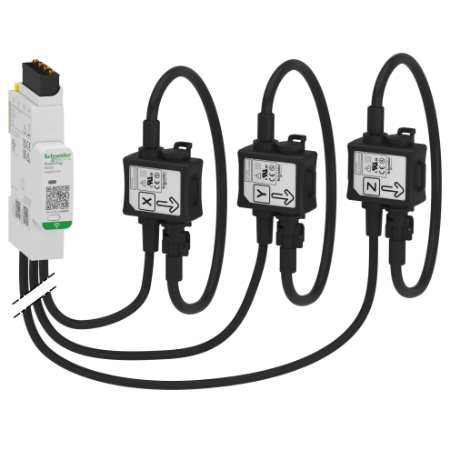

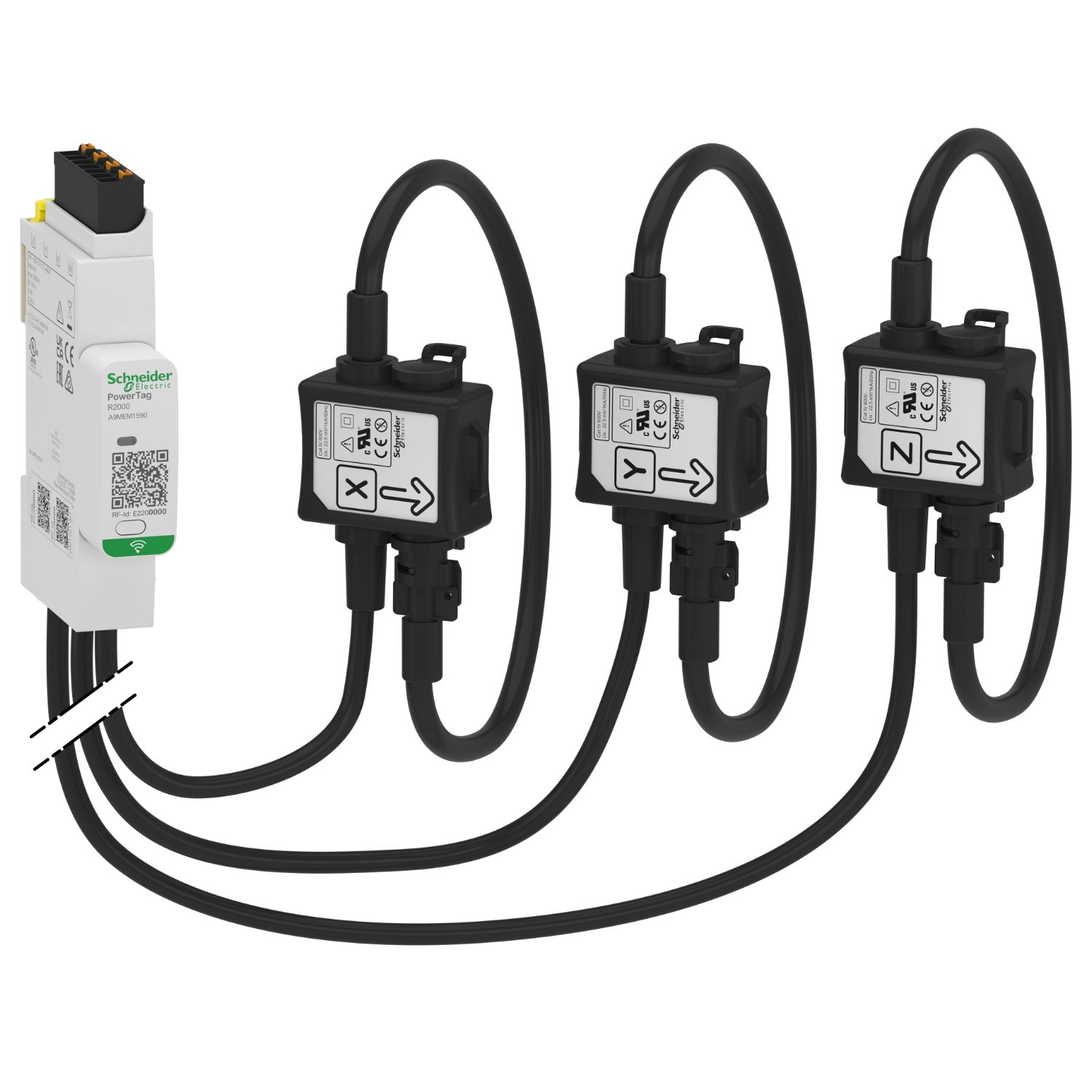

Picture of energy sensor, PowerTag Rope 200A 3P/3P+N top and bottom position
SKU:

A9MEM1590

energy sensor, PowerTag Rope 200A 3P/3P+N top and bottom position

$1,545.17
Available for Shipping : 24-Nov-2024
Product Selector
energy sensor, PowerTag Rope 200A 3P/3P+N top and bottom position
  • Energy sensor that provides accurate real-time measurements and energy values
  • Wireless communication, needs to be associated with a concentrator to treat the data collected
  • Accurate energy sensor with Class 1 accuracy according to IEC 61557-12
  • Small and cost effective, for all devices with a rating up to 200 A
  • PowerTag Energy Rope 18 mm module can be mounted on DIN rail or fastened with brackets anywhere in a panel
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
User guide
Instruction sheet
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This PowerTag Energy R200 3P/3P+N is a wireless communication energy sensor. With its Rope design, it is dedicated to 3P and 3P+N networks rating up to 200A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, reactive and apparent energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy R200 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 200A. The Ib Base current is 30A. The Saturation current is 400A and the Ist Starting current is 120mA. The Un Rated voltages are Phase-to-neutral 100 to 277VAC +/- 20% and Phase-to-phase 173 to 480VAC +/- 20%. The maximum consumption is below or equal to 3VA. It can be either mounted on bare or insulated busbars or on cables. The product color is white (RAL9003). The weight is 360g. The degree of protection is IP20 (IP40 front face) and IK05. The operating temperature is between -25°C to +70°C. The storage temperature is between -40°C to +85°C.
