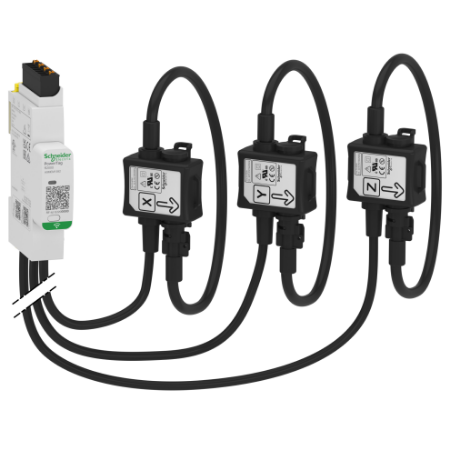

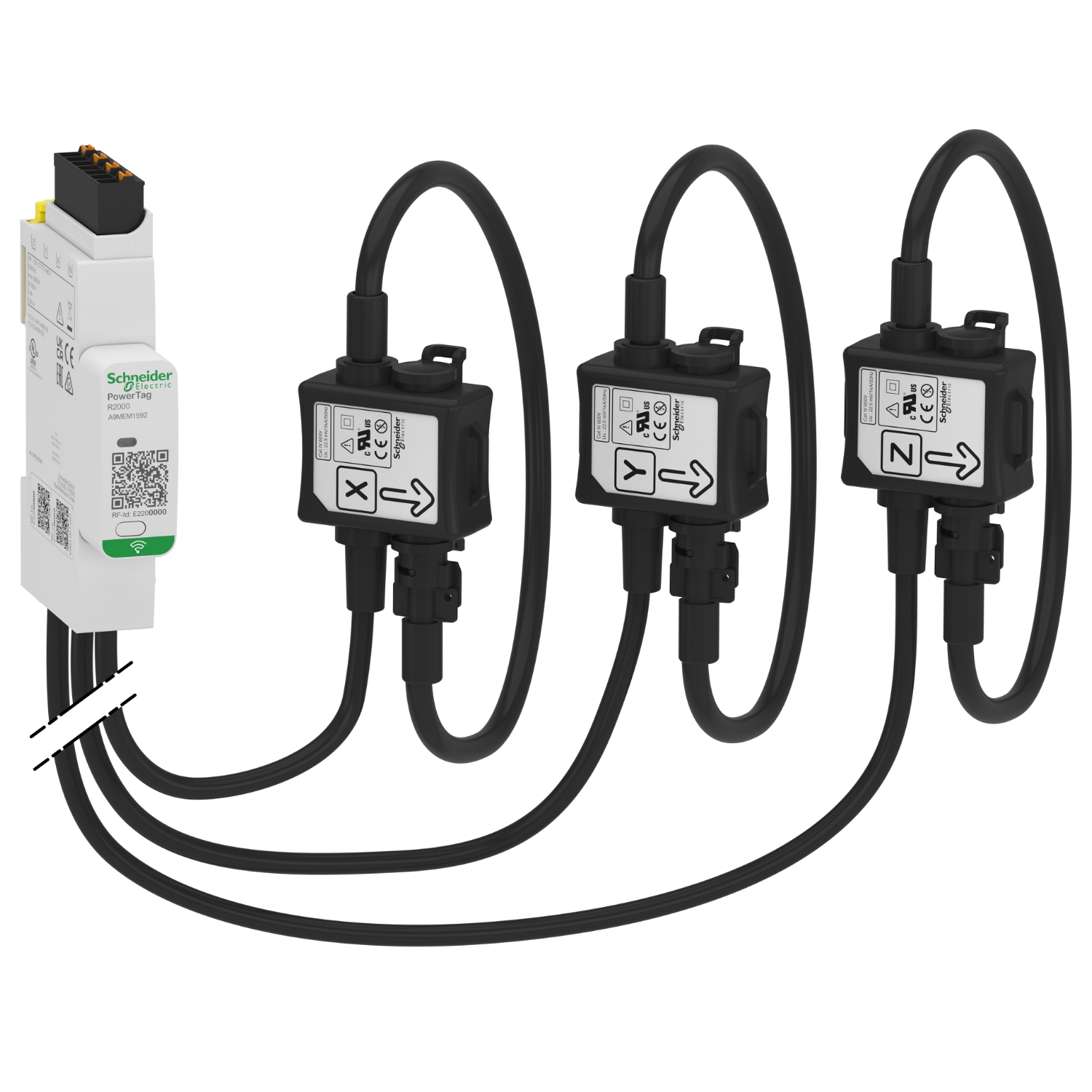

Picture of energy sensor, PowerTag Rope 1000A 3P/3P+N top and bottom position
SKU:

A9MEM1592

energy sensor, PowerTag Rope 1000A 3P/3P+N top and bottom position

$1,822.88
Product Selector
energy sensor, PowerTag Rope 1000A 3P/3P+N top and bottom position
  • Energy sensor that provides accurate real-time measurements and energy values
  • Wireless communication, needs to be associated with a concentrator to treat the data collected
  • Accurate energy sensor with Class 1 accuracy according to IEC 61557-12
  • Small and cost effective, for all devices with a rating up to 1000 A
  • PowerTag Energy Rope 18 mm module can be mounted on DIN rail or fastened with brackets anywhere in a panel
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Catalogue
User guide
Instruction sheet
Declaration of conformity
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This PowerTag Energy R1000 3P/3P+N is a wireless communication energy sensor. With its Rope design, it is dedicated to 3P and 3P+N networks rating up to 1000A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active, reactive and apparent energy, active, reactive and apparent power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy R1000 complies with IEC 61557-12 standard. It is a PMD-II/DD/K70/1. The Performance category is Class 1. The Imax maximum current is 1000A. The Ib Base current is 150A. The Saturation current is 2000A and the Ist Starting current is 600mA. The Un Rated voltages are Phase-to-neutral 100 to 277VAC +/- 20% and Phase-to-phase 173 to 480VAC +/- 20%. The maximum consumption is below or equal to 3VA. It can be either mounted on bare or insulated busbars or on cables. The product color is white (RAL9003). The weight is 360g. The degree of protection is IP20 (IP40 front face) and IK05. The operating temperature is between -25°C to +70°C. The storage temperature is between -40°C to +85°C.
