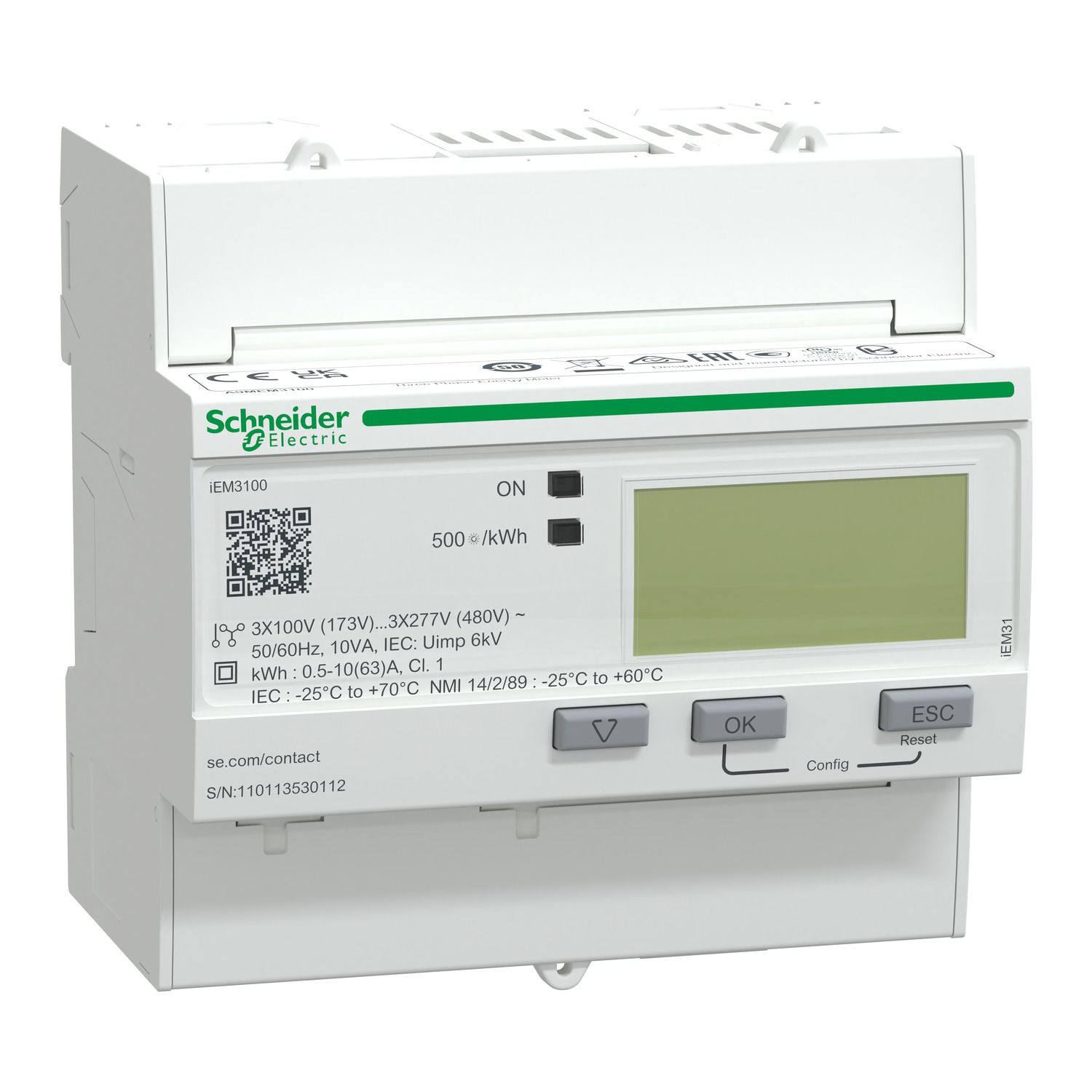

Picture of Acti9, IEM3000 energy meter - 63 A
SKU:

A9MEM3100

Acti9, IEM3000 energy meter - 63 A

$531.56
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Acti9, IEM3000 energy meter - 63 A
  • Feature-rich energy meters
  • Simple energy monitoring compatible with Building management systems
  • Compact size of 18mm*5 modules width
  • Extensive real time measurements
  • Identify energy savings opportunties with precision accuracy of Class 1.0
  • Collect and analyze energy consumption data
  • Class 1.0 for energy costing
  • Direct connet upto of 63Amps in three phase network
  • Three phase DIN rail mount energy meter
  • Large LCD display for easy reading
Be the first to review this product
Manufacturer: Schneider Electric
CAD
User guide
End of life manual
Catalogue
Declaration of conformity
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. No primary communication ports. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Products specifications

Attribute name Attribute value
Main
Device short name iEM3100
Range Acti9
Market segment industry cost management: cost allocation, healthcare cost management: cost allocation, data center cost management: cost allocation, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing, healthcare cost management: billing, data center cost management: billing, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer
Product name Acti9 iEM3000
Product or component type energy meter
Complementary
Device application sub billing, partial meter
Display type LCD display
Compatibility code iEM3100
Mounting mode clip-on
Communication port protocol -
Type of measurement active energy
Standards ANSI C12.16, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1:2010, IEC 61010-1:2010, EN 61010-1:2010, BS EN 61010-1:2010, EN 62052-31:2015, IEC 62052-31:2015, BS EN 62052-31:2015, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11:2020, IEC 62052-11:2020, BS EN 62052-11:2020, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12:2021, IEC 61557-12:2021, BS EN 61557-12:2021
Maximum value measured 99999999.9 kWh
Communication port support -
Rated voltage 173-480 V, 100-277 V
Accuracy class class B active energy conforming to EN 50470-3, class 1 active energy conforming to IEC 61557-12, class 1 active energy conforming to IEC 62053-21
Overvoltage category III
Market segment small commercial, residential
Analogue input type direct input
[In] rated current 63 A
Poles description 3P + N, 3P, 1P + N
Technology type electronic
Local signalling yellow flashing LED: accuracy checking, green indicator light: power ON
Connections - terminals screw terminals 16-16 mm² cable(s)
Measurement current 0-63 A
Number of inputs 0
Product certifications NMI conforming to NMI M 6-1, KZ, KZ conforming to NMI M 6-1, EAC (sub-meter), cULus conforming to EN 61010-1 (safety), cULus conforming to UL 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety)
Mounting support DIN rail
Number of outputs 0
Sampling rate 32 samples/cycle
Network frequency 50 Hz, 60 Hz
Environment
IP degree of protection IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529
Relative humidity 5-95 % at 50-50 °C
Ambient air temperature for storage -40-85 °C
Colour white
Pollution degree 2
Ambient air temperature for operation -25-70 °C - IEC
Height 95 mm
Operating altitude < 2000 m
Depth 69 mm
Width 90 mm
9 mm pitches 10
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 9.5 cm
Package 1 Length 10.2 cm
Package 1 Weight 431 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 13.42 kg
Unit Type of Package 3 3
Number of Units in Package 3 240
Package 3 Height 15 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 107.864 kg
