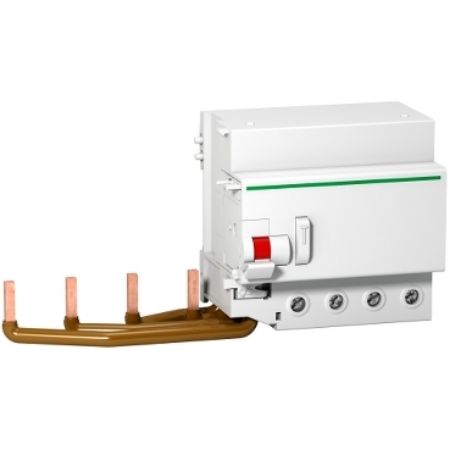

Picture of Acti 9 C120, earth leakage add-on block, 4P, 30 mA, class A
SKU:

A9N18578

Acti 9 C120, earth leakage add-on block, 4P, 30 mA, class A

$820.62
Available for Shipping : 24-Nov-2024

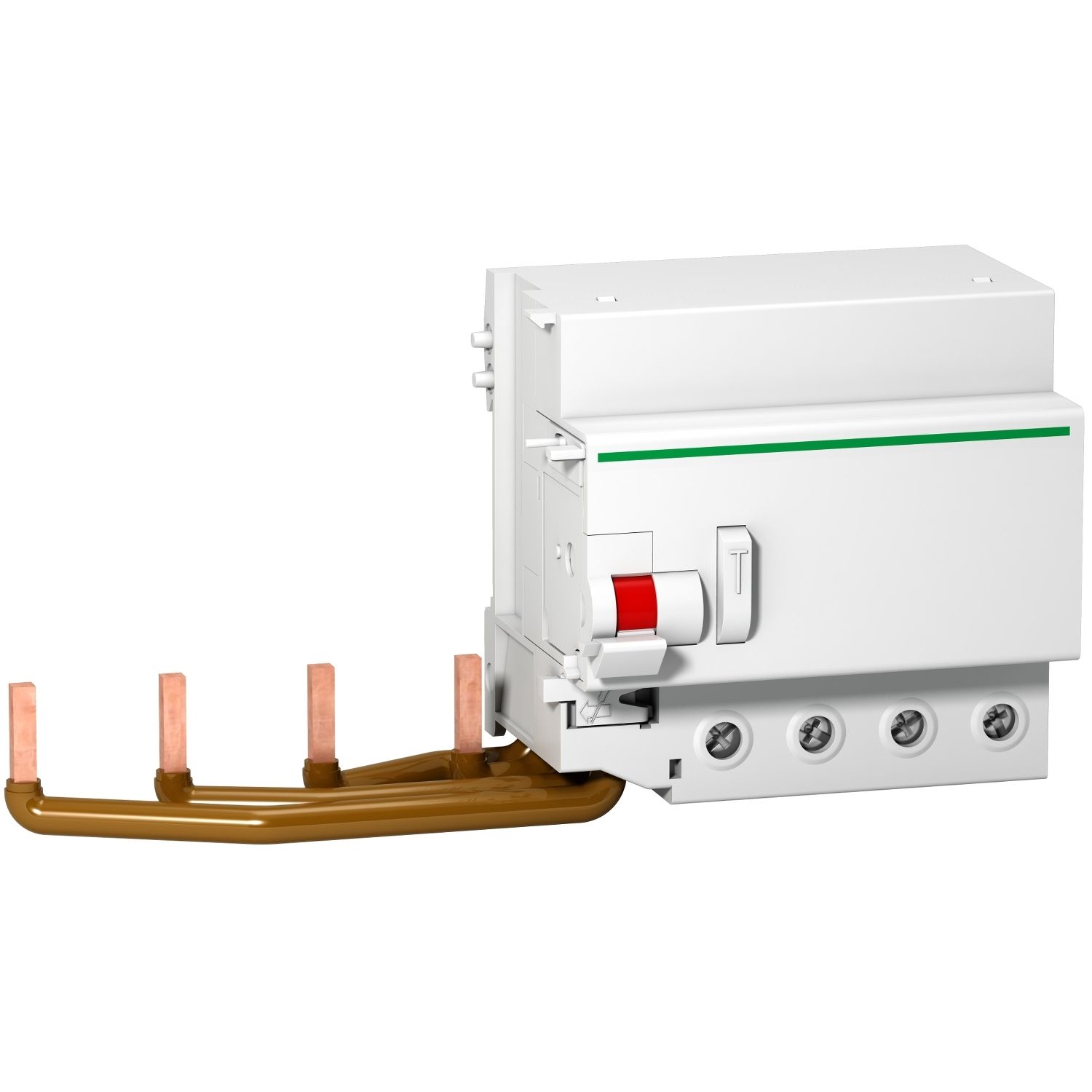

Acti 9 C120, earth leakage add-on block, 4P, 30 mA, class A
  • Protection of persons against electric shock by direct contact
  • Combine short-circuit and overload currents protection
  • Suitability for isolation according to EN 61009-1 and EN 61009-2-1 standards
  • Easy to install with unified terminal design and wiring indication
  • Fault indication by the red strip on the reset toggle
  • Screw shield
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This Acti9 Vigi C120 is a modular add-on residual current device. It has 4P with 4 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire hazards. It has to be combined with a C120 circuit breaker. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 10. The product colour is white (RAL9003). The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The weight is 580g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Device short name Vigi C120
Earth-leakage protection class type A
Range of product C120
Poles description 4P
Earth-leakage protection time delay instantaneous
Product or component type add-on residual current devices
Earth-leakage sensitivity 30 mA
Network type AC
[In] rated current 125 A
Complementary
Product compatibility single terminal
Tightening torque 3.5-3.5 N.m
Colour white
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Compatibility code Vigi C120
Mechanical durability 20000 cycles
Mounting mode clip-on
Residual current tripping technology voltage independent
Electrical connection to mcb by screws
Wire stripping length 15 mm
Connections - terminals tunnel type terminals 1-50 mm² rigid, tunnel type terminals 1-35 mm² flexible
Height 95 mm
[Ue] rated operational voltage 400...415 V AC 50/60 Hz
Depth 73 mm
Market segment small commercial, residential
Width 198 mm
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60947-1
Net weight 0.58 kg
9 mm pitches 10
Device location in system outgoer
Mounting support 35 mm symmetrical DIN rail
Network frequency 50/60 Hz
Environment
Ambient air temperature for storage -40-60 °C
Pollution degree 3 conforming to IEC 60947-2
IP degree of protection IP20
Standards IEC/EN 61009-2-1, EN 61009
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.1 cm
Package 1 Width 13.3 cm
Package 1 Length 25.0 cm
Package 1 Weight 800.0 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.893 kg

Related products

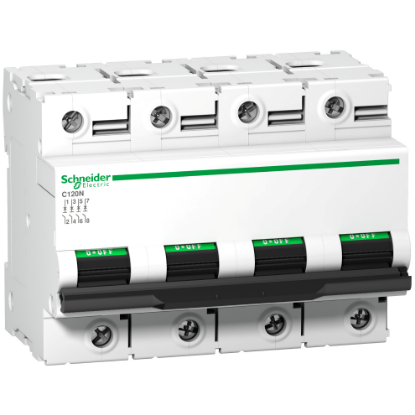

Picture of Acti9, Miniature circuit breaker (MCB), Acti9 C120N, 4P, 63A, C curve, 10000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)
