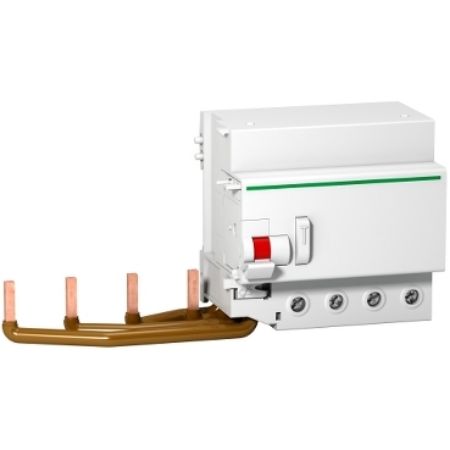

Picture of Acti 9 C120, earth leakage add-on block, 4P, 300 mA, class A
SKU:

A9N18579

Acti 9 C120, earth leakage add-on block, 4P, 300 mA, class A

$614.42
Acti 9 C120, earth leakage add-on block, 4P, 300 mA, class A
  • Protection of persons against electric shock by indirect contact
  • Combine short-circuit and overload currents protection
  • Suitability for isolation according to EN 61009-1 and EN 61009-2-1 standards
  • Protection of installations against the fire hazards
  • Easy to install with unified terminal design and wiring indication
  • Fault indication by the red strip on the reset toggle
  • Screw shield
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This Acti9 Vigi C120 is a modular add-on residual current device. It has 4P with 4 protected poles, rated current is 125A and operating voltage is 230VAC to 415VAC. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire hazards. It has to be combined with a C120 circuit breaker. This product is compliant with EN 61009 standard. Electrical endurance goes up to 20000 cycles. The Ue rated operational voltage is from 230VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on 35 mm symmetrical DIN rail. The width in 9mm pitches is 10. The product colour is white (RAL9003). The dimensions are (W) 198mm x (H) 95mm x (D) 73mm. The weight is 580g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 60°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameVigi C120
Earth-leakage protection classtype A
Range of productC120
Poles description4P
Earth-leakage protection time delayinstantaneous
Product or component typeadd-on residual current devices
Earth-leakage sensitivity300 mA
Network typeAC
[In] rated current125 A
Complementary
Product compatibilitysingle terminal
Tightening torque3.5-3.5 N.m
Colourwhite
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Compatibility codeVigi C120
Mechanical durability20000 cycles
Mounting modeclip-on
Residual current tripping technologyvoltage independent
Electrical connection to mcbby screws
Wire stripping length15 mm
Connections - terminalstunnel type terminals 1-50 mm² rigid, tunnel type terminals 1-35 mm² flexible
Height95 mm
[Ue] rated operational voltage230...415 V AC 50/60 Hz
Depth73 mm
Market segmentsmall commercial, residential
Width198 mm
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to IEC 60947-1
Net weight0.58 kg
9 mm pitches10
Device location in systemoutgoer
Mounting support35 mm symmetrical DIN rail
Network frequency50/60 Hz
Environment
Ambient air temperature for storage-40-60 °C
Pollution degree3 conforming to IEC 60947-2
IP degree of protectionIP20
StandardsIEC/EN 61009-2-1, EN 61009
Ambient air temperature for operation-25-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height9.000 cm
Package 1 Width13.500 cm
Package 1 Length25.000 cm
Package 1 Weight657.000 g
Unit Type of Package 22
Number of Units in Package 28
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight5.739 kg
