SKU:

A9N26899

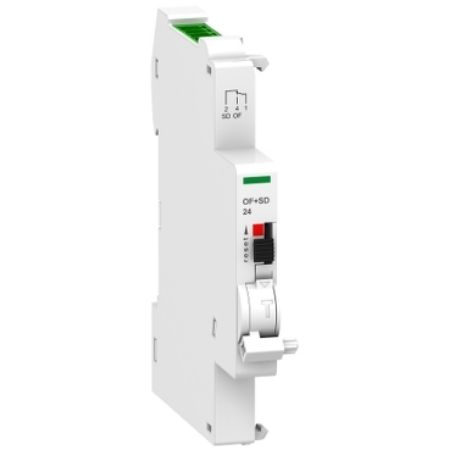

Acti9, Auxiliary contact, Acti9 A9N, OF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

$156.37

Qty:

Available for Shipping : 03-Dec-2024

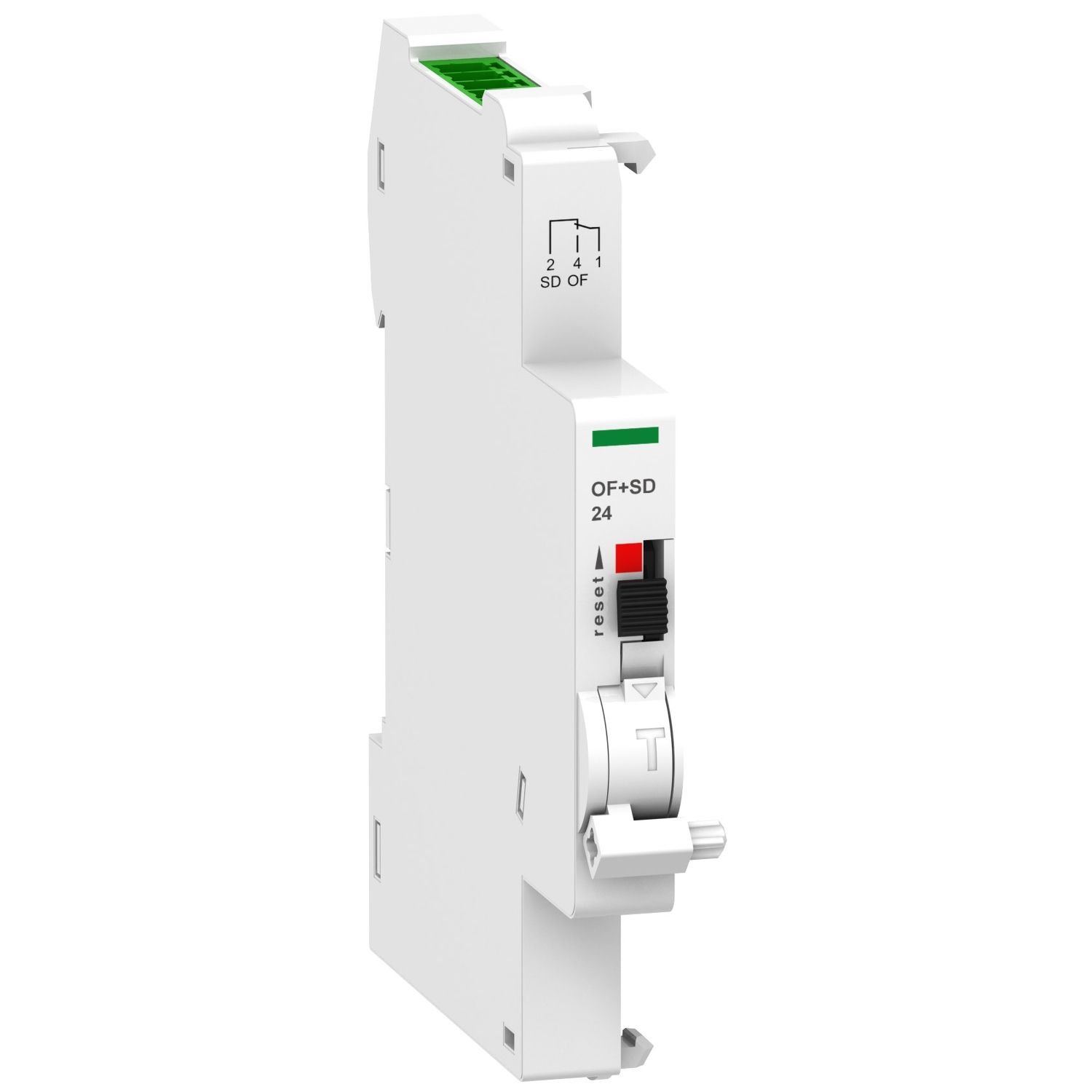

Acti9, Auxiliary contact, Acti9 A9N, OF+SD, 1 NO + 1 NC, 2mA to 100mA, 24VDC, Ti24 connector on top (sold separately)

Be the first to review this product

Manufacturer: Schneider Electric

Declaration of conformity

Product environmental

Brochure

User guide

End of life manual

Product Page Link

Product Data Sheet

This Acti9 OF+SD24 electrical auxiliary is a double open/close or fault indicator contact. It is dedicated to iD, C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC It reports also the electrical fault, actuation of the tripping auxiliary, open or closed position of the associated device informations to a programmable logic controller. Remote indication of position and tripping upon a fault of the associated device. The 2 contacts (1NO + 1NC) can report the signalling information of the associated device to the Acti9 Smartlink. The width in 9mm pitches is 1. It is a ComReady device. There is a Test function on the toggle. The Ue rated operational voltage is 24VDC. The In rated operational current is 2mA (mini) up to 100 mA (maxi). The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1. and IEC/EN 60947-5-4 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	OF+SD 24
Device application	for Smartlink interface
[In] rated current	DC-12 2-100 mA at 24 V, DC +/- 20 %
Signal contacts composition	1 NO + 1 NC
Range	Acti9
Product or component type	OC and fault contact
9 mm pitches	1
Range of product	DT40, DT60, Clario, C60, C120, ITG40, I-NA, ProDis, Librio, DPN, DPN Vigi, ID, C40
Complementary
Product compatibility	C60NA-DC, C120, iDPN, C40, C60PV-DC, ID C40, DT60, ITG40, C120NA-DC, SW60-DC, with PLC, C60, C60H-DC, DPN Vigi, DT40, IDc
Depth	73.5 mm
Market segment	residential, small commercial
Width	9 mm
Colour	white
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60664-1
Local signalling	mechanical indicator
Compatibility code	OF+SD 24
Electrical durability	20000 cycles conforming to IEC 60947-5-4
Mounting mode	fixed
[Ui] rated insulation voltage	500 V conforming to IEC 60664-1
Wire stripping length	10 mm
Net weight	28 g
Connections - terminals	spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - flexible, spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - rigid
Comb busbar and distribution block compatibility	bottom: YES
Range compatibility	Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 SW60-DC, Acti 9 Acti9 ITG40, Acti 9 Acti9 iDPN, Acti 9 Acti9 DPN, Acti 9 Acti9 C120NA-DC, Acti 9 Acti9 IDc, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 C120, Acti 9 Acti9 ID C40, Acti 9 Acti9 C40, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60H-DC, Acti 9 connectors Ti24, Acti 9 Acti9 RCCB-ID, Acti 9 Acti9 DPN Vigi
Mounting support	DIN rail
Height	85.5 mm
Environment
Overvoltage category	III
Quality labels	CE
Relative humidity	93-93 % at 40-40 °C
Ambient air temperature for storage	-40-85 °C
Pollution degree	2 conforming to IEC 60664-1
Tropicalisation	2 conforming to IEC 60947-5-1
Standards	IEC 60947-5-1, IEC 60947-5-4
Ambient air temperature for operation	-25-70 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	2 cm
Package 1 Length	9.5 cm
Package 1 Weight	36 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	8.7 cm
Package 2 Width	10 cm
Package 2 Length	26.5 cm
Package 2 Weight	487 g
Unit Type of Package 3	3
Number of Units in Package 3	108
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	4.871 kg
