Picture of Acti9, Voltage release MNx 220-240Vac dc
SKU:

A9N26969

Acti9, Voltage release MNx 220-240Vac dc

$202.39
Available for Shipping : 03-Dec-2024
Acti9, Voltage release MNx 220-240Vac dc
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet

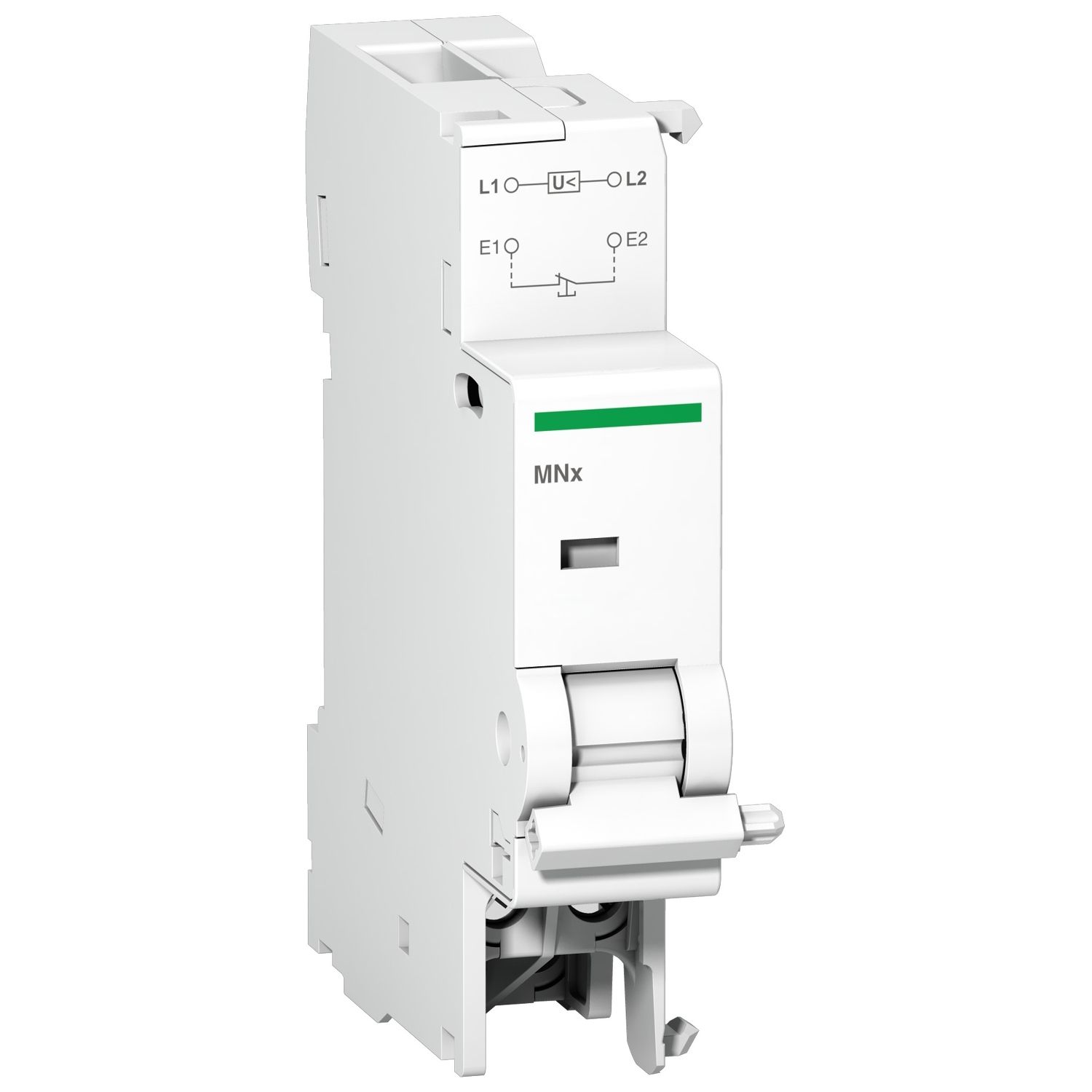

This Acti9 MNx electrical auxiliary is an undervoltage release independent of the supply voltage. It is dedicated to C60, C120, DPN Vigi, iD, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC. A locking push-button control allows the circuit protected to be placed in safety configuration. It provides a fail-safe emergency stop. The product is insentive to the varaition in the control circuit voltage to improve continuty of service. The product trips the associated device by opening of the circuit control. The width in 9mm pitches is 2. There is a red mechanical indicator on the front face of the product to indicate the tripped position of the associated device. The Ue rated operational voltage is 230VAC. The operating frequency is 50Hz or 60Hz. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name Attribute value
Main
Device short name MNx
Product compatibility C120, ID C40, ITG40, C40, DPN Vigi, IDc, DT40, iDPN, DT60, C60
Control type with external feeding
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product C60, C120, DPN Vigi, DPN, Librio, ID, ProDis, Clario
[Uc] control circuit voltage 230 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MNx
Mounting mode fixed
Connections - terminals screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length 9 mm for bottom connection
Net weight 73 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASEFA, KEMA, LCIE, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 83 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.6 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 723 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.02 kg
