A9N26971

Acti9, Voltage release MNx 380-415Vac dc

$202.39
Available for Shipping : 10-Dec-2024
Acti9, Voltage release MNx 380-415Vac dc
Manufacturer: Schneider Electric

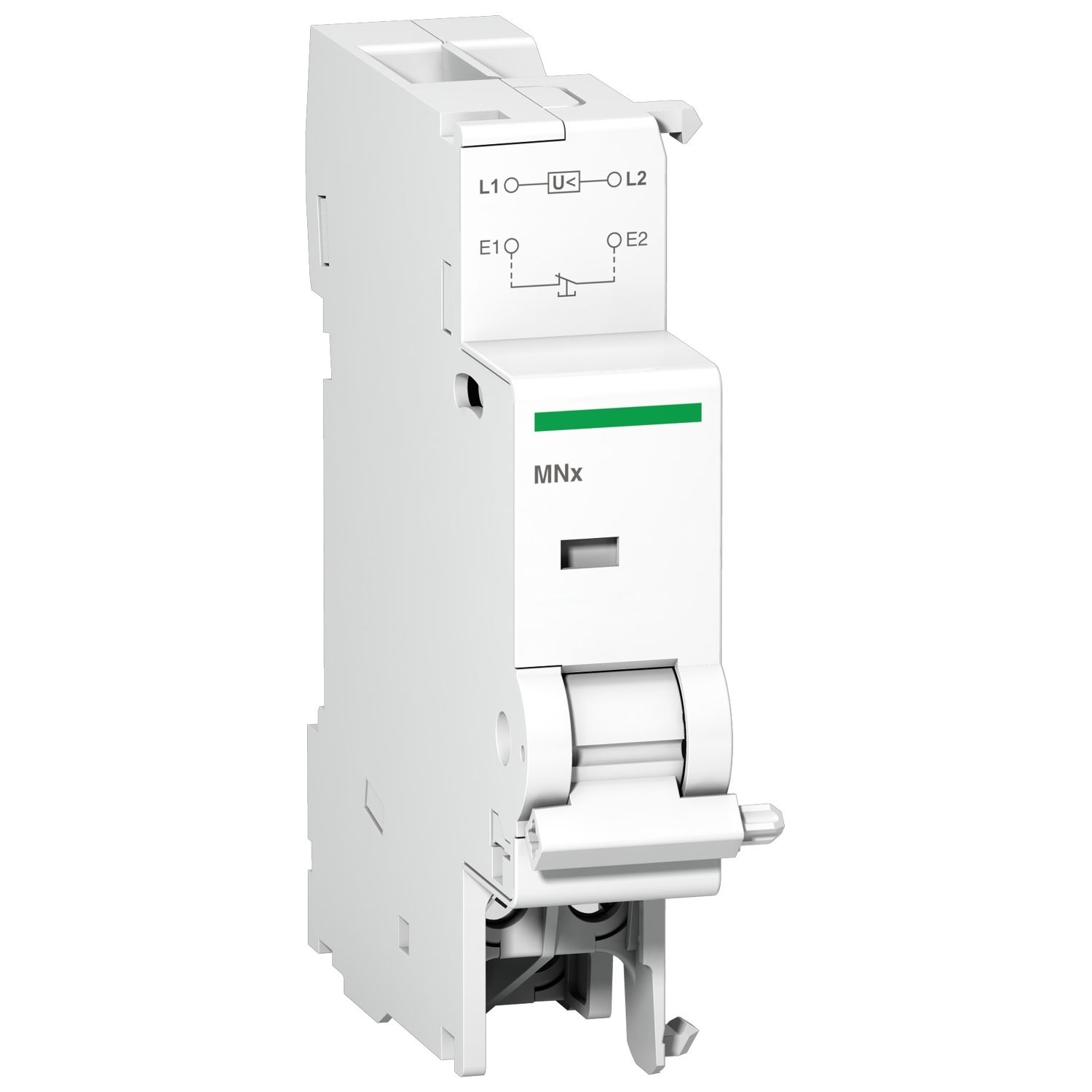

This MNx product is an overvoltage release auxiliary. It is mounting on left side of circuit-breaker. The Uc control circuit voltage is 400VAC with a 50/60Hz frequency. It can be controlled by an external feeding. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Products specifications

Attribute name Attribute value
Main
Device short name MNx
Product compatibility DT60, DPN Vigi, C120, ID C40, DT40, iDPN, C60, ITG40, IDc, C40
Control type with external feeding
Range Acti9
Product or component type undervoltage release
9 mm pitches 2
Range of product ProDis, Librio, DPN Vigi, C60, ID, DPN, Clario, C120
[Uc] control circuit voltage 400 V AC 50/60 Hz
Complementary
Tightening torque 1-1 N.m bottom
Depth 73.5 mm
Market segment residential, small commercial
Width 18 mm
Colour white
Local signalling action indicator
Compatibility code MNx
Mounting mode fixed
Connections - terminals screw clamp terminal (bottom) - 1 cable(s) 0.5-2.5 mm² - rigid, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) - 2 cable(s) 1.5-1.5 mm² - flexible
Wire stripping length 9 mm for bottom connection
Net weight 73 g
Comb busbar and distribution block compatibility top: YES
Range compatibility Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support 35 mm symmetrical DIN rail
Height 82.5 mm
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Tropicalisation 2 conforming to EN/IEC 60947-5-1
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -25-50 °C
Product certifications ASEFA, KEMA, LCIE, ASTA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3 cm
Package 1 Width 8 cm
Package 1 Length 9.5 cm
Package 1 Weight 85 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 8.5 cm
Package 2 Width 10 cm
Package 2 Length 26.5 cm
Package 2 Weight 736 g
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 7.144 kg
