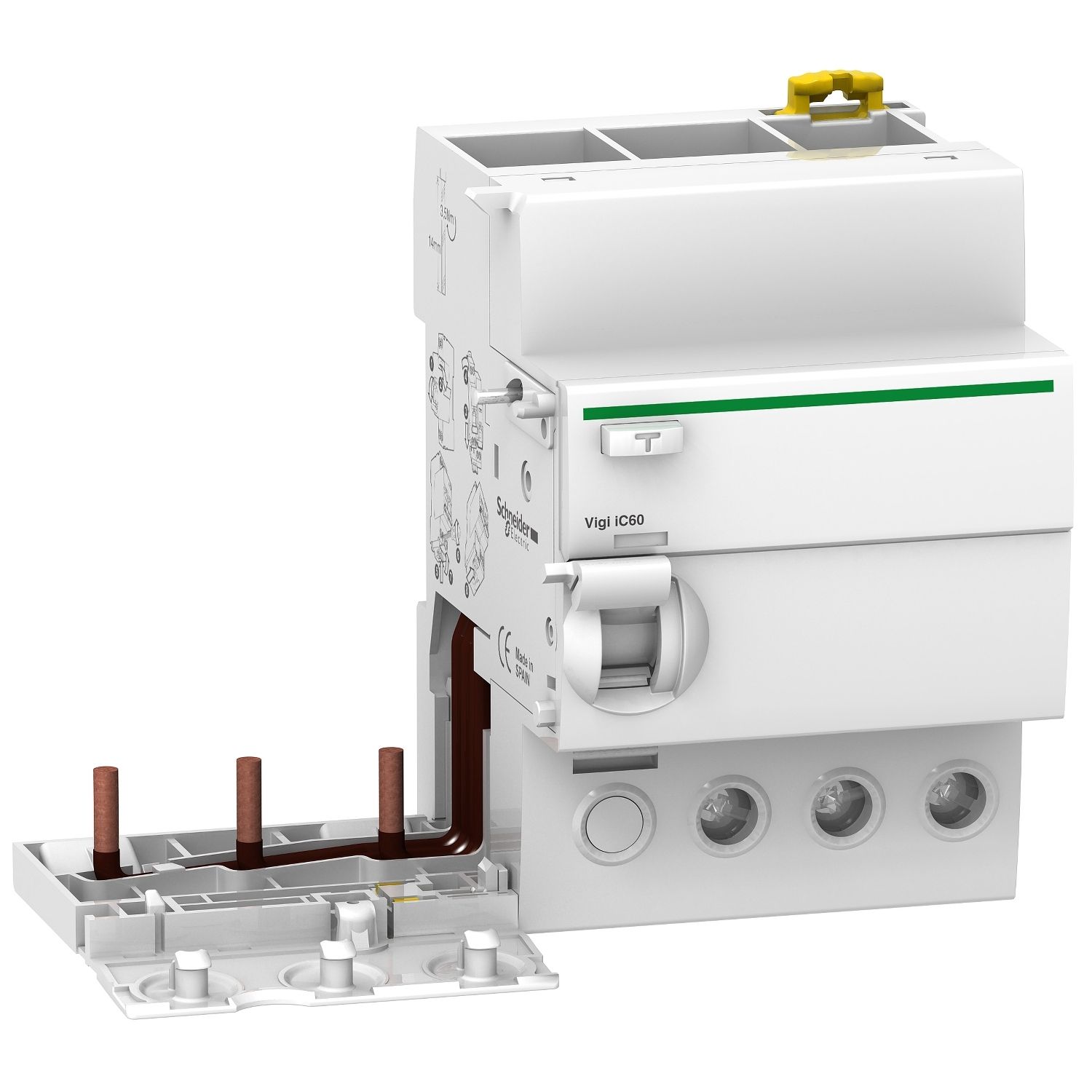

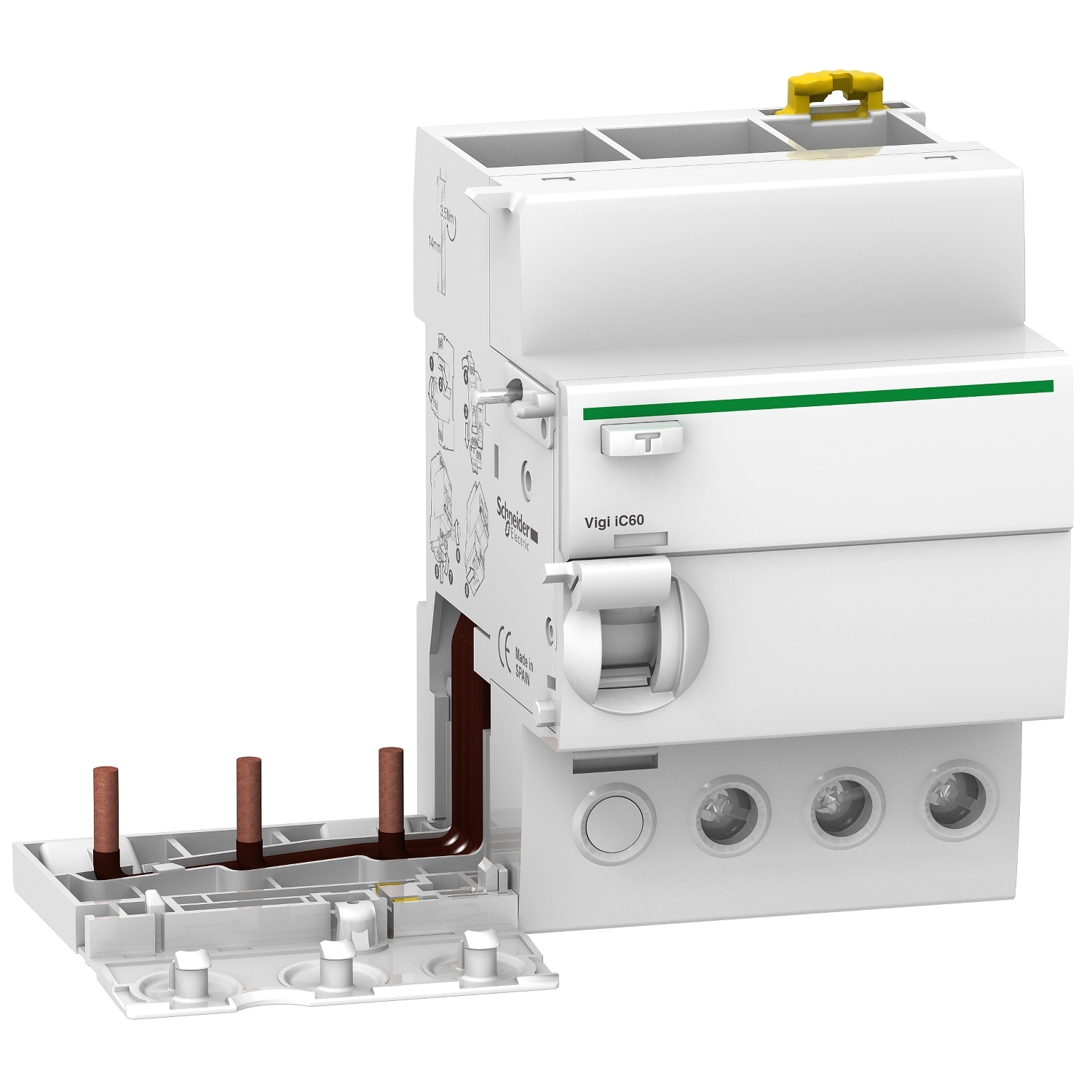

Picture of Acti9, Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type
SKU:

A9V54363

Acti9, Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type

$519.64
Acti9, Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type
  • Protection of persons against electric shock by indirect contact
  • Suitability for isolation according to IEC 61009-1 and IEC 61009-2-1 standards
  • Protection of installations against the risk of fire
  • Easy to install with unified terminal design and wiring indication
  • Compliant with global RoHS/Reach regulation to protect your family and environment
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
Instruction sheet
Product environmental
User guide
Product Page Link
Product Data Sheet
This Acti9 Vigi iC60 is a modular add-on residual current device. It is a 3P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. A VisiTrip window is present to indicate a fault tripping by a red mechanical indicator on the front face. It has to be combined with a iC60 circuit breaker. This product is compliant with IEC 61009-1 and EN 61009-1 standards. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The dimensions are (W) 117mm x (H) 91mm x (D) 73.5mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

Products specifications

Attribute nameAttribute value
Main
Device short nameVigi iC60
RangeActi9
Earth-leakage protection classtype A
Range of productReflex iC60, iC60
[Ue] rated operational voltage230...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1, 230...415 V AC 50/60 Hz conforming to EN/IEC 61009-1
Poles description3P
Earth-leakage protection time delayinstantaneous
Product or component typeadd-on residual current devices
9 mm pitches7
Network typeAC
StandardsEN/IEC 61009-2-1, EN/IEC 61009-1
[In] rated current63 A
Network frequency50/60 Hz
Complementary
Product compatibilitysingle terminal
Tightening torque3.5-3.5 N.m bottom
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Width117 mm
Mounting modeclip-on
Residual current tripping technologyvoltage independent
Electrical connection to mcbby screws
Wire stripping length14 mm for bottom connection
Comb busbar and distribution block compatibilitybottom: YES
Connections - terminalstunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end, tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end, tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end
Height91 mm
Depth73.5 mm
Market segmentsmall commercial
Local signallingtrip indicator
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to IEC 60947-2
Net weight0.21 kg
Device location in systemoutgoer
Range compatibilityActi 9 Acti9 Reflex iC60, Acti 9 Acti9 iC60
Mounting supportDIN rail
Environment
Ambient air temperature for storage-40-85 °C
Pollution degree3 conforming to IEC 60947-2
IP degree of protectionIP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Electromagnetic compatibility8/20 µs impulse withstand, 250 A conforming to IEC 61009-1
Ambient air temperature for operation-25-60 °C
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.500 cm
Package 1 Width11.500 cm
Package 1 Length14.200 cm
Package 1 Weight226.000 g
Unit Type of Package 22
Number of Units in Package 215
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight3.913 kg

Related products

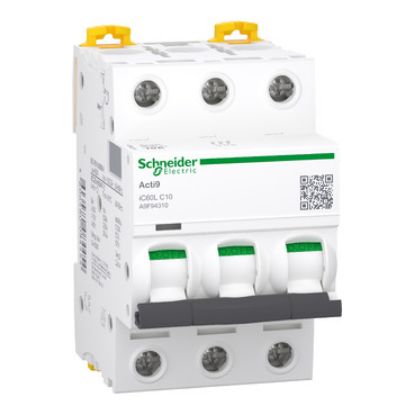

Picture of Miniature circuit breaker (MCB), Acti9 iC60L, 3P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2)
